Гидронасос (основной насос, 2/2) фронтального погрузчика колесного Hyundai HL770-7
Гидронасос (основной насос, 2/2) фронтального погрузчика колесного Hyundai HL770-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4020
Наименование:MAIN PUMP(2/2)
Версия:2003.12.31 REV.1

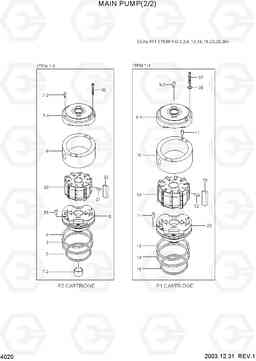

MAIN PUMP(2/2) HL770-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| *-2 | XJDF-00077 | cartr сборе m25 CW (P2) | 1 |
S24-40195-5
|
|
| * | @ | MAIN PUMP | 1 |
SEE 4010
|
|
| *-1 | XJDF-00076 | P1 CARTRIDGE(B38) | 1 |
S24-76979-5
|
|
| 10 | XJDF-00065 | CAMRING | 1 |
034-67154
|
|
| 11 | @ | PIN-DOWEL | 2 | ||
| 12 | @ | PIN-VANE HOLDOUT | 12 | ||
| 23 | XJDF-00070 | PORT PLATE-PRESSURE | 1 |
034-67479
|
|
| 24 | @ | ROTOR ASSY | 1 | ||
| 25 | @ | VANE | 12 | ||
| 29 | @ | PIN-LOCK | 1 | ||
| 30 | @ | ROTOR ASSY | 1 | ||
| 31 | @ | PIN-VANE HOLDOUT | 10 | ||
| 32 | @ | VANE | 10 | ||
| 33 | @ | PIN-DOWEL | 2 | ||
| 36 | @ | SCREW | 2 | ||
| 37 | @ | SCREW | 2 | ||
| 38 | @ | WASHER-LOCK | 2 | ||
| 5 | XJDF-00080 | PORT PLATE-PRESSURE | 1 |
034-59773
|
|
| 6 | XJDF-00062 | CAMRING | 1 |
034-59209
|
|
| 7 | XJDF-00085 | REAR PLATE ASSY | 1 |
S24-10809
|
|
| 7-1 | @ | PORT PLATE-REAR | 1 | ||
| 7-2 | @ | BUSHING | 1 | ||
| 7-3 | @ | DOWEL PIN | 1 | ||
| 9 | XJDF-00084 | REAR PLATE ASSY | 1 |
S24-76916
|
|
| 9-1 | @ | PORT PLATE-REAR | 1 | ||
| 9-2 | @ | DOWEL PIN | 1 | ||
| K | XJDF-00040 | Ремкомплект / комплект уплотнений (ремкомплект) | 1 |
S24-10170-5
|
|
| K13 | @ | BACK-UP RING | 1 | ||
| K14 | @ | SEAL-SECTION | 1 | ||
| K15 | @ | SEAL-SECTION | 1 | ||
| K2 | @ | SEAL-SECTION | 1 | ||
| K3 | @ | SEAL SECTION | 1 | ||
| K4 | @ | BACK-UP RING | 1 | ||
| N | @ | NOT INDIVIDUALLY SUPPLIED | AR |
