Каталог запчастей
-
Hyundai
-
HL770-7A
- REMOTE CONTROL LEVER(2-SPOOL)

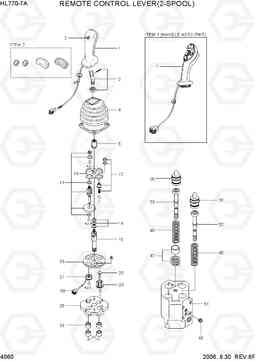

REMOTE CONTROL LEVER(2-SPOOL) фронтального погрузчика колесного Hyundai HL770-7A
REMOTE CONTROL LEVER(2-SPOOL) фронтального погрузчика колесного Hyundai HL770-7A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4060
Наименование:REMOTE CONTROL LEVER(2-SPOOL)
Версия:2006. 6.30 REV.6F
REMOTE CONTROL LEVER(2-SPOOL) HL770-7A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 31LH-10200 | RCV LEVER-2 SPOOL | 1 |
STD
|
|
| * | 31LB-10300 | RCV LEVER-2 SPOOL | 1 |
FNR RCV
|
|
| 1 | ZFAB-00070 | HANDLE KIT(EC2000) | 1 |
STD
|
|
| 1 | ZFAB-00071 | HANDLE (EC4000) | 1 |
FNR RCV
|
|
| 10 | ZFAB-00042 | Кронштейн | 1 | ||
| 11 | ZFAB-00043 | DETENT KIT | 3 | ||
| 12 | ZFAB-00044 | PLUNGER KIT | 1 | ||
| 14 | ZFAB-00045 | SHIM SET(0.1,0.2,0.5) | 1 | ||
| 15 | ZFAB-00046 | CARDAN | 1 | ||
| 2 | ZFAB-00038 | PUSH BUTTON KIT | 1 |
STD ONLY
|
|
| 20 | ZFAB-00047 | Фланец | 1 | ||
| 21 | ZFAB-00048 | SOLENOID COMPLETE | 3 | ||
| 22 | ZFAB-00049 | PLUNGER KIT | 1 | ||
| 23 | ZFAB-00050 | PLUNGER GUIDE | 1 | ||
| 25 | ZFAB-00051 | BRACKET-ELECTRIC | 1 | ||
| 26 | ZFAB-00052 | BUSHING SET | 1 | ||
| 3 | ZFAB-00039 | LEVER KIT | 1 | ||
| 30 | ZFAB-00053 | PLUNGER KIT | 4 | ||
| 32 | ZFAB-00076 | REGULATING UNIT | 1 | ||
| 33 | ZFAB-00077 | REGULATING UNIT | 1 |
PORT 1
|
|
| 33 | ZFAB-00078 | REGULATING UNIT | 2 |
PORT 3,4
|
|
| 4 | ZFAB-00040 | RUBBER BOOT | 1 | ||
| 40 | ZFAB-00056 | комплект пружин возврата | 4 | ||
| 42 | ZFAB-00057 | PREFEEL POINT KIT | 3 | ||
| 45 | ZFAB-00058 | PLUG SET | 1 |
2-SPOOL ONLY
|
|
| 5 | ZFAB-00041 | NUT-LOCKING | 1 | ||
| 50 | ZFAB-00087 | AMP CONNECTOR | 3 | ||
| 51 | @ | BODY | 1 | ||
| N | @ | NOT INDIVIDUALLY SUPPLIED | AR |
