BRAKE VALVE(DUAL) фронтального погрузчика колесного Hyundai HL770-9A
BRAKE VALVE(DUAL) фронтального погрузчика колесного Hyundai HL770-9A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4105
Наименование:BRAKE VALVE(DUAL)
Версия:2014. 6.30 REV.14F

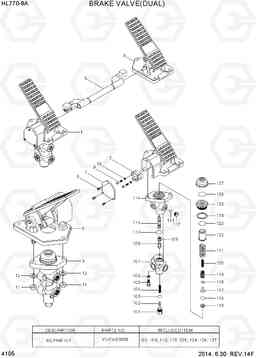

BRAKE VALVE(DUAL) HL770-9A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT SUPPLIED PARTS | AR | ||
| N | @ | NOT SUPPLIED PARTS | AR | ||
| * | 31LM-40030 | Тормозной клапан двойного | 1 | ||
| * | 31LM-40031 | Кран тормозной 2 | 1 | ||
| 10 | @ | WASHER | 1 | ||
| 101 | @ | END PLUG | 1 | ||
| 102 | @ | RETAINER | 1 | ||
| 104 | @ | SPRING | 1 | ||
| 105 | @ | CAP SCREW | 2 | ||
| 106 | @ | WASHER | 1 | ||
| 107 | @ | HOUSING | 1 | ||
| 108 | @ | SPOOL | 1 | ||
| 11 | @ | NUT | 1 | ||
| 111 | @ | SPOOL | 1 | ||
| 112 | @ | PLUG | 1 | ||
| 114 | @ | HOUSING | 1 | ||
| 115 | @ | SPACER | 1 | ||
| 116 | @ | RETAINING RING | 1 | ||
| 117 | @ | RETAINER | 1 | ||
| 118 | @ | SHIM | 1 | ||
| 119 | @ | SPRING | 1 | ||
| 12 | @ | WASHER | 1 | ||
| 120 | @ | SPRING | 1 | ||
| 121 | @ | SPRING | 1 | ||
| 122 | @ | PISTON | 1 | ||
| 125 | @ | RETAINER | 1 | ||
| 3 | YUCV-00004 | Клапан в сборе | 1 | ||
| 4 | YUCV-00005 | Левая педаль и на основе ASY | 1 | ||
| 5 | YUCV-00006 | Правая педаль и на основе сборе | 1 | ||
| 6 | YUCV-00007 | Рычаг в сборе | 1 | ||
| 6 | YUCV-00014 | LEVER ASSY | 1 | ||
| 7 | @ | COVER | 1 | ||
| 8 | @ | SCREW | 1 | ||
| 9 | @ | CAP SCREW | 1 | ||
| K | YUCV-00008 | Ремкомплект | 1 |
SEE ILLUST
|
|
| K | YUCV-00008 | Ремкомплект | 1 |
SEE ILLUST
|
|
| K103 | @ | O-RING | 1 | ||
| K109 | @ | O-RING | 1 | ||
| K110 | @ | O-RING | 1 | ||
| K113 | @ | O-RING | 1 | ||
| K123 | @ | RING | 1 | ||
| K124 | @ | O-RING | 1 | ||
| K126 | @ | CUP | 1 | ||
| K127 | @ | BOOT | 1 | ||
| N1 | YUCV-00009 | Педаль тандем клапан | 1 | ||
| N2 | YUCV-00011 | ANGLE SENSOR | 1 |
