REMOTE CONTROL LEVER(1/3) фронтального погрузчика колесного Hyundai HL770(-#1000)
REMOTE CONTROL LEVER(1/3) фронтального погрузчика колесного Hyundai HL770(-#1000) со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2110
Наименование:REMOTE CONTROL LEVER(1/3)
Версия:

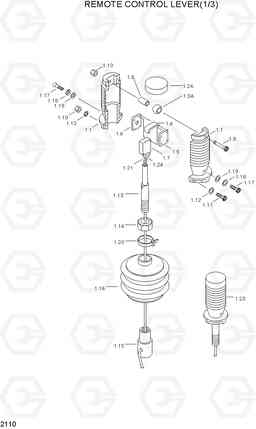

REMOTE CONTROL LEVER(1/3) HL770(-#1000)
Поз. | Код | Наименование | Кол | Прим. | |
---|---|---|---|---|---|
@ | NOT INDIVIDUALLY SUPPLIED | 1 | |||
* | 31L1-1002 | RCV LEVER | 1 | ||
1.1 | @ | HANDLE-HALF | 2 | ||
1.10 | @ | NUT-SELF LOCKING | 3 | ||
1.11 | @ | SCREW | 2 | ||
1.12 | @ | WASHER | 4 | ||
1.13 | @ | LEVER-HOLLOW | 1 | ||
1.14 | @ | NUT | 1 | ||
1.15 | 19873000 | Гайка | 1 | ||
1.16 | @ | BELLOWS | 1 | ||
1.17 | @ | SCREW | 2 | ||
1.18 | @ | WASHER-LOCK | 2 | ||
1.19 | @ | WASHER-BELLEVILLE | 2 | ||
1.20 | @ | CLAMP-FITTING | 2 | ||
1.21 | @ | THIMBLE | 2 | ||
1.23 | 25643700 | HANDLE-COMPLETE | 1 | ||
1.24 | @ | CABLE | 1 | ||
1.2A | 18866100 | CAP-INSULATION | 1 | ||
1.3A | @ | PUSHER | 1 | ||
1.4 | @ | ROCKER ARM | 1 | ||
1.5 | @ | SPACER | 1 | ||
1.6 | @ | SPACER | 1 | ||
1.7 | @ | SWITCH-CONTACT | 1 | ||
1.8 | @ | SPACER | 1 | ||
1.9 | @ | SPACER | 1 |
