Код подсистемы:2111
Наименование:REMOTE CONTROL LEVER(2/3)
Версия:

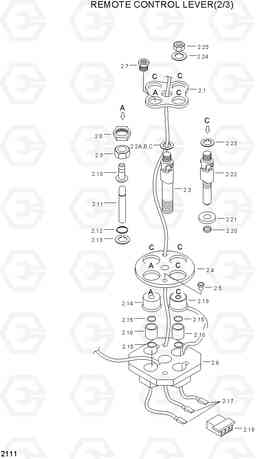

REMOTE CONTROL LEVER(2/3) HL770(-#1000)
Поз. | Код | Наименование | Кол | Прим. | |
---|---|---|---|---|---|
@ | NOT INDIVIDUALLY SUPPLIED | 1 | |||
* | 34L1-1002 | RCV | 1 | ||
2.1 | 19954400 | Кронштейн | 1 | ||
2.10 | @ | SCREW-PRESS | 1 | ||
2.11 | @ | PLUNGER | 1 | ||
2.12 | @ | CIRCLIP | 1 | ||
2.13 | @ | SHIM | 1 | ||
2.14 | @ | GUIDE | 1 | ||
2.15 | @ | O-RING | 2 | ||
2.16 | @ | BUSHING | 1 | ||
2.17 | @ | BLADE-CONNECTOR | 15 | ||
2.18 | @ | JUNCTION BOX | 1 | ||
2.19 | @ | SOLENOID-COMPLET | 1 | ||
2.20 | @ | RING-SPRING | 1 | ||
2.21 | @ | ARMATURE | 1 | ||
2.22 | @ | JOINT | 1 | ||
2.23 | @ | WASHER-FRICTION | 1 | ||
2.24 | @ | WASHER-FRICTION | 1 | ||
2.25 | @ | NUT-SELF LOCKING | 1 | ||
2.2A | 19781300 | Прокладка | 1 | ||
2.2B | 19781400 | Прокладка | 1 | ||
2.2C | 19781500 | Прокладка | 1 | ||
2.3 | @ | JOINT | 1 | ||
2.4 | @ | FLANGE | 1 | ||
2.5 | @ | PLUG | 1 | ||
2.6 | @ | BRACKET-ELECTRIC | 1 | ||
2.7 | @ | SCREW | 1 | ||
2.8 | @ | NUT-COUNTER | 1 | ||
2.9 | @ | NUT | 1 |
