REMOTE CONTROL LEVER(3/3) фронтального погрузчика колесного Hyundai HL770(-#1000)
REMOTE CONTROL LEVER(3/3) фронтального погрузчика колесного Hyundai HL770(-#1000) со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2112
Наименование:REMOTE CONTROL LEVER(3/3)
Версия:

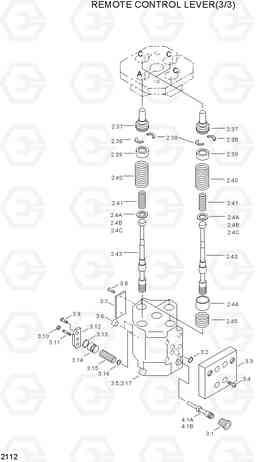

REMOTE CONTROL LEVER(3/3) HL770(-#1000)
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| @ | NOT INDIVIDUALLY SUPPLIED | 1 | |||
| * | 31L1-1002 | RCV LEVER | 1 | ||
| 2.37 | 25754100 | PLUNGER-COMPLETE | 4 | ||
| 2.38 | @ | WASHER 1/2" | 8 | ||
| 2.39 | @ | RETAINER-SPRING | 4 | ||
| 2.41 | 19893800 | Пружина | 4 | ||
| 2.43 | @ | SPOOL | 4 | ||
| 2.44 | @ | SOCKET | 4 | ||
| 2.45 | 19711200 | Пружина | 4 | ||
| 2.4A | @ | SHIM | 4 | ||
| 2.4B | @ | SHIM | 4 | ||
| 2.4C | @ | SHIM | 4 | ||
| 3.1 | 11260609 | Пробка (заглушка) | 1 | ||
| 3.10 | @ | NUT | 1 | ||
| 3.11 | @ | SCREW | 1 | ||
| 3.12 | @ | PLATE | 1 | ||
| 3.13 | @ | O-RING | 1 | ||
| 3.14 | @ | PISTON | 1 | ||
| 3.15 | @ | SPRING | 1 | ||
| 3.16 | @ | WASHER | 1 | ||
| 3.17 | @ | HOUSING | 1 | ||
| 3.2 | @ | O-RING | 2 | ||
| 3.3 | 19974300 | PLATE-INTERMEDIATE | 1 | ||
| 3.4 | @ | SCREW | 4 | ||
| 3.5 | @ | HOUSING | 1 | ||
| 3.6 | @ | PLUG | 4 | ||
| 3.7 | @ | PLATE-IDENTIFICATION | 1 | ||
| 3.8 | @ | PIN | 2 | ||
| 3.9 | @ | SCREW | 2 | ||
| 4.1A | @ | SPOOL | 1 | ||
| 4.2A | @ | SPOOL | 1 | ||
| N2.40 | 19335300 | Пружина | 4 |
