DECALS(ENGLISH) фронтального погрузчика колесного Hyundai HL770(-#1000)
DECALS(ENGLISH) фронтального погрузчика колесного Hyundai HL770(-#1000) со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7020
Наименование:DECALS(ENGLISH)
Версия:'96.10.14 REV.3

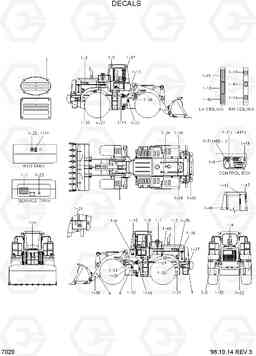

DECALS(ENGLISH) HL770(-#1000)
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 94L1-00024 | DECAL(A)-KIT | 1 |
ENGLISH
|
|
| 1 | 94L1-00025 | DECAL(A)-KIT | 1 |
ENGLISH
|
|
| 1 | 94L1-00026 | DECAL(A)-KIT | 1 |
ENGLISH
|
|
| 1 | 94L1-00027 | DECAL(A)-KIT | 1 |
ENGLISH
|
|
| 1 | 94L1-00230 | DECAL(A)-KIT | 1 |
EMISSIONIZED
|
|
| 1-1 | 94L1-00030 | S/CHARACTER(A) | 2 | ||
| 1-10 | 91E1-23730 | NOISE LEVEL-LWA | 1 | ||
| 1-11 | 94L1-00150 | GREASE(A) | 1 | ||
| 1-11 | 94L1-00151 | GREASE(A) | 1 | ||
| 1-11 | 94L1-00152 | GREASE(A) | 1 | ||
| 1-12 | 94L1-00160 | GREASE(B) | 1 | ||
| 1-12 | 94L1-00161 | GREASE(B) | 1 | ||
| 1-13 | 94L1-00540 | GREASE(C) | 1 | ||
| 1-14 | 94L3-00152 | HYD OIL LEVEL | 1 | ||
| 1-15 | 94L3-00161 | ENGINE AIR VENT-BRAKE | 1 | ||
| 1-16 | 94L3-00172 | SAFETY/MAX H/REACH | 1 | ||
| 1-17 | 94L3-00190 | ANGLE OF BUCKET | 1 | ||
| 1-18 | 94L3-00231 | SEAT BELT | 1 | ||
| 1-19 | 94L1-00141 | SPECIFICATION | 1 | ||
| 1-19 | 94L1-00220 | SPECIFICATION | 1 |
EMISSIONIZED
|
|
| 1-2 | 94L1-00040 | S/CHARACTER(B)-LH | 1 | ||
| 1-20 | 94L3-00251 | FUELING | 1 | ||
| 1-21 | 94L3-00261 | REMOTE DRAIN | 1 | ||
| 1-22 | 94L3-00271 | STEERING | 2 | ||
| 1-23 | 94L3-00280 | AIR TANK | 1 | ||
| 1-24 | 91E1-14110 | NAME PLATE | 1 | ||
| 1-25 | 91E1-25020 | HYD OIL LUB | 1 | ||
| 1-26 | 91E1-26010 | ELECTROLYTE | 2 | ||
| 1-27 | 91E1-26020 | AIR CLEANER | 1 | ||
| 1-28 | 91E1-26030 | Крышка радиатора | 1 | ||
| 1-29 | 91E1-26040 | ANTIFREEZE | 1 | ||
| 1-3 | 94L1-00050 | S/CHARACTER(B)-RH | 1 | ||
| 1-30 | 94L3-00420 | SLINGING IDEOGRAM | 4 | ||
| 1-31 | 94L3-00440 | SAFETY IDEOGRAM | 1 | ||
| 1-31 | 94L3-00490 | SAFETY IDEOGRAM | 1 | ||
| 1-32 | 94L3-00391 | TRAFFIC RULES-LH | 1 | ||
| 1-33 | 94L3-00401 | TRAFFIC RULES-RH | 1 | ||
| 1-34 | 91E1-26051 | DECAL-EXHAUST | 2 | ||
| 1-35 | 94L3-00350 | SIDE DOOR(A) | 2 | ||
| 1-36 | 94L3-00360 | SIDE DOOR(B) | 2 | ||
| 1-37 | 94L3-00370 | BATTERY BOX COVER | 2 | ||
| 1-38 | 94L3-00380 | BUCKET SUPPORTER | 2 | ||
| 1-39 | 94L3-00410 | STEERING WARNING | 2 | ||
| 1-4 | 94L1-00060 | TRADE MARK(RAD.DOOR) | 1 | ||
| 1-40 | 94L3-00181 | ROPS CAB | 1 | ||
| 1-41 | 94L3-00292 | ROPS S/NO | 1 | ||
| 1-42 | 91E1-28220 | LOGO-FIRE | 1 | ||
| 1-43 | 91E1-28230 | LOGO-HAMMER | 1 | ||
| 1-44 | 91E1-28290 | SERVICE SOCKET | 1 | ||
| 1-45 | 94L1-00200 | HYD PRESSURE | 1 | ||
| 1-46 | 94L3-00460 | MUD GUARD | 2 | ||
| 1-47 | 94L3-00470 | EME ESCAPE | 2 | ||
| 1-5 | 94L3-00060 | TRADE MARK(CAB-UP) | 2 | ||
| 1-6 | 94L3-00070 | TRADE MARK(CAB-FR) | 1 | ||
| 1-7 | 94L1-00071 | SERVICE & LUB.INSTRUCT | 1 | ||
| 1-8 | 94L3-00091 | CONTROL IDEOGRAM | 1 | ||
| 1-9 | 91E1-23180 | NOISE LEVEL-LPA | 1 | ||
| 2 | E171-1246 | RIVET | 8 | ||
| 3 | E191-1171 | STEP TREAD | 22 | ||
| 3 | 91E1-26300 | Наклейка шаг протектора | 22 | ||
| 4 | 21EK-10150 | Светоотражатель (отражатель) боковой | 6 | ||
| 5 | 51EK-52990 | Светоотражатель (отражатель) задний | 2 | ||
| 6 | S403-052002 | Плоская шайба | 2 |
