RCV LEVER(1/3, 2-SPOOL, -#0010) фронтального погрузчика колесного Hyundai HL780-3
RCV LEVER(1/3, 2-SPOOL, -#0010) фронтального погрузчика колесного Hyundai HL780-3 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2130
Наименование:RCV LEVER(1/3, 2-SPOOL, -#0010)
Версия:

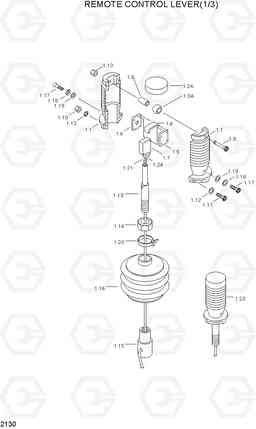

RCV LEVER(1/3, 2-SPOOL, -#0010) HL780-3
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| @ | NOT INDIVIDUALLY SUPPLIED | 1 | |||
| * | 31L1-1002 | RCV | 1 | ||
| 1.1 | @ | HANDLE-HALF | 2 | ||
| 1.10 | @ | NUT-SELF LOCKING | 3 | ||
| 1.11 | @ | SCREW | 2 | ||
| 1.12 | @ | WASHER | 4 | ||
| 1.13 | @ | LEVER-HOLLOW | 1 | ||
| 1.14 | @ | NUT | 1 | ||
| 1.15 | 19873000 | Гайка | 1 | ||
| 1.16 | @ | BELLOWS | 1 | ||
| 1.17 | @ | SCREW | 2 | ||
| 1.18 | @ | WASHER-LOCK | 2 | ||
| 1.19 | @ | WASHER-BELLEVILLE | 2 | ||
| 1.20 | @ | CLAMP-FITTING | 2 | ||
| 1.21 | @ | THIMBLE | 2 | ||
| 1.23 | 25643700 | HANDLE-COMPLETE | 1 | ||
| 1.24 | @ | CABLE | 1 | ||
| 1.2A | 18866100 | CAP-INSULATION | 1 | ||
| 1.3A | @ | PUSHER | 1 | ||
| 1.4 | @ | ROCKER ARM | 1 | ||
| 1.5 | @ | SPACER | 1 | ||
| 1.6 | @ | SPACER | 1 | ||
| 1.7 | @ | SWITCH-CONTACT | 1 | ||
| 1.8 | @ | SPACER | 1 | ||
| 1.9 | @ | SPACER | 1 |
