Каталог запчастей
-
Hyundai
-
HL780-3A
- DECALS(KOREAN)
DECALS(KOREAN) фронтального погрузчика колесного Hyundai HL780-3A
DECALS(KOREAN) фронтального погрузчика колесного Hyundai HL780-3A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:8021
Наименование:DECALS(KOREAN)
Версия:2006. 5.31 REV.6E

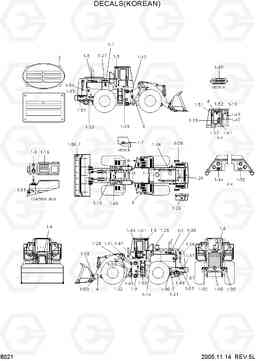

DECALS(KOREAN) HL780-3A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 91L6-90800 | DECAL(A) KIT | 1 | ||
| 1 | 91L6-90801 | DECAL(A) KIT | 1 | ||
| 1 | 91L6-90802 | DECAL(A) KIT | 1 | ||
| 1 | 91L6-90804 | DECAL(A) KIT | 1 | ||
| 1 | 91L6-90805 | DECAL(A) KIT | 1 | ||
| 1 | 91L6-90806 | DECAL(A) KIT | 1 | ||
| 1-1 | 91L6-00020 | SIDE CHARACTER(A) | 1 | ||
| 1-10 | 91L6-00280 | OVERALL WIDTH | 2 | ||
| 1-11 | 91L6-00230 | GREASE(A) | 1 | ||
| 1-12 | 91L6-00240 | GREASE(B) | 1 | ||
| 1-13 | 91L6-00250 | GREASE(C) | 1 | ||
| 1-14 | 94L3-00601 | HYD OIL LEVEL | 1 | ||
| 1-15 | 94L3-00920 | ENG/AIR VENT/BRAKE | 1 | ||
| 1-16 | 94L3-00940 | SAFETY/MAX H/REACH | 1 | ||
| 1-17 | 94L3-00560 | ANGLE OF BUCKET | 1 | ||
| 1-19 | 91L6-00530 | SPEC SHEET | 1 | ||
| 1-2 | 91L6-00470 | SIDE CHARACTER(B)-LH | 1 | ||
| 1-20 | 94L3-00611 | FUELING | 1 | ||
| 1-21 | 91L6-00260 | REMOTE DRAIN | 1 | ||
| 1-22 | 94L3-00581 | STEERING | 2 | ||
| 1-24 | 91E1-14110 | NAME PLATE | 1 | ||
| 1-25 | 91E1-15020 | HYD OIL LUB | 1 | ||
| 1-26 | 91E1-16010 | ELECTROLYTE | 2 | ||
| 1-27 | 91E1-16020 | AIR CLEANER | 1 | ||
| 1-28 | 91E1-16030 | Крышка радиатора | 1 | ||
| 1-29 | 91E1-16040 | ANTIFREEZE | 1 | ||
| 1-3 | 91L6-00480 | SIDE CHARACTER(B)-RH | 1 | ||
| 1-30 | 94L3-00420 | SLINGING IDEOGRAM | 4 | ||
| 1-31 | 94L3-00860 | SAFETY IDEOGRAM | 1 | ||
| 1-32 | 91L6-00310 | TRAFFIC RULES-LH | 1 | ||
| 1-33 | 91L6-00320 | TRAFFIC RULES-RH | 1 | ||
| 1-34 | 91L7-00220 | EXHAUST PIPE | 1 | ||
| 1-35 | 94L3-00690 | SIDE DOOR(A) | 2 | ||
| 1-36 | 94L3-00700 | SIDE DOOR(B) | 2 | ||
| 1-37 | 94L3-00711 | BATTERY BOX COVER | 2 | ||
| 1-38 | 94L3-00720 | BUCKET SUPPORTER | 2 | ||
| 1-39 | 94L3-00410 | STEERING WARNING | 2 | ||
| 1-4 | 94L4-00640 | TRADE MARK-RAD DOOR | 1 | ||
| 1-40 | 94L3-00930 | ROPS CAB | 1 | ||
| 1-41 | 91L6-00350 | ROPS S/NO | 1 | ||
| 1-41 | 91LB-01280 | переводная картинка ROPS пластина | 1 | ||
| 1-42 | 94L3-01010 | LOGO-FIRE | 1 | ||
| 1-43 | 94L3-01000 | LOGO-HAMMER | 1 | ||
| 1-44 | 94L3-00760 | SERVICE SOCKET | 1 | ||
| 1-45 | 21L7-00240 | FUSE BOX | 1 | ||
| 1-46 | 91E1-18080 | Наклейка общественного разрешение | 1 | ||
| 1-47 | 91L6-00340 | TRANSPORTING | 1 | ||
| 1-48 | 94L3-01510 | HIGH PRESSURE HOSE | 3 | ||
| 1-49 | 91L7-00190 | DRAIN-REMOTE | 1 | ||
| 1-5 | 94L3-01050 | TRADE MARK-CAB,UP | 2 | ||
| 1-50 | 94L3-01520 | QUICK COUPLER | 2 | ||
| 1-51 | 94L3-01530 | ROLL OVER | 1 | ||
| 1-52 | 94L3-01540 | BEFORE LEAVING SEAT | 1 | ||
| 1-53 | 94L3-01550 | FALLING | 4 | ||
| 1-54 | 94L3-01560 | START MOTOR | 1 | ||
| 1-55 | 94L3-01570 | PARKING BRAKE | 1 | ||
| 1-56 | 91N6-06410 | табличка ведро | 1 | ||
| 1-57 | 91LB-06350 | Наклейка электросварка | 2 | ||
| 1-58 | 91LH-01210 | Наклейка смазка центр | 1 | ||
| 1-59 | 91N8-07390 | DECAL-TURBOCHARGER | 1 | ||
| 1-6 | 94L3-01060 | TRADE MARK-CAB,FR | 1 | ||
| 1-7 | 91L6-00520 | SERVICE & LUB INST | 1 | ||
| 1-7 | 91L6-00521 | SERVICE & LUB INST | 1 | ||
| 1-8 | 94L3-00091 | CONTROL IDEOGRAM | 1 | ||
| 1-8 | 94L3-01410 | CONTROL IDEOGRAM | 1 |
2-LEVER RCV
|
|
| 1-9 | 94L1-00590 | HYD PRESSURE | 1 | ||
| 2 | E171-1246 | RIVET | 8 | ||
| 3 | 91E1-26300 | Наклейка шаг протектора | 20 | ||
| 4 | 21EK-10150 | Светоотражатель (отражатель) боковой | 8 | ||
| 5 | 94L1-00660 | DECAL-SHUT OFF VALVE | 1 |
RIDE CONTROL
|
|
| 6 | 91E1-27110 | Наклейка л / выбросов ENG | 1 |
LOW NOISE
|
|
| 7 | 91N6-06420 | металл гвоздь | 4 | ||
| 8 | 91L6-16160 | EMISSION CERTIFICATION | 1 |
