CAB DOOR(OPTION) погрузчика на сжиженном газе Hyundai HLF20/25/30II
CAB DOOR(OPTION) погрузчика на сжиженном газе Hyundai HLF20/25/30II со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6080
Наименование:CAB DOOR(OPTION)
Версия:2004. 4.30 REV.5

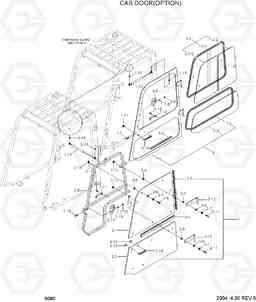

CAB DOOR(OPTION) HLF20/25/30II
Поз. | Код | Наименование | Кол | Прим. | |
---|---|---|---|---|---|
* | @ | CAB DOOR | 1 |
HLF20-2
|
|
* | @ | CAB DOOR | 1 |
HLF25-2
|
|
* | @ | CAB DOOR | 1 |
HLF30-2
|
|
1 | F12901420 | DOOR ASSY-RH | 1 |
OPT 1
|
|
1-1 | SCA131000 | DOOR WA | 1 | ||
1-10 | DJ-LA-087 | HANDLE-OUT | 1 | ||
1-11 | @ | GROMMET | 2 | ||
1-12 | @ | GAS SPRING | 1 | ||
1-13 | @ | WASHER-PLAIN | 2 | ||
1-14 | @ | HANDLE | 1 | ||
1-15 | @ | SCREW | 2 | ||
1-2 | SCA132000 | SASH ASSY | 1 | ||
1-2-1 | @ | RUBBER-H | 1 | ||
1-2-2 | SCA132100 | Стекло А | 1 | ||
1-2-3 | SCA132200 | Стекло В | 1 | ||
1-3 | SCA133000 | Стекло | 1 | ||
1-4 | @ | RUBBER | 1 | ||
1-5 | @ | SEAL-RUBBER | 1 | ||
1-6 | DJ-LA-082 | D-LATCH | 1 | ||
1-7 | @ | BOLT-HEX | 2 | ||
1-8 | @ | WASHER-PLAIN | 2 | ||
1-9 | @ | NUT-HEX | 2 | ||
2 | F12901310 | DOOR ASSY-LH | 1 |
OPT 2
|
|
2 | F12901320 | DOOR ASSY-RH | 1 |
OPT 2
|
|
2-1 | SCA141000 | Стекло 1 | 1 | ||
2-10 | @ | NUT-CAP | 14 | ||
2-11 | @ | BOLT-FLAT HEAD | 4 | ||
2-12 | SCA144000 | HINGE 1 | 1 | ||
2-13 | SCA145000 | HINGE 2 | 1 | ||
2-14 | DJ-LA-087 | HANDLE-OUT | 1 | ||
2-15 | SCA147000 | Пластина | 1 | ||
2-16 | SCA146000 | Пластина | 1 | ||
2-17 | DJ-LA-082 | D-LATCH | 1 | ||
2-18 | @ | BOLT-HEX | 2 | ||
2-19 | @ | WASHER-PLAIN | 2 | ||
2-20 | @ | NUT | 2 | ||
2-21 | @ | HANDLE-IN | 1 | ||
2-22 | @ | SCREW | 2 | ||
2-23 | @ | GAS SPRING | 1 | ||
2-24 | @ | WASHER-PLAIN | 2 | ||
2-3 | @ | SEAL-RUBBER | 1 | ||
2-4 | @ | RUBBER-H | 1 | ||
2-5 | SCA143000 | DOOR FRAME WA | 1 | ||
2-6 | @ | BOLT-FLAT HEAD | 10 | ||
2-7 | @ | WASHER-ABS | 14 | ||
2-8 | @ | WASHER-RUBBER | 14 | ||
2-9 | @ | WASHER-RUBBER | 18 | ||
N1 | F12901410 | DOOR ASSY-LH | 1 |
OPT 1
|
|
N2-2 | SCA142000 | Стекло 2 | 1 |
