Каталог запчастей
-
Hyundai
-
HLF20/25/30-5
- OUTER MAST(TF-MAST)
OUTER MAST(TF-MAST) погрузчика на сжиженном газе Hyundai HLF20/25/30-5
OUTER MAST(TF-MAST) погрузчика на сжиженном газе Hyundai HLF20/25/30-5 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7210
Наименование:OUTER MAST(TF-MAST)
Версия:2005. 2.16 REV.5B

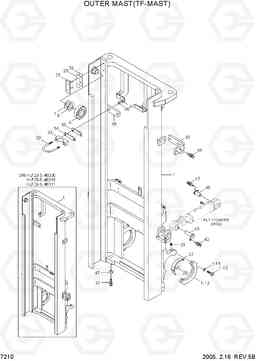

OUTER MAST(TF-MAST) HLF20/25/30-5
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 63FG-11010 | OUTER MAST WA | 1 |
TF370,HLF20-5
|
|
| 1 | 63FG-11011 | OUTER MAST WA | 1 |
TF370,HLF20-5
|
|
| 1 | 63FG-11010 | OUTER MAST WA | 1 |
TF370,HLF25-5
|
|
| 1 | 63FG-11011 | OUTER MAST WA | 1 |
TF370,HLF25-5
|
|
| 1 | 63FG-11010 | OUTER MAST WA | 1 |
TF370,HLF30-5
|
|
| 1 | 63FG-11011 | OUTER MAST WA | 1 |
TF370,HLF30-5
|
|
| 1 | 63FG-11020 | OUTER MAST WA | 1 |
TF400,HLF20-5
|
|
| 1 | 63FG-11021 | OUTER MAST WA | 1 |
TF400,HLF20-5
|
|
| 1 | 63FG-11020 | OUTER MAST WA | 1 |
TF400,HLF25-5
|
|
| 1 | 63FG-11021 | OUTER MAST WA | 1 |
TF400,HLF25-5
|
|
| 1 | 63FG-11020 | OUTER MAST WA | 1 |
TF400,HLF30-5
|
|
| 1 | 63FG-11021 | OUTER MAST WA | 1 |
TF400,HLF30-5
|
|
| 1 | 63FG-11030 | OUTER MAST WA | 1 |
TF430,HLF20-5
|
|
| 1 | 63FG-11031 | OUTER MAST WA | 1 |
TF430,HLF20-5
|
|
| 1 | 63FG-11030 | OUTER MAST WA | 1 |
TF430,HLF25-5
|
|
| 1 | 63FG-11031 | OUTER MAST WA | 1 |
TF430,HLF25-5
|
|
| 1 | 63FG-11030 | OUTER MAST WA | 1 |
TF430,HLF30-5
|
|
| 1 | 63FG-11031 | OUTER MAST WA | 1 |
TF430,HLF30-5
|
|
| 1 | 63FG-11040 | OUTER MAST WA | 1 |
TF450,HLF20-5
|
|
| 1 | 63FG-11041 | OUTER MAST WA | 1 |
TF450,HLF20-5
|
|
| 1 | 63FG-11040 | OUTER MAST WA | 1 |
TF450,HLF25-5
|
|
| 1 | 63FG-11041 | OUTER MAST WA | 1 |
TF450,HLF25-5
|
|
| 1 | 63FG-11040 | OUTER MAST WA | 1 |
TF450,HLF30-5
|
|
| 1 | 63FG-11041 | OUTER MAST WA | 1 |
TF450,HLF30-5
|
|
| 1 | 63FG-11050 | OUTER MAST WA | 1 |
TF470,HLF20-5
|
|
| 1 | 63FG-11051 | OUTER MAST WA | 1 |
TF470,HLF20-5
|
|
| 1 | 63FG-11050 | OUTER MAST WA | 1 |
TF470,HLF25-5
|
|
| 1 | 63FG-11051 | OUTER MAST WA | 1 |
TF470,HLF25-5
|
|
| 1 | 63FG-11050 | OUTER MAST WA | 1 |
TF470,HLF30-5
|
|
| 1 | 63FG-11051 | OUTER MAST WA | 1 |
TF470,HLF30-5
|
|
| 1 | 63FG-11060 | OUTER MAST WA | 1 |
TF500,HLF20-5
|
|
| 1 | 63FG-11061 | OUTER MAST WA | 1 |
TF500,HLF20-5
|
|
| 1 | 63FG-11060 | OUTER MAST WA | 1 |
TF500,HLF25-5
|
|
| 1 | 63FG-11061 | OUTER MAST WA | 1 |
TF500,HLF25-5
|
|
| 1 | 63FG-11060 | OUTER MAST WA | 1 |
TF500,HLF30-5
|
|
| 1 | 63FG-11061 | OUTER MAST WA | 1 |
TF500,HLF30-5
|
|
| 1 | 63FG-11070 | OUTER MAST WA | 1 |
TF550,HLF20-5
|
|
| 1 | 63FG-11071 | OUTER MAST WA | 1 |
TF550,HLF20-5
|
|
| 1 | 63FG-11070 | OUTER MAST WA | 1 |
TF550,HLF25-5
|
|
| 1 | 63FG-11071 | OUTER MAST WA | 1 |
TF550,HLF25-5
|
|
| 1 | 63FG-11070 | OUTER MAST WA | 1 |
TF550,HLF30-5
|
|
| 1 | 63FG-11071 | OUTER MAST WA | 1 |
TF550,HLF30-5
|
|
| 1 | 63FG-11080 | OUTER MAST WA | 1 |
TF600,HLF20-5
|
|
| 1 | 63FG-11081 | OUTER MAST WA | 1 |
TF600,HLF20-5
|
|
| 1 | 63FG-11080 | OUTER MAST WA | 1 |
TF600,HLF25-5
|
|
| 1 | 63FG-11081 | OUTER MAST WA | 1 |
TF600,HLF25-5
|
|
| 1 | 63FG-11080 | OUTER MAST WA | 1 |
TF600,HLF30-5
|
|
| 1 | 63FG-11081 | OUTER MAST WA | 1 |
TF600,HLF30-5
|
|
| 1 | 63FG-11090 | OUTER MAST WA | 1 |
TF650,HLF20-5
|
|
| 1 | 63FG-11091 | OUTER MAST WA | 1 |
TF650,HLF20-5
|
|
| 1 | 63FG-11090 | OUTER MAST WA | 1 |
TF650,HLF25-5
|
|
| 1 | 63FG-11091 | OUTER MAST WA | 1 |
TF650,HLF25-5
|
|
| 1 | 63FG-11090 | OUTER MAST WA | 1 |
TF650,HLF30-5
|
|
| 1 | 63FG-11091 | OUTER MAST WA | 1 |
TF650,HLF30-5
|
|
| 1 | 63FG-11100 | OUTER MAST WA | 1 |
TF700,HLF20-5
|
|
| 1 | 63FG-11101 | OUTER MAST WA | 1 |
TF700,HLF20-5
|
|
| 1 | 63FG-11100 | OUTER MAST WA | 1 |
TF700,HLF25-5
|
|
| 1 | 63FG-11101 | OUTER MAST WA | 1 |
TF700,HLF25-5
|
|
| 1 | 63FG-11100 | OUTER MAST WA | 1 |
TF700,HLF30-5
|
|
| 1 | 63FG-11101 | OUTER MAST WA | 1 |
TF700,HLF30-5
|
|
| 1-12 | FMC0000170 | Крышка цапфы | 2 | ||
| 1-13 | S109-160856 | Болт с шестигранной головкой (под шестигранник) | 4 | ||
| 1-14 | S411-160002 | Шайба пружинная | 4 | ||
| 23 | F12500370 | лайнер резервного копирования | 2 | ||
| 25 | FMC0000150 | Прокладка регулировочная | 6 | ||
| 26 | FMD0000110 | прокладка (0.5T) | 4 | ||
| 26 | FMC0000160 | прокладка (0.5T) | 4 | ||
| 27 | FMC0000180 | Втулка | 2 | ||
| 28 | S471-500164 | Палец | 2 | ||
| 29 | S651-810008 | Масленка | 4 | ||
| 31 | S037-122052 | Болт | 2 | ||
| 32 | 61FJ-18200 | U-образный болт (скоба, П образный) / хомут | 2 | ||
| 33 | F12500590 | Держатель | 2 | ||
| 34 | F12500530 | Прокладка регулировочная | 2 | ||
| 35 | F12500540 | прокладка (0.5T) | 2 | ||
| 36 | S403-085002 | Плоская шайба | 4 | ||
| 37 | S275-080002 | Гайка самоблокирующаяся | 4 | ||
| 38 | 61FG-18300 | CLAMP-LIFT CYLINDER | 2 | ||
| 39 | S037-123522 | Болт | 4 | ||
| 40 | FHC1002200 | Палец | 2 | ||
| 42 | S037-102522 | Болт | 4 | ||
| 47 | 61FG-18400 | Вставка | 2 | ||
| 48 | 61FG-17000 | Палец | 2 | ||
| 6 | 6600181100-01 | Подшипник роликовый | 2 | ||
| 7 | 6600187900 | прокладка (0.5T) | 2 | ||
| 8 | 6600188000 | Прокладка регулировочная | 2 |
