HI-FLOW CIRCUIT минипогрузчика серии T Hyundai HSL1200T
HI-FLOW CIRCUIT минипогрузчика серии T Hyundai HSL1200T со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:5053
Наименование:HI-FLOW CIRCUIT
Версия:

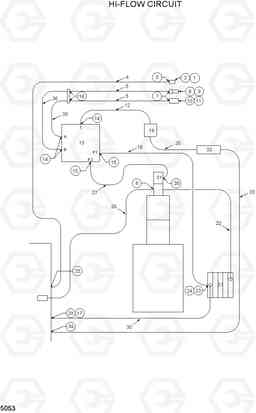

HI-FLOW CIRCUIT HSL1200T
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | YCAC-01766 | DUST CAP-FEMALE | 1 | ||
| 10 | YCAC-01303 | COUPLING-FEMALE | 1 | ||
| 11 | YCAC-01305 | DUST CAP-FEMALE | 1 | ||
| 12 | YCAC-02562 | HOSE-HYDRAULIC | 1 | ||
| 13 | YCAC-01813 | VALVE-HI FLOW | 1 | ||
| 14 | YCAC-00309 | Соединитель | 3 | ||
| 15 | YCAC-00308 | Колено 90 | 2 | ||
| 16 | YCAC-01782 | Соединитель | 2 | ||
| 17 | YCAC-01063 | TEE | 1 | ||
| 18 | YCAC-02564 | HOSE-HYDRAULIC | 1 | ||
| 19 | YCAC-01788 | RAD/COOLER ASSY | 1 | ||
| 2 | YCAC-01764 | COUPLING-FEMALE | 1 | ||
| 20 | YCAC-02519 | HOSE-HYDRAULIC | 1 | ||
| 21 | YCAC-01625 | CONTROL VALVE-SOL AUX | 1 |
W/CONTROL BOXES
|
|
| 22 | YCAC-02183 | HOSE-HYDRAULIC | 1 | ||
| 23 | YCAC-01364 | PLUG-POWER BEYOND | 1 | ||
| 24 | YCAC-00539 | ELBOW-90,WITH O-RING | 1 | ||
| 25 | YCAC-00599 | CONNECTOR-BULKHEAD | 1 | ||
| 26 | YCAC-02560 | HOSE-HYDRAULIC | 1 | ||
| 27 | YCAC-02561 | HOSE-HYDRAULIC | 1 | ||
| 28 | YCAC-00308 | Колено 90 | 1 | ||
| 29 | YCAC-00805 | Колено 90 | 1 | ||
| 3 | YCAC-00599 | CONNECTOR-BULKHEAD | 1 | ||
| 30 | YCAC-02563 | HOSE-HYDRAULIC | 1 | ||
| 31 | YCAC-01814 | PUMP-GEAR | 1 | ||
| 32 | YCAC-01239 | HYD FILTER ASSY | 1 | ||
| 33 | YCAC-02520 | HOSE-HYDRAULIC | 1 | ||
| 34 | YCAC-01803 | TEE-BRANCH | 1 | ||
| 35 | YCAC-02559 | HOSE-HYDRAULIC | 1 | ||
| 36 | YCAC-02558 | HOSE-HYDRAULIC | 1 | ||
| 4 | YCAC-02556 | HOSE-HYDRAULIC | 1 | ||
| 5 | YCAC-02557 | HOSE-HYDRAULIC | 2 | ||
| 6 | YCAC-00820 | ELBOW | 1 | ||
| 7 | YCAC-01779 | Соединитель | 2 | ||
| 8 | YCAC-01304 | COUPLING-MALE | 1 | ||
| 9 | YCAC-01306 | DUST CAP-MALE | 1 |
