Код подсистемы:6062

Наименование:ELECTRICAL WIRING, ENGINE

Версия:

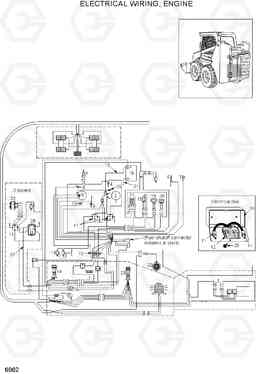

ELECTRICAL WIRING, ENGINE HSL1200T

Поз.	Код	Наименование	Кол	Прим.
	YCAC-00850	FUSE-15A	AR	5 PER PACK
	YCAC-00851	FUSE-10A	AR	5 PER PACK
	YCAC-01756	SWITCH-ROCKER	1
	YCAC-01757	COVER-R/SW RUBBER	1
	YCAC-01784	HARNESS-MANIFRAME	1
	YCAC-01552	HARNESS-HOMOLOG	1	CE,LIGHTING
	YCAC-01055	ALARM-BACKUP	1	OPT
	YCAC-00818	SWITCH-BACKUP ALARM	1	OPT
1	YCAC-01724	HARNESS-ENGINE WIRE	1
10	YCAC-00712	SENDER-TEMP 12V	1	WATER TEMP
11	YCAC-00909	RELAY-12V 40A	3
12	YCAC-00895	PANEL-FUSE & C/BREAKER	1
13	@	CONTROL VALVE	1	SEE 4049
14	YCAC-01328	HANDLE-ROCKER&2PB SW	1
15	YCAC-01047	CABLE-BATTERY ASSY	1
16	YCAC-00831	BATTERY-12V W/HANDLE	2
17	YCAC-01130	SWITCH-DUAL C/W BRKT	1
18	@	SWITCH	1	SEE 1018
19	YCAC-00785	SWITCH-SEAT	1
2	YCAC-01406	STARTER-ENGINE V3300T	1
20	YCAC-01131	SWITCH-CONTACT BODY	1	OPT,STOP BUTTON
21	YCAC-00832	CABLE-GROUND 16"	2
22	YCAC-00608	LIGHT-RR WORK	1	REAR WORK
23	YCAC-01327	HANDLE-PLAIN	1
25	YCAC-01049	KNOB-BLOCK WITH STUD	1
26	YCAC-00708	LUG-EXTERNAL BOOSTING	1
27	YCAC-01783	HARNESS-TWO SPEED	1
28	YCAC-01789	CONTROL-SHIFT W/RELAY	1
29	YCAC-01790	LIGHT-INDICATOR 2 SPEED	1
3	YCAC-01405	ALTERNATOR-60A	1
4	YCAC-01407	GLOW PLUG	1
5	YCAC-01414	SOLENOID-ENG STOP	1
6	YCAC-00830	INDICATOR-AIR	1
7	YCAC-00712	SENDER-TEMP 12V	1	HYD OIL TEMP
8	YCAC-00384	SWITCH-OIL	1	ENG OIL PRESS
9	YCAC-01031	SENDER-FUEL LEVEL	1
N24	YCAC-02180	BOX-ELECTRICAL ASSY	1
