- OPERATOR'S PLATFORM
OPERATOR'S PLATFORM минипогрузчика серии T Hyundai HSL275DT
OPERATOR'S PLATFORM минипогрузчика серии T Hyundai HSL275DT со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1020
Наименование:OPERATOR'S PLATFORM
Версия:

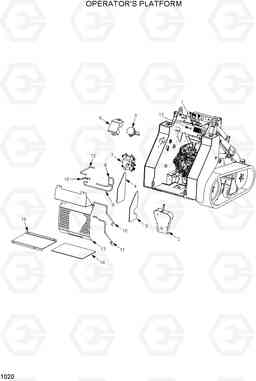

OPERATOR'S PLATFORM HSL275DT
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| YCAC-00850 | FUSE-15A | 3 |
NOT SHOWN
|
||
| YCAC-00851 | FUSE-10A | 1 |
NOT SHOWN
|
||
| YCAC-00849 | FUSE-AUTOMOTIVE 30A | 1 |
NOT SHOWN
|
||
| YCAC-00454 | CIRCUIT BREAKER-40 AMP | 1 |
NOT SHOWN
|
||
| YCAC-02716 | CAP-CIRCUIT BREAKER | 1 |
NOT SHOWN
|
||
| 1 | YCAC-00895 | PANEL-FUSE & C/BREAKER | 1 | ||
| 10 | YCAC-02711 | TUBE-HYDRAULIC | 1 | ||
| 11 | YCAC-02712 | TUBE-HYDRAULIC | 1 | ||
| 12 | YCAC-02713 | TUBE-HYDRAULIC | 1 | ||
| 13 | YCAC-02691 | COMBINER COVER ASSY | 1 | ||
| 14 | YCAC-02714 | INSULATION-HEAT BARRIER | 1 | ||
| 15 | YCAC-02715 | TUBE-HYDRAULIC | 1 | ||
| 16 | YCAC-02692 | STEP PLATE | 5 | ||
| 17 | YCAC-00909 | RELAY-12V 40A | 4 | ||
| 2 | YCAC-02699 | BELT GUARD ASSY | 1 | ||
| 3 | YCAC-01632 | FILTER IN TANK | 1 | ||
| 4 | YCAC-02705 | TANK INSULATION-LH | 1 | ||
| 5 | YCAC-02706 | TANK INSULATION-RH | 1 | ||
| 6 | YCAC-02707 | FILTER SHIELD WA | 1 | ||
| 7 | YCAC-02708 | VALVE-HYD COM BINER | 1 | ||
| 8 | YCAC-02709 | TUBE-HYDRAULIC | 1 | ||
| 9 | YCAC-02710 | TUBE-HYDRAULIC | 1 |
