Каталог запчастей
-
Hyundai
-
HSL610
- DECALS
DECALS минипогрузчика колесного Hyundai HSL610
DECALS минипогрузчика колесного Hyundai HSL610 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:9010
Наименование:DECALS
Версия:2005.11.30 REV.5L

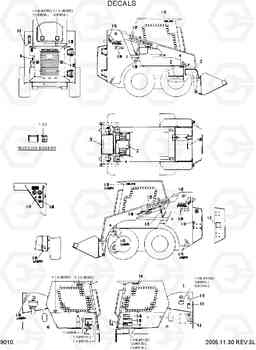

DECALS HSL610
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 91S4-00021 | DECAL KIT | 1 | ||
| 1 | 91S4-00022 | DECAL KIT | 1 | ||
| 1 | 91S4-00023 | DECAL KIT | 1 | ||
| 1 | 91S4-00024 | DECAL KIT | 1 | ||
| 1 | 91S4-00025 | DECAL KIT | 1 | ||
| 1 | 91S4-00026 | DECAL KIT | 1 | ||
| 1 | 91S4-00028 | DECAL KIT | 1 | ||
| 1-1 | 91S4-00030 | THROTTLE | 1 | ||
| 1-10 | 91E1-14110 | DECAL-PIN PLATE | 1 |
NON CE
|
|
| 1-11 | 91E1-23210 | NOISE LEVEL-LPA | 1 |
CE ONLY
|
|
| 1-12 | 91E1-23640 | NOISE LEVEL-LWA | 1 |
CE ONLY
|
|
| 1-13 | 91E1-28220 | LOGO-FIRE | 1 |
CE ONLY
|
|
| 1-14 | 91S4-00100 | DECAL-FOOT CONTROL | 1 |
STD(HA/FOOT)
|
|
| 1-15 | 91S4-00240 | SLINGING IDEOGRAM | 8 | ||
| 1-16 | 91S4-00250 | LOCKED | 1 | ||
| 1-17 | 91S4-00260 | BOOM LOCK | 1 | ||
| 1-17 | 91S4-00261 | BUTTON | 1 | ||
| 1-18 | 91S4-00270 | WARNING-BOOM LOCK | 1 | ||
| 1-18 | 91S4-00271 | WARNING | 1 | ||
| 1-19 | 91S4-00280 | WARNING | 1 | ||
| 1-2 | 91S1-0009 | DIESEL FUEL | 1 | ||
| 1-20 | 91S4-00580 | SERVICE INSTRUCTION | 1 | ||
| 1-20 | 91S4-00581 | SERVICE INSTRUCTION | 1 | ||
| 1-20 | 91S4-00582 | SERVICE INSTRUCTION | 1 | ||
| 1-21 | 91S4-00590 | HSL610 | 2 | ||
| 1-22 | 91S4-00600 | STRIP,LH | 1 | ||
| 1-23 | 91S4-00610 | STRIP,RH | 1 | ||
| 1-24 | 91S4-00620 | HSL610 | 2 | ||
| 1-25 | 91S4-00650 | LUMINUS | 2 | ||
| 1-26 | 91S4-00670 | REAR-DOOR | 1 | ||
| 1-27 | 91S4-00680 | Стрела | 2 | ||
| 1-28 | 91S4-00070 | ROPS CAB | 1 | ||
| 1-29 | 91S4-00080 | EXHAUST PIPE | 1 | ||
| 1-3 | 91S1-0010 | HYD OIL | 1 | ||
| 1-30 | 91S4-00090 | START KEY | 1 | ||
| 1-31 | 91S4-00700 | DECAL-PUSH | 1 | ||
| 1-32 | 91S4-00290 | WARNING | 1 | ||
| 1-33 | 91S8-01350 | Наклейка разъем ECM | 1 | ||
| 1-4 | 91S1-00511 | WARNING | 1 | ||
| 1-5 | 91S1-0052 | FAN WARNING | 1 | ||
| 1-6 | 91S4-00060 | ROPS S/NO PLATE | 1 | ||
| 1-7 | 91S1-00541 | JUMP START | 1 | ||
| 1-8 | 91S1-0056 | WARNING | 1 | ||
| 1-9 | 91S1-0057 | WARNING | 1 | ||
| 10 | 91E1-23640 | NOISE LEVEL-LWA | 1 |
CE ONLY
|
|
| 11 | 91E1-28220 | LOGO-FIRE | 1 |
CE ONLY
|
|
| 12 | 91S4-00100 | DECAL-FOOT CONTROL | 1 |
STD(HA/FOOT)
|
|
| 13 | 92S4-00100 | DECAL-FOOT CONTROL | 1 |
OPT(H/ONLY)
|
|
| 14 | 91S4-00710 | DECAL-HAND ONLY | 1 |
OPT(AUX HYD)
|
|
| 15 | 91S4-00720 | DECAL-WARNING | 1 |
OPT
|
|
| 16 | 91S4-00130 | BOOM LOCK | 1 |
STD
|
|
| 17 | 91S4-00140 | WARNING-BOOM LOCK | 1 |
STD
|
|
| 18 | 91S4-00261 | BUTTON | 1 |
OPT
|
|
| 19 | 91S4-00271 | WARNING | 1 |
OPT
|
|
| 2 | 91S1-00770 | SAFETY WORK | 1 | ||
| 3 | 91S4-00110 | SAFETY WORK | 1 | ||
| 4 | 91S4-00120 | DECAL-SAFETY WORK | 1 | ||
| 5 | 91EK-12010 | RIVET | 8 | ||
| 5 | 501904907 | RIVET | 8 | ||
| 6 | 17E1-5146 | бампер дверь | 1 | ||
| 7 | 91E1-14110 | DECAL-PIN PLATE | 1 |
NON CE
|
|
| 8 | 91E1-14130 | DECAL-PIN PLATE | 1 |
CE ONLY
|
|
| 9 | 91E1-23210 | NOISE LEVEL-LPA | 1 |
CE ONLY
|
