WHEEL & TIRE минипогрузчика колесного Hyundai HSL650-7
WHEEL & TIRE минипогрузчика колесного Hyundai HSL650-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:5030
Наименование:WHEEL & TIRE
Версия:2014.01.31 REV.14A

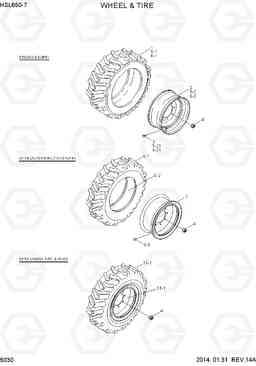

WHEEL & TIRE HSL650-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 80S8-40200 | WHEEL & TIRE INSTALL | 4 |
OPT
|
|
| * | 80S8-40300 | WHEEL & TIRE INSTALL | 4 |
OPT
|
|
| 1 | 81S1-4002 | TIRE ASSY(10.0X16.5-6PR) | 4 | ||
| 1 | 81S8-60010 | TIRE ASSY(10.0X16.5-6PR) | 4 | ||
| 1 | 81S1-4002 | TIRE ASSY(10.0X16.5-6PR) | 4 | ||
| 11 | 82S4-42100 | Колесо | 1 | ||
| 11-1 | 82S4-42090 | Колесо | 1 | ||
| 11-2 | J05896400 | подушка шинах (8.25x15) | 1 | ||
| 2 | 81S1-40031 | WHELL RIM WA | 4 | ||
| 3 | 81S1-4004 | клапан обод | 4 | ||
| 3 | 81M5-40010 | клапан обод | 4 | ||
| 3 | XCCA-00002 | AIR VALVE | 4 |
TR415
|
|
| 4 | 81S1-4005 | RIM NUT GR8 | 24 | ||
| 4 | 81S1-4005 | RIM NUT GR8 | 24 | ||
| 4 | 81S1-4005 | RIM NUT GR8 | 24 | ||
| 4 | 81S1-4005 | RIM NUT GR8 | 24 | ||
| 5 | 81S8-41010 | TIRE ASSY-LH | 2 | ||
| 5 | 81S8-41011 | TIRE ASSY-LH | 2 | ||
| 5-1 | 81S1-4002 | TIRE ASSY(10.0X16.5-6PR) | 1 | ||
| 5-2 | 81S1-40031 | WHELL RIM WA | 1 | ||
| 5-2 | 81S8-42010 | WHELL RIM WA | 1 | ||
| 5-2 | 81S8-42011 | WHELL RIM WA | 1 | ||
| 5-21 | XCCA-00002 | AIR VALVE | 1 |
TR415
|
|
| 6 | 81S8-41020 | TIRE ASSY-RH | 2 | ||
| 6 | 81S8-41021 | TIRE ASSY-RH | 2 | ||
| 6 | 82S1-42020 | TIRE ASSY(7.5X16-12PR) | 1 | ||
| 6 | 82S4-42020 | TIRE SUB(8.25X16-16PR) | 1 | ||
| 6 | 82S4-42020 | TIRE SUB(8.25X16-16PR) | 4 | ||
| 6-1 | 81S1-4002 | TIRE ASSY(10.0X16.5-6PR) | 1 | ||
| 6-1 | 82S1-42040 | TIRE | 1 | ||
| 6-2 | 81S1-40031 | WHELL RIM WA | 1 | ||
| 6-2 | 81S8-42010 | WHELL RIM WA | 1 | ||
| 6-2 | 81S8-42011 | WHELL RIM WA | 1 | ||
| 6-2 | 82S1-42050 | TUBE & VALVE | 1 | ||
| 6-2 | 82S4-42050 | TUBE & VALVE | 1 | ||
| 6-21 | XCCA-00002 | AIR VALVE | 1 |
TR415
|
|
| 6-3 | 82S1-42060 | FLAP | 1 | ||
| N * | 80S8-40400 | WHEEL & TIRE INSTALL | 4 |
OPT, SOLID TYPE
|
|
| N* | 80S8-40100 | WHEEL & TIRE INSTALL | 4 |
STD
|
|
| N6-1 | 82S4-42040 | TIRE | 1 | ||
| N6-3 | 82S4-42060 | FLAP | 1 | ||
| N7 | 81S8-40010 | Диск колесный (обод колеса) | 4 | ||
| N7 | 81S8-40010 | Диск колесный (обод колеса) | 1 |
