CONSOLE BOX(CAB) минипогрузчика колесного Hyundai HSL650-7
CONSOLE BOX(CAB) минипогрузчика колесного Hyundai HSL650-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6100
Наименование:CONSOLE BOX(CAB)
Версия:2013. 7.31 REV.13G

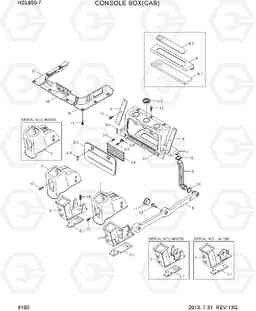

CONSOLE BOX(CAB) HSL650-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 71S7-20111 | CONSOLE BOX-LH | 1 | ||
| 1 | 71S7-20112 | CONSOLE BOX-LH | 1 | ||
| 10 | S520-055000 | Зажим | 2 | ||
| 11 | 71N6-03300 | вентиляционное отверстие | 2 | ||
| 12 | S132-081526 | SCREW-W/WASHER | 37 | ||
| 12 | S132-081526 | SCREW-W/WASHER | 31 | ||
| 13 | 71S7-20321 | COVER-HEAD/LH | 1 | ||
| 14 | 71S7-20331 | COVER-HEAD/RH | 1 | ||
| 15 | S035-102526 | Болт | 8 | ||
| 16 | 71S7-20241 | DASHBOARD-LH | 1 | ||
| 17 | 71S7-20251 | DASHBOARD-RH | 1 | ||
| 18 | 71S7-20262 | DASHBOARD-CENTER | 1 | ||
| 2 | 71S7-20121 | CONSOLE BOX-RH | 1 | ||
| 2 | 71S7-20123 | CONSOLE BOX-RH | 1 | ||
| 3 | 71S7-20131 | COVER ASSY-REAR | 1 | ||
| 3-1 | 71S7-20141 | COVER-REAR | 1 | ||
| 3-2 | 71S7-20151 | DOOR-REAR | 1 | ||
| 3-3 | 71EM-20150 | LATCH ASSY | 2 | ||
| 3-4 | 71S7-20221 | PAD-RUBBER | 4 | ||
| 3-5 | 71N6-03300 | вентиляционное отверстие | 3 | ||
| 3-6 | 71M8-20880 | NET ASSY | 1 | ||
| 3-7 | S151-040156 | SCREW-TAPPING | 2 | ||
| 3-8 | 71S7-20350 | Пластина | 1 | ||
| 3-9 | S132-061526 | SCREW-W/WASHER | 2 | ||
| 4 | 71S7-20161 | DUCT-AICON | 1 | ||
| 4-1 | 71S7-20291 | SPONGE | 1 | ||
| 4-2 | 71S7-20301 | SPONGE | 1 | ||
| 5 | 71S7-20171 | DUCT-SIDE | 1 | ||
| 6 | 71S7-20311 | COVER-REAR/SIDE | 2 | ||
| 7 | 71S7-20192 | SUPPORT WA-LH | 1 | ||
| 7 | 71S7-20193 | SUPPORT WA-LH | 1 | ||
| 7 | 71S7-20230 | SUPPORT WA-LH | 1 | ||
| 7-1 | 71S7-20360 | FOAM-SPONGE | 1 | ||
| 7-1 | 71S7-20361 | FOAM-SPONGE | 1 | ||
| 7-1 | 71S7-20230-F1 | FOAM-SPONGE | 1 | ||
| 8 | 71S7-20202 | SUPPORT WA-RH | 1 | ||
| 8 | 71S7-20203 | SUPPORT WA-RH | 1 | ||
| 8-1 | 71S7-20360 | FOAM-SPONGE | 1 | ||
| 8-1 | 71S7-20361 | FOAM-SPONGE | 1 | ||
| 9 | 71S7-20211 | HOSE-DEFROSTER | 1 | ||
| N18 | 71S7-20261 | DASHBOARD-CENTER | 1 | ||
| N2 | 71S7-20122 | CONSOLE BOX-RH | 1 |
