Каталог запчастей
-
Hyundai
-
HSL650-7
- DECALS(DOMESTIC)
DECALS(DOMESTIC) минипогрузчика колесного Hyundai HSL650-7
DECALS(DOMESTIC) минипогрузчика колесного Hyundai HSL650-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:8021
Наименование:DECALS(DOMESTIC)
Версия:2014. 4.30 REV.14D

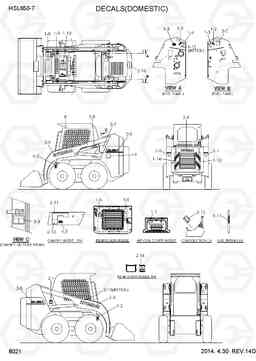

DECALS(DOMESTIC) HSL650-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 91S8-00101 | DECAL KIT(A) | 1 | ||
| 1 | 91S8-00102 | DECAL KIT(A) | 1 | ||
| 1 | 91S8-00103 | DECAL KIT(A) | 1 | ||
| 1 | 91S8-00104 | DECAL KIT(A) | 1 | ||
| 1 | 91S8-00105 | DECAL KIT(A) | 1 | ||
| 1 | 91S8-00106 | DECAL KIT(A) | 1 | ||
| 1 | 91S8-00107 | DECAL KIT(A) | 1 | ||
| 1-1 | 91M8-04020 | REFLECTING | 2 | ||
| 1-1 | 91S8-04030 | Светоотражатель (отражатель) задний | 2 | ||
| 1-10 | 91S1-00770 | SAFETY WORK | 1 | ||
| 1-10 | 91S8-08010 | DECAL-SAFETY WORK | 1 | ||
| 1-11 | 91S4-00700 | DECAL-PUSH | 1 | ||
| 1-12 | 91Q6-03230 | Наклейка запорные | 1 | ||
| 1-13 | 91Q4-04032 | Наклейка отражает / LH | 1 | ||
| 1-14 | 91Q4-04040 | Наклейка отражает / RH | 1 | ||
| 1-14 | 91Q4-04041 | Наклейка отражает / RH | 1 | ||
| 1-2 | 91E1-29080 | SLINGING IDEOGRAM | 4 | ||
| 1-3 | 91S8-04010 | DECAL-FUELING | 1 | ||
| 1-3 | 91S8-06010 | DECAL-FUELING | 1 | ||
| 1-3 | 91Q4-01130 | Наклейка заправки | 1 | ||
| 1-4 | 91S8-04020 | DECAL-HYD OIL | 1 | ||
| 1-4 | 91S8-06050 | DECAL-HYD OIL | 1 | ||
| 1-5 | 91S8-07010 | CAUTION-ENGINE ROOM | 1 | ||
| 1-6 | 91S8-07020 | DECAL-STAY | 1 | ||
| 1-7 | 91S8-07030 | DECAL-MANUAL BOX | 1 | ||
| 1-8 | 91S4-00110 | SAFETY WORK | 1 | ||
| 1-8 | 91S8-06040 | DECAL-SAFETY WORK | 1 | ||
| 1-9 | 91S4-00120 | DECAL-SAFETY WORK | 1 | ||
| 2 | 91S8-10600 | DECAL KIT(B) | 1 | ||
| 2 | 91S8-10601 | DECAL KIT(B) | 1 | ||
| 2 | 91S8-10602 | DECAL KIT(B) | 1 | ||
| 2 | 91S8-10603 | DECAL KIT(B) | 1 | ||
| 2 | 91S8-10604 | DECAL KIT(B) | 1 | ||
| 2-1 | 91S8-27400 | EMISSION CERTIFICATION | 1 | ||
| 2-10 | 20T-98-72350 | PLATE-KEEP OUT | 1 | ||
| 2-11 | 91S8-07070 | GENERAL WARNING(A) | 1 | ||
| 2-11 | 91S8-07140 | GENERAL WARNING(A) | 1 | ||
| 2-12 | 91S8-07090 | GENERAL WARNING(B) | 1 | ||
| 2-13 | 91S8-07130 | DECAL-ENGINE C/LEVER | 1 | ||
| 2-14 | 91S8-06350 | Наклейка разъем ECM | 1 | ||
| 2-15 | 91Q4-07170 | Наклейка водоотделитель | 1 | ||
| 2-15 | 91S8-07930 | DECAL-WATER SEPARATOR | 1 | ||
| 2-15 | 91S8-07931 | DECAL-WATER SEPARATOR | 1 | ||
| 2-2 | 91S8-27200 | DECAL-SPECIFICATION SHEET | 1 | ||
| 2-3 | 91N6-23040 | Наклейка Логотип Hyundai | 2 | ||
| 2-4 | 91N6-26020 | DECAL-HYUNDAI LOGO | 1 | ||
| 2-5 | 91S8-17110 | MODEL NAME-LH | 1 | ||
| 2-6 | 91S8-17120 | MODEL NAME-RH | 1 | ||
| 2-7 | 91S8-27160 | SERVICE INSTRUCTION | 1 | ||
| 2-7 | 91S8-27161 | SERVICE INSTRUCTION | 1 | ||
| 2-8 | 91S8-06030 | DECAL-BOOM LOCK | 1 | ||
| 2-9 | 91S8-07050 | DECAL-CANOPY LOCK | 1 | ||
| 3 | 91E1-14110 | DECAL-PIN PLATE | 1 | ||
| 3 | 91LM-14110 | Наклейка контактный пластина | 1 | ||
| 4 | 91LB-01280 | переводная картинка ROPS пластина | 1 | ||
| 4 | 91LB-01281 | DECAL-ROPS PLATE | 1 | ||
| 5 | 501904907 | RIVET | 8 | ||
| 6 | 91S8-17010 | DECAL-NOISE LEVEL | 1 | ||
| 7 | 91MJ-27160 | Наклейка этикетки эко | 1 |
