CAB & CANOPY ELECTRIC 2 минипогрузчика колесного Hyundai HSL650-7A
CAB & CANOPY ELECTRIC 2 минипогрузчика колесного Hyundai HSL650-7A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2040
Наименование:CAB & CANOPY ELECTRIC 2
Версия:2014. 6.30 REV.14F

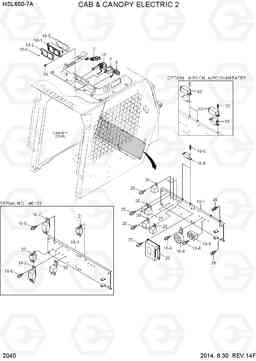

CAB & CANOPY ELECTRIC 2 HSL650-7A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 10 | 21S1-30230 | FUEL METER ASSY | 1 | ||
| 16 | 21S8-34210 | Реле в сборе | 1 | ||
| 16 | 21S8-34211 | Реле в сборе | 1 | ||
| 16 | 21S8-34212 | Реле в сборе | 1 | ||
| 16 | 21S8-34213 | Реле в сборе | 1 | ||
| 16 | 21S8-34210 | Реле в сборе | 1 | ||
| 16 | 21S8-34211 | Реле в сборе | 1 | ||
| 16 | 21S8-34212 | Реле в сборе | 1 | ||
| 16-1 | 21S8-34220 | PLATE-RELAY | 1 | ||
| 16-1 | 21S8-34221 | PLATE-RELAY | 1 | ||
| 16-1 | 21S8-34220 | PLATE-RELAY | 1 | ||
| 16-1 | 21S8-34221 | PLATE-RELAY | 1 | ||
| 16-2 | 21E3-0011 | Реле | 2 | ||
| 16-2 | 21E3-0011 | Реле | 2 | ||
| 16-4 | 21S4-09120 | AUDIBLE ALARM ASSY | 1 | ||
| 16-4 | 21S4-09120 | AUDIBLE ALARM ASSY | 1 | ||
| 16-5 | 21S4-01040 | FUSE BOX ASSY | 1 | ||
| 16-5 | 21S4-01041 | FUSE BOX ASSY | 1 | ||
| 16-5 | 21S4-01040 | FUSE BOX ASSY | 1 | ||
| 16-5 | 21S4-01041 | FUSE BOX ASSY | 1 | ||
| 16-6 | S131-051546 | SCREW-W/WASHER | 8 | ||
| 16-6 | S131-051546 | SCREW-W/WASHER | 5 | ||
| 16-6 | S131-051546 | SCREW-W/WASHER | 8 | ||
| 16-7 | 21E3-0025 | Реле | 1 | ||
| 16-7 | 21E3-0025 | Реле | 1 | ||
| 16-8 | 21S7-00110 | реле питания | 2 | ||
| 16-8 | 21S7-00111 | реле питания | 2 | ||
| 16-8 | 21U6-00110 | RELAY-POWER | 2 | ||
| 16-8 | 21S7-00110 | реле питания | 2 | ||
| 16-8 | 21S7-00111 | реле питания | 2 | ||
| 18 | 21S8-34250 | WARNING INDICATOR ASSY | 1 | ||
| 18 | 21S8-34250 | WARNING INDICATOR ASSY | 1 | ||
| 18-1 | 21S7-02310 | CASE | 1 | ||
| 18-1 | 21S7-02310 | CASE | 1 | ||
| 18-2 | @ | PCB | 1 | ||
| 18-2 | @ | PCB | 1 | ||
| 18-3 | 21S8-34260 | DECAL | 1 | ||
| 18-3 | 21S8-34260 | DECAL | 1 | ||
| 18-4 | 21M6-53210 | LAMP ASSY | 10 | ||
| 18-4 | 21M6-53210 | LAMP ASSY | 10 | ||
| 20 | 21S7-30103 | CONTROL UNIT | 1 | ||
| 20 | 21S7-30104 | CHECK UNIT | 1 | ||
| 20 | 21S7-30103 | CONTROL UNIT | 1 | ||
| 20 | 21S7-30104 | CHECK UNIT | 1 | ||
| 21 | 21E3-0011 | Реле | 1 |
HIGH FLOW
|
|
| 21 | 340005070 | Реле 12V, 5p | 1 |
HIGH FLOW
|
|
| 21 | 21E3-0011 | Реле | 1 |
HIGH FLOW
|
|
| 21 | 340005070 | Реле 12V, 5p | 1 |
HIGH FLOW
|
|
| 22 | 21E3-0011 | Реле | 1 |
BACK BUZZER
|
|
| 22 | 340005070 | Реле 12V, 5p | 1 |
BACK BUZZER
|
|
| 22 | 21E3-0011 | Реле | 1 |
BACK BUZZER
|
|
| 22 | 340005070 | Реле 12V, 5p | 1 |
BACK BUZZER
|
|
| 24 | S035-081526 | Болт | 1 | ||
| 24 | S035-081526 | Болт | 1 | ||
| 25 | S131-051546 | SCREW-W/WASHER | 7 | ||
| 25 | S131-051546 | SCREW-W/WASHER | 7 | ||
| 26 | S131-043046 | SCREW-W/WASHER | 4 | ||
| 26 | S131-043046 | SCREW-W/WASHER | 4 | ||
| 28 | S035-081522 | Болт | 1 |
EARTH
|
|
| 28 | S035-081522 | Болт | 1 |
EARTH
|
|
| 30 | 21E3-0011 | Реле | 1 | ||
| 30 | 340005070 | Реле 12V, 5p | 1 | ||
| 30 | 21E3-0011 | Реле | 1 | ||
| 30 | 340005070 | Реле 12V, 5p | 1 | ||
| 33 | 21S7-00110 | реле питания | 1 |
SEE ILLUST
|
|
| 33 | 21S7-00111 | реле питания | 1 |
SEE ILLUST
|
|
| 33 | 21U6-00110 | RELAY-POWER | 1 |
SEE ILLUST
|
|
| 33 | 21S7-00110 | реле питания | 1 |
SEE ILLUST
|
|
| 33 | 21S7-00111 | реле питания | 1 |
SEE ILLUST
|
|
| 38 | 340005070 | Реле 12V, 5p | 2 |
BACK BUZZER
|
|
| 38 | 340005070 | Реле 12V, 5p | 2 |
BACK BUZZER
|
|
| 39 | 340005070 | Реле 12V, 5p | 3 | ||
| 39 | 340005070 | Реле 12V, 5p | 3 | ||
| 40 | 21S7-00130 | Крышка | 3 |
SEE ILLUST
|
|
| 40 | 21S7-00130 | Крышка | 3 |
SEE ILLUST
|
|
| 5 | 21S4-01070 | лампа в салоне в сборе | 1 | ||
| 7 | 21S4-01110 | прикуриватель | 1 | ||
| 9 | 21N4-11070 | счетчик в сборе | 1 |
