Каталог запчастей
-
Hyundai
-
HSL650-7A
- DECALS(ENGLISH)

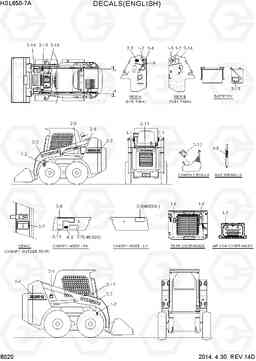

DECALS(ENGLISH) минипогрузчика колесного Hyundai HSL650-7A
DECALS(ENGLISH) минипогрузчика колесного Hyundai HSL650-7A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:8020
Наименование:DECALS(ENGLISH)
Версия:2014. 4.30 REV.14D
DECALS(ENGLISH) HSL650-7A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 92S8-00012 | DECAL KIT(A) | 1 | ||
| 1 | 92S8-00020 | DECAL KIT(A) | 1 | ||
| 1-1 | 91M8-04020 | REFLECTING | 2 | ||
| 1-2 | 91E1-29080 | SLINGING IDEOGRAM | 4 | ||
| 1-3 | 91S8-04010 | DECAL-FUELING | 1 | ||
| 1-3 | 91S8-04011 | DECAL-FUELING | 1 | ||
| 1-4 | 91S8-04020 | DECAL-HYD OIL | 1 | ||
| 1-4 | 91S8-04021 | DECAL-HYD OIL | 1 | ||
| 1-5 | 91M8-07110 | ВНИМАНИЕ, англ | 1 | ||
| 1-6 | 91S8-07020 | DECAL-STAY | 1 | ||
| 1-7 | 91S8-07030 | DECAL-MANUAL BOX | 1 | ||
| 1-8 | 91S4-00700 | DECAL-PUSH | 1 | ||
| 1-9 | 91Q6-03230 | Наклейка запорные | 1 | ||
| 2 | 92S8-00102 | DECAL KIT(B) | 1 | ||
| 2-1 | 91N6-22110 | Наклейка уровня шума / LWA | 1 |
EUROPE
|
|
| 2-10 | 91S8-07080 | GENERAL WARNING(B) | 1 | ||
| 2-11 | 91N6-26020 | DECAL-HYUNDAI LOGO | 1 | ||
| 2-12 | 91S8-07120 | DECAL-ENGINE C/LEVER | 1 | ||
| 2-13 | 91S8-01350 | Наклейка разъем ECM | 1 | ||
| 2-14 | 91S8-06040 | DECAL-SAFETY WORK | 1 | ||
| 2-15 | 91S4-00120 | DECAL-SAFETY WORK | 1 | ||
| 2-16 | 91S8-08010 | DECAL-SAFETY WORK | 1 | ||
| 2-17 | 91Q4-07180 | Наклейка водоотделитель | 1 | ||
| 2-2 | 91N6-23040 | Наклейка Логотип Hyundai | 2 | ||
| 2-3 | 91S8-17210 | MODEL NAME-LH | 1 | ||
| 2-4 | 91S8-17220 | MODEL NAME-RH | 1 | ||
| 2-5 | 91S8-10710 | SERVICE INSTRUCTION | 1 | ||
| 2-6 | 91S8-06020 | DECAL-BOOM LOCK | 1 | ||
| 2-7 | 91S8-07040 | DECAL-CANOPY LOCK | 1 | ||
| 2-8 | 91S8-07160 | GENERAL WARNING(A) | 1 | ||
| 2-9 | 91S8-07181 | DECAL-IDEOGRAM(B) | 1 |
MECHANICAL
|
|
| 2-9 | 91S8-07170 | DECAL-IDEOGRAM(A) | 1 |
PILOT
|
|
| 3 | 91E1-14110 | DECAL-PIN PLATE | 1 | ||
| 3 | 91LM-14110 | Наклейка контактный пластина | 1 | ||
| 3 | 91E1-14130 | DECAL-PIN PLATE | 1 |
EUROPE
|
|
| 3 | 91LM-14130 | Наклейка контактный пластина | 1 |
EUROPE
|
|
| 4 | 91LB-01280 | переводная картинка ROPS пластина | 1 | ||
| 4 | 91LB-01281 | DECAL-ROPS PLATE | 1 | ||
| 5 | 501904907 | RIVET | 8 |
