CAB & CANOPY 1 минипогрузчика колесного Hyundai HSL850-7
CAB & CANOPY 1 минипогрузчика колесного Hyundai HSL850-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6030
Наименование:CAB & CANOPY 1
Версия:2012. 9.30 REV.12J

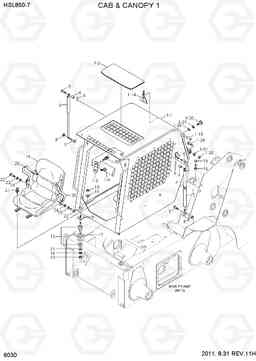

CAB & CANOPY 1 HSL850-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 71S7-02001 | CANOPY ASSY | 1 |
SEE 6040
|
|
| 1 | 71S7-02002 | CANOPY ASSY | 1 |
SEE 6040
|
|
| 1 | 71S7-02003 | CANOPY ASSY | 1 |
SEE 6040
|
|
| 1 | 71S7-02004 | CANOPY ASSY | 1 |
SEE 6040
|
|
| 1 | 71S7-02005 | CANOPY ASSY | 1 |
SEE 6040
|
|
| 1 | 71S7-02010 | CANOPY ASSY | 1 |
SEE 6040, STD
|
|
| 1 | 71S7-02011 | CANOPY ASSY | 1 |
SEE 6040, STD
|
|
| 1 | 71S7-00102 | CAB ASSY(LOW NOISE) | 1 |
SEE 6040-6070
|
|
| 1 | 71S7-00103 | CAB ASSY(LOW NOISE) | 1 |
SEE 6040-6070
|
|
| 1 | 71S7-00104 | CAB ASSY(LOW NOISE) | 1 |
SEE 6040-6070
|
|
| 1 | 71S7-00105 | CAB ASSY | 1 |
SEE 6040-6070
|
|
| 1 | 71S7-00106 | CAB ASSY | 1 |
SEE 6040-6070
|
|
| 1 | 71S7-00107 | CAB ASSY | 1 |
SEE 6040-6070
|
|
| 1 | 71S7-00108 | CAB ASSY | 1 |
SEE 6040-6070
|
|
| 1 | 71S7-00110 | CAB ASSY | 1 |
SEE 6040-70,STD
|
|
| 1 | 71S7-00111 | CAB ASSY | 1 |
SEE 6040-70,STD
|
|
| 1 | 71S7-00112 | CAB ASSY | 1 |
SEE 6040-70,STD
|
|
| 1 | 71S7-00113 | CAB ASSY | 1 |
SEE 6040-70,STD
|
|
| 1 | 71S7-00114 | CAB ASSY | 1 |
SEE 6040-70,STD
|
|
| 1-1 | 71S7-00501 | CANOPY WA-ROPS | 1 | ||
| 1-1 | 71S7-00502 | CANOPY WA | 1 | ||
| 1-1 | 71S7-00503 | CANOPY WA | 1 | ||
| 1-1 | 71S7-00504 | CANOPY WA | 1 | ||
| 1-1 | 71S7-00720 | CABIN WA | 1 | ||
| 1-14 | 71S4-10670 | TAG-EXIT | 1 | ||
| 1-15 | 71S4-10700 | PIN-LOCK | 1 | ||
| 1-2 | 71S7-00692 | COVER(PC) | 1 | ||
| 1-20 | 61S1-1008 | Болт специальный | 1 | ||
| 1-21 | 61S1-1036 | PACKING-RUBBER | 1 | ||
| 1-24 | S403-082002 | Плоская шайба | 1 | ||
| 1-29 | S017-181052 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 1-30 | S275-180002 | Гайка самоблокирующаяся | 2 | ||
| 1-31 | S403-182002 | Плоская шайба | 2 | ||
| 1-33 | S033-081526 | Болт | 1 | ||
| 1-6 | 71L1-3377 | зеркало комната | 1 | ||
| 1-8 | 71S4-10870 | Кронштейн | 1 | ||
| 10 | S205-121002 | Гайка | 4 | ||
| 11 | 11S1-3017 | WASHER-SPECIAL | 4 | ||
| 12 | 11S1-3016 | Подушка двигателя | 2 | ||
| 14 | S411-120002 | Шайба пружинная | 2 | ||
| 15 | S017-160552 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 16 | S205-163002 | Гайка | 2 | ||
| 16 | S205-163002 | Гайка | 2 | ||
| 17 | 71S7-00950 | RUBBER PAD | 1 |
CAB
|
|
| 19 | 71S4-10500 | SEAT ASSY | 1 |
EXPORT
|
|
| 19 | 71S4-10501 | SEAT ASSY-SEARS/2" | 1 |
EXPORT
|
|
| 19 | 72S4-10500 | SEAT ASY-WITHOUT BELT | 1 |
DOMESTIC
|
|
| 19 | 71S7-10500 | SEAT ASSY-SEARS/3" | 1 |
EXPORT
|
|
| 19 | 71S7-10510 | SEAT ASSY-WOO/2" | 1 |
DOMESTIC
|
|
| 2 | 71S4-10530 | GAS SPRING-LOCK TYPE | 1 |
CANOPY
|
|
| 20 | 71S4-10760 | SEAT BELT | 1 | ||
| 21 | S105-080156 | Болт с шестигранной головкой (под шестигранник) | 4 | ||
| 22 | 81S1-0021 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 23 | 81S1-0022 | Шайба пружинная | 2 | ||
| 24 | 81S1-0023 | Плоская шайба | 2 | ||
| 3 | 71S4-10540 | GAS SPRING-NON LOCK | 1 |
CANOPY
|
|
| 3 | 71S4-20571 | GAS SPRING | 2 |
CAB
|
|
| 4 | 72S4-10710 | NYLON BUSH | 2 | ||
| 4 | 71S4-10711 | NYLON BUSH | 2 | ||
| 5 | 11S4-30060 | Болт специальный | 2 | ||
| 6 | S501-080002 | контактный самоблокирующиеся | 2 | ||
| 7 | S017-100452 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 8 | S275-100002 | Гайка самоблокирующаяся | 2 | ||
| 9 | 71S4-10581 | SUPPORT WA-BOLT | 2 |
