ELECTRICAL WIRING, ROPS минипогрузчика серии T Hyundai HSL800T
ELECTRICAL WIRING, ROPS минипогрузчика серии T Hyundai HSL800T со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6061
Наименование:ELECTRICAL WIRING, ROPS
Версия:

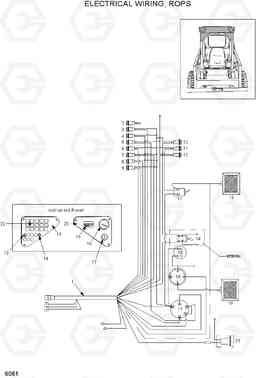

ELECTRICAL WIRING, ROPS HSL800T
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| YCAC-01486 | HARNESS-OVAL LAMP | 1 | |||
| YCAC-02359 | MTG BRACKET-RH | 1 |
OVAL LIGHT
|
||
| YCAC-02358 | MTG BRACKET-LH | 1 |
OVAL LIGHT
|
||
| YCAC-01073 | CLAMP-CABLE #8 | 1 | |||
| YCAC-01075 | CLAMP-CABLE #12 | 5 | |||
| YCAC-01076 | CLAMP-CABLE #18 | 1 | |||
| 1 | YCAC-01048 | HARNESS-ROPS ASSY | 1 | ||
| 10 | YCAC-00930 | BULB PANEL-INDICATOR | 1 |
AUX HYD
|
|
| 11 | YCAC-00930 | BULB PANEL-INDICATOR | 1 |
LOW BEAM
|
|
| 12 | YCAC-00930 | BULB PANEL-INDICATOR | 1 |
SEAT BELT
|
|
| 13 | YCAC-00852 | SWITCH-WORK LIGHT | 1 |
HEAD LIGHTS
|
|
| 14 | YCAC-00853 | SWITCH-OPT,AUX HYD | 1 |
AUX CONTROL
|
|
| 15 | YCAC-00819 | HOURMETER | 1 | ||
| 16 | YCAC-00797 | GUAGE-FUEL | 1 | ||
| 17 | YCAC-01423 | IGNITION SWITCH | 1 | ||
| 18 | YCAC-01488 | LAMP-OVAL | 2 |
FR WORK LIGHT
|
|
| 19 | YCAC-01474 | PANEL-INSTRUMENT,LH | 1 | ||
| 2 | YCAC-00930 | BULB PANEL-INDICATOR | 1 |
LOW CHARGE PRES
|
|
| 20 | YCAC-01909 | PANEL-INSTRUMENT,RH | 1 | ||
| 21 | YCAC-00990 | ALARM-FAST SOUNDING | 1 |
OPT
|
|
| 22 | YCAC-00930 | BULB PANEL-INDICATOR | 1 | ||
| 3 | YCAC-00930 | BULB PANEL-INDICATOR | 1 |
BRAKE
|
|
| 4 | YCAC-00930 | BULB PANEL-INDICATOR | 1 |
BATTERY
|
|
| 5 | YCAC-00930 | BULB PANEL-INDICATOR | 1 |
PREHEAT
|
|
| 6 | YCAC-00930 | BULB PANEL-INDICATOR | 1 |
AIR FILTER
|
|
| 7 | YCAC-00930 | BULB PANEL-INDICATOR | 1 |
HYD OIL TEMP
|
|
| 8 | YCAC-00930 | BULB PANEL-INDICATOR | 1 |
COOLANT TEMP
|
|
| 9 | YCAC-00930 | BULB PANEL-INDICATOR | 1 |
ENG OIL TEMP
|
