Каталог запчастей
-
Hyundai
-
HSL810
- DECALS 1(ENGLISH)

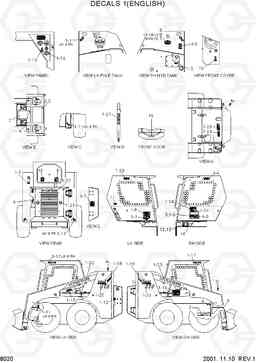

DECALS 1(ENGLISH) минипогрузчика колесного Hyundai HSL810
DECALS 1(ENGLISH) минипогрузчика колесного Hyundai HSL810 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:8020
Наименование:DECALS 1(ENGLISH)
Версия:2001.11.10 REV.1
DECALS 1(ENGLISH) HSL810
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 91S5-00021 | DECAL KIT | 1 |
ENGLISH
|
|
| 1 | 91S5-00022 | DECAL KIT | 1 | ||
| 1 | 91S5-00023 | DECAL KIT | 1 | ||
| 1-1 | 91S4-00030 | THROTTLE | 1 | ||
| 1-11 | 91S4-00240 | SLINGING IDEOGRAM | 8 | ||
| 1-12 | 91S4-00250 | LOCKED | 1 | ||
| 1-13 | 91S4-00260 | BOOM LOCK | 1 | ||
| 1-13 | 91S4-00261 | BUTTON | 1 | ||
| 1-14 | 91S4-00270 | WARNING-BOOM LOCK | 1 | ||
| 1-14 | 91S4-00271 | WARNING | 1 | ||
| 1-15 | 91S4-00280 | WARNING | 1 | ||
| 1-16 | 91S5-00580 | SERVICE INSTRUCTION | 1 | ||
| 1-16 | 91S5-00581 | SERVICE INSTRUCTION | 1 | ||
| 1-17 | 91S5-00590 | MADEL NAME-HSL810 | 2 | ||
| 1-18 | 92S4-00600 | STRIP-LH | 1 | ||
| 1-19 | 92S4-00610 | STRIP-RH | 1 | ||
| 1-2 | 91S1-0009 | DIESEL FUEL | 1 | ||
| 1-20 | 91S5-00620 | MODEL NAME-HSL810 | 2 | ||
| 1-21 | 91S4-00650 | LUMINUS | 2 | ||
| 1-22 | 91S4-00670 | REAR-DOOR | 1 | ||
| 1-23 | 91S4-00680 | Стрела | 2 | ||
| 1-24 | 91S4-00070 | ROPS CAB | 1 | ||
| 1-25 | 91S4-00080 | EXHAUST PIPE | 1 | ||
| 1-26 | 91S4-00090 | STRT KEY | 1 | ||
| 1-27 | 91S4-00700 | PUSH | 1 | ||
| 1-28 | 91S4-00290 | WARNING | 1 | ||
| 1-29 | 91S5-00600 | WARNING | 1 | ||
| 1-3 | 91S1-0010 | HYD OIL | 1 | ||
| 1-4 | 91S1-00511 | WARNING | 1 | ||
| 1-5 | 91S1-0052 | FAN WARNING | 1 | ||
| 1-6 | 91S4-00060 | ROPS S/NO PLATE | 1 | ||
| 1-7 | 91S1-00541 | JUMP START | 1 | ||
| 1-8 | 91S1-0056 | WARNING | 1 | ||
| 1-9 | 91S1-0057 | WARNING | 1 | ||
| 10 | 91E1-23600 | NOISE LEVEL-LWA | 1 |
CE ONLY
|
|
| 11 | 91E1-28220 | LOGO-FIRE | 1 |
CE ONLY
|
|
| 12 | 91S4-00100 | DECAL-FOOT CONTROL | 1 |
STD
|
|
| 13 | 92S4-00100 | DECAL-FOOT CONTROL | 1 |
HAND ONLY
|
|
| 14 | 91S4-00710 | DECAL-HAND ONLY | 1 |
HAND ONLY
|
|
| 15 | 91S5-00630 | DECAL-HIGH FLOW SW | 1 |
HIGH FLOW
|
|
| 16 | 91S4-00720 | DECAL-WARNING | 1 | ||
| 2 | 91S1-00770 | SAFETY WORK | 1 | ||
| 3 | 91S4-00110 | SAFETY WORK | 1 | ||
| 4 | 91S4-00120 | SAFETY WORK | 1 | ||
| 5 | 91EK-12010 | RIVET | 8 | ||
| 5 | 501904907 | RIVET-POP | 8 | ||
| 6 | 17E1-5146 | бампер дверь | 1 | ||
| 7 | 91E1-14110 | NAME PLATE | 1 |
NON CE
|
|
| 8 | 91E1-14130 | NAME PLATE | 1 |
CE ONLY
|
|
| 9 | 91E1-23210 | NOISE LEVEL-LPA | 1 |
CE ONLY
|
