- BACK BUZZER & STOP LAMP(#0360-, OPT)
BACK BUZZER & STOP LAMP(#0360-, OPT) минипогрузчика колесного Hyundai HSL850-7A
BACK BUZZER & STOP LAMP(#0360-, OPT) минипогрузчика колесного Hyundai HSL850-7A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2015
Наименование:BACK BUZZER & STOP LAMP(#0360-, OPT)
Версия:2014. 10.31 REV.14K

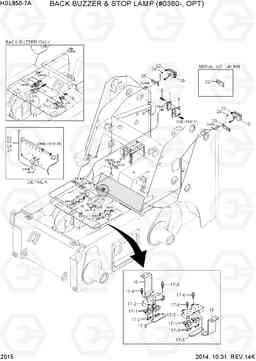

BACK BUZZER & STOP LAMP(#0360-, OPT) HSL850-7A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 21FD-30312 | зуммер назад | 1 | ||
| 10 | 21S8-00730 | LAMP TAIL STOP | 2 | ||
| 11 | 21S8-00810 | HARNESS-EXT | 1 |
B/BUZZER ONLY
|
|
| 12 | 21S8-00820 | HARNESS-EXT | 1 |
B/BUZZER ONLY
|
|
| 13 | 21S8-00830 | HARNESS-EXT | 1 | ||
| 14 | 21S8-00840 | HARNESS-EXT | 1 | ||
| 15 | 21S7-00850 | Пластина | 1 | ||
| 16 | 21S7-00860 | Пластина | 1 | ||
| 17 | 21S8-00870 | Втягивающее реле | 1 | ||
| 17-1 | 21S8-02120 | SWITCH-MICRO | 2 | ||
| 17-2 | 21S8-00880 | Крышка | 1 | ||
| 17-3 | 21S8-02140 | Пластина | 1 | ||
| 17-4 | S131-043046 | SCREW-W/WASHER | 4 | ||
| 17-5 | 21S8-00890 | Пластина | 1 | ||
| 17-6 | S131-061046 | SCREW-W/WASHER | 2 | ||
| 18 | 21S8-00910 | HARNESS-EXT | 1 |
PILOT, B/BUZZER
|
|
| 18 | 21S8-00910 | HARNESS-EXT | 1 |
PILOT, B/BUZZER
|
|
| 19 | 21S8-00920 | HARNESS-EXT | 1 |
PILOT, B/BUZZER
|
|
| 19 | 21S8-00920 | HARNESS-EXT | 1 |
PILOT, B/BUZZER
|
|
| 2 | 21S8-02110 | SWITCH ASSY-LH | 1 |
B/BUZZER ONLY
|
|
| 20 | 21S8-00930 | HARNESS-EXT | 1 |
PILOT TYPE
|
|
| 20 | 21S8-00930 | HARNESS-EXT | 1 |
PILOT TYPE
|
|
| 21 | 21S8-00940 | HARNESS-EXT | 1 |
PILOT TYPE
|
|
| 21 | 21S8-00940 | HARNESS-EXT | 1 |
PILOT TYPE
|
|
| 22 | S035-084056 | Болт | 4 | ||
| 22 | S035-084056 | Болт | 4 | ||
| 23 | 21S8-00750 | Пластина | 2 | ||
| 23 | 21S8-00751 | PLATE_LH | 1 | ||
| 23 | 21S8-00750 | Пластина | 2 | ||
| 24 | S403-05200B | Плоская шайба | 4 | ||
| 24 | S403-05200B | Плоская шайба | 8 | ||
| 24 | S403-05200B | Плоская шайба | 4 | ||
| 25 | 21S8-01750 | PLATE_RH | 1 | ||
| 3 | 21S8-02170 | SWITCH ASSY-RH | 1 |
B/BUZZER ONLY
|
|
| 4 | S593-000652 | клип жгут | 2 |
B/BUZZER ONLY
|
|
| 5 | 21S7-34350 | PLATE-LH | 1 |
B/BUZZER ONLY
|
|
| 6 | 21S7-34360 | PLATE-RH | 1 |
B/BUZZER ONLY
|
|
| 7 | S035-081526 | Болт | 4 |
B/BUZZER ONLY
|
|
| 8 | S035-082026 | Болт | 2 | ||
| 9 | 21S7-34610 | PLATE-BACK BUZZER | 1 |
