Каталог запчастей
-
Hyundai
-
HSL850-7A
- DECALS(KOREAN)
DECALS(KOREAN) минипогрузчика колесного Hyundai HSL850-7A
DECALS(KOREAN) минипогрузчика колесного Hyundai HSL850-7A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:8025
Наименование:DECALS(KOREAN)
Версия:2014. 7.31 REV.14G

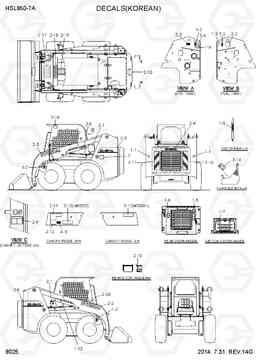

DECALS(KOREAN) HSL850-7A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 92S8-00012 | DECAL KIT(A) | 1 | ||
| 1 | 92S8-00013 | DECAL KIT(A) | 1 | ||
| 1 | 92S8-00014 | DECAL KIT(A) | 1 | ||
| 1 | 92S8-00015 | DECAL KIT(A) | 1 | ||
| 1 | 92S8-00016 | DECAL KIT(A) | 1 | ||
| 1 | 92S8-00017 | DECAL KIT(A) | 1 | ||
| 1 | 92S8-00013 | DECAL KIT(A) | 1 | ||
| 1 | 92S8-00014 | DECAL KIT(A) | 1 | ||
| 1 | 92S8-00015 | DECAL KIT(A) | 1 | ||
| 1 | 92S8-00016 | DECAL KIT(A) | 1 | ||
| 1-1 | 91M8-04020 | REFLECTING | 2 | ||
| 1-1 | 91S8-04030 | Светоотражатель (отражатель) задний | 2 | ||
| 1-1 | 91S8-04030 | Светоотражатель (отражатель) задний | 2 | ||
| 1-10 | 91Q4-04031 | Наклейка отражает / LH | 1 | ||
| 1-10 | 91Q4-04032 | Наклейка отражает / LH | 1 | ||
| 1-10 | 91Q4-04031 | Наклейка отражает / LH | 1 | ||
| 1-10 | 91Q4-04032 | Наклейка отражает / LH | 1 | ||
| 1-11 | 91Q4-04040 | Наклейка отражает / RH | 1 | ||
| 1-11 | 91Q4-04041 | Наклейка отражает / RH | 1 | ||
| 1-11 | 91Q4-04040 | Наклейка отражает / RH | 1 | ||
| 1-11 | 91Q4-04041 | Наклейка отражает / RH | 1 | ||
| 1-12 | 91B1-01600 | DECAL-FIRE EXTINGUISHER | 1 | ||
| 1-2 | 91E1-29080 | SLINGING IDEOGRAM | 4 | ||
| 1-3 | 91S8-04010 | DECAL-FUELING | 1 | ||
| 1-3 | 91S8-06010 | DECAL-FUELING | 1 | ||
| 1-3 | 91Q4-01130 | Наклейка заправки | 1 | ||
| 1-3 | 91S8-06010 | DECAL-FUELING | 1 | ||
| 1-3 | 91Q4-01130 | Наклейка заправки | 1 | ||
| 1-4 | 91S8-04020 | DECAL-HYD OIL | 1 | ||
| 1-4 | 91S8-06050 | DECAL-HYD OIL | 1 | ||
| 1-4 | 91S8-06050 | DECAL-HYD OIL | 1 | ||
| 1-5 | 91M8-07110 | ВНИМАНИЕ, англ | 1 | ||
| 1-6 | 91S8-07020 | DECAL-STAY | 1 | ||
| 1-7 | 91S8-07030 | DECAL-MANUAL BOX | 1 | ||
| 1-8 | 91S4-00700 | DECAL-PUSH | 1 | ||
| 1-9 | 91Q6-03230 | Наклейка запорные | 1 | ||
| 1-9 | 91Q6-03230 | Наклейка запорные | 1 | ||
| 2 | 92S7-00203 | DECAL KIT(B) | 1 |
NOT USED
|
|
| 2 | 92S7-00204 | DECAL KIT(B) | 1 | ||
| 2 | 92S7-00205 | DECAL KIT(B) | 1 | ||
| 2 | 92S7-00202 | DECAL KIT(B) | 1 | ||
| 2 | 92S7-00203 | DECAL KIT(B) | 1 |
NOT USED
|
|
| 2 | 92S7-00204 | DECAL KIT(B) | 1 | ||
| 2 | 92S7-00205 | DECAL KIT(B) | 1 | ||
| 2 | 92S7-00206 | DECAL KIT(B) | 1 | ||
| 2-1 | 91S7-27410 | EMISSION CERTIFICATION | 1 | ||
| 2-10 | 91S9-00065 | PLATE-KEEP OUT | 1 | ||
| 2-11 | 91S8-07260 | DECAL-WARNING(A) | 1 | ||
| 2-12 | 91S8-07200 | DECAL-IDEOGRAM(B) | 1 |
MECHANICAL
|
|
| 2-12 | 91S8-07190 | DECAL-IDEOGRAM(A) | 1 |
PILOT
|
|
| 2-13 | 91S8-07090 | GENERAL WARNING(B) | 1 | ||
| 2-14 | 91S8-07130 | DECAL-ENGINE C/LEVER | 1 | ||
| 2-15 | 91S8-06350 | Наклейка разъем ECM | 1 | ||
| 2-16 | 91S7-22100 | DECAL-NOISE LWA/101DB | 1 | ||
| 2-16 | 91N6-22110 | Наклейка уровня шума / LWA | 1 | ||
| 2-16 | 91S7-22100 | DECAL-NOISE LWA/101DB | 1 | ||
| 2-17 | 91S4-00110 | SAFETY WORK | 1 | ||
| 2-18 | 91S4-00120 | DECAL-SAFETY WORK | 1 | ||
| 2-19 | 91S1-00770 | SAFETY WORK | 1 | ||
| 2-2 | 91S7-18100 | SPECIFICATION SHEET | 1 | ||
| 2-2 | 91S7-18101 | SPECIFICATION SHEET | 1 | ||
| 2-20 | 91Q4-07170 | Наклейка водоотделитель | 1 | ||
| 2-20 | 91S8-07930 | DECAL-WATER SEPARATOR | 1 | ||
| 2-20 | 91S8-07931 | DECAL-WATER SEPARATOR | 1 | ||
| 2-20 | 91Q4-07170 | Наклейка водоотделитель | 1 | ||
| 2-20 | 91S8-07930 | DECAL-WATER SEPARATOR | 1 | ||
| 2-20 | 91S8-07931 | DECAL-WATER SEPARATOR | 1 | ||
| 2-3 | 91N6-23040 | Наклейка Логотип Hyundai | 2 | ||
| 2-4 | 91N6-26020 | DECAL-HYUNDAI LOGO | 1 | ||
| 2-4 | 91N6-26020 | DECAL-HYUNDAI LOGO | 1 | ||
| 2-5 | 91S7-17230 | MODEL NAME-LH | 1 | ||
| 2-5 | 91S7-17230 | MODEL NAME-LH | 1 | ||
| 2-6 | 91S7-17240 | MODEL NAME-RH | 1 | ||
| 2-6 | 91S7-17240 | MODEL NAME-RH | 1 | ||
| 2-7 | 91S7-60710 | SERVICE INSTRUCTION | 1 | ||
| 2-7 | 91S7-60710 | SERVICE INSTRUCTION | 1 | ||
| 2-8 | 91S8-06030 | DECAL-BOOM LOCK | 1 | ||
| 2-8 | 91S8-06030 | DECAL-BOOM LOCK | 1 | ||
| 2-9 | 91S8-07050 | DECAL-CANOPY LOCK | 1 | ||
| 2-9 | 91S8-07050 | DECAL-CANOPY LOCK | 1 | ||
| 3 | 91LM-14110 | Наклейка контактный пластина | 1 | ||
| 3 | 91E1-14110 | DECAL-PIN PLATE | 1 | ||
| 3 | 91LM-14110 | Наклейка контактный пластина | 1 | ||
| 4 | 91LB-01281 | DECAL-ROPS PLATE | 1 | ||
| 4 | 91LB-01280 | переводная картинка ROPS пластина | 1 | ||
| 4 | 91LB-01281 | DECAL-ROPS PLATE | 1 | ||
| 5 | 501904907 | RIVET | 8 | ||
| 5 | 501904907 | RIVET | 8 | ||
| 6 | 91S8-04030 | Светоотражатель (отражатель) задний | 2 | ||
| 7 | 91MJ-27160 | Наклейка этикетки эко | 1 |
