Каталог запчастей
-
Hyundai
-
HSL960T
- INSULATION
INSULATION минипогрузчика серии T Hyundai HSL960T
INSULATION минипогрузчика серии T Hyundai HSL960T со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1019
Наименование:INSULATION
Версия:

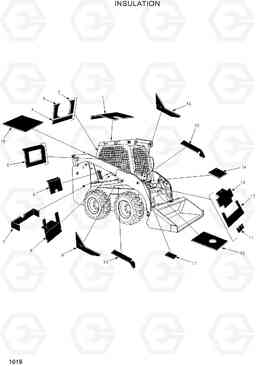

INSULATION HSL960T
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | YCAC-01808 | INSU-HEADLINER | 1 |
OPT KIT
|
|
| 10 | YCAC-01568 | INSU-ROPS SHIELD,RH | 1 | ||
| 11 | YCAC-01671 | INSU-FRONT FRAME | 1 | ||
| 12 | YCAC-01670 | INSU-FRONT SHIELD | 1 | ||
| 13 | YCAC-01566 | INSU-FRONT BULKHEAD | 1 | ||
| 14 | YCAC-01565 | INSU-SEAT MOUNT | 1 | ||
| 15 | YCAC-01567 | INSU-ROPS SHIELD LH | 1 | ||
| 16 | YCAC-01685 | INSU-LH SIDE PANEL | 1 |
OPT KIT
|
|
| 17 | YCAC-01673 | INSU-PANEL ACCESS | 1 | ||
| 18 | YCAC-01672 | INSU-PUMP MOUNT | 1 | ||
| 19 | YCAC-01872 | INSU-ENGINE COVER | 1 | ||
| 2 | YCAC-01559 | INSU-LH,RR,CORNERPOST | 1 |
OPT KIT
|
|
| 3 | YCAC-01560 | INSU-RH,RR,CORNERPOST | 1 |
OPT KIT
|
|
| 4 | YCAC-01558 | INSU-RR,WINDOW PANEL | 1 |
OPT KIT
|
|
| 5 | YCAC-01687 | INSU-BACK PANEL | 1 |
OPT KIT
|
|
| 6 | YCAC-01557 | INSU-BATT COVER | 1 |
OPT KIT
|
|
| 7 | YCAC-01570 | INSU-OUTER BLANKET | 1 | ||
| 8 | YCAC-01569 | INSU-BATT BOX BLANKET | 1 | ||
| 9 | YCAC-01686 | INSU-RH SIDE PANEL | 1 |
OPT KIT
|
