Каталог запчастей
-
Hyundai
-
HSL960T
- HI-FLOW CIRCUIT
HI-FLOW CIRCUIT минипогрузчика серии T Hyundai HSL960T
HI-FLOW CIRCUIT минипогрузчика серии T Hyundai HSL960T со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:5053
Наименование:HI-FLOW CIRCUIT
Версия:

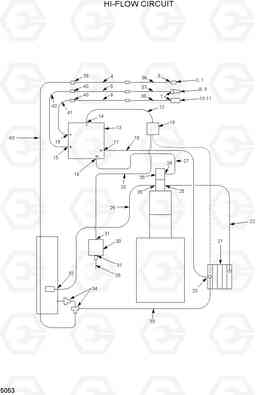

HI-FLOW CIRCUIT HSL960T
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | YCAC-01766 | DUST CAP-FEMALE | 1 | ||
| 10 | YCAC-01303 | COUPLING-FEMALE | 1 | ||
| 11 | YCAC-01305 | DUST CAP-FEMALE | 1 | ||
| 12 | YCAC-02578 | HOSE-HYDEAULIC | 1 | ||
| 13 | YCAC-01768 | VALVE-HYD MANIFOLD | 1 | ||
| 14 | YCAC-00308 | Колено 90 | 1 | ||
| 15 | YCAC-00309 | Соединитель | 2 | ||
| 16 | YCAC-00308 | Колено 90 | 1 | ||
| 17 | YCAC-00308 | Колено 90 | 1 | ||
| 18 | YCAC-02577 | HOSE-HYDRAULIC | 1 | ||
| 19 | YCAC-01868 | RAD/COOLER ASSY | 1 | ||
| 2 | YCAC-01764 | COUPLING-FEMALE | 1 | ||
| 20 | YCAC-02573 | HOSE-HYDRAULIC | 1 | ||
| 21 | @ | CONTROL VALVE | 1 |
SEE 4049
|
|
| 22 | YCAC-02402 | HOSE-HYDRAULIC | 1 | ||
| 23 | YCAC-01364 | PLUG-POWER BEYOND | 1 | ||
| 24 | YCAC-00580 | Колено 90 | 1 | ||
| 25 | YCAC-00405 | Колено 90 | 1 | ||
| 26 | YCAC-02560 | HOSE-HYDRAULIC | 1 | ||
| 27 | YCAC-02572 | HOSE-HYDRAULIC | 1 | ||
| 28 | YCAC-00820 | ELBOW | 1 | ||
| 29 | YCAC-02403 | HOSE-HYDRAULIC | 1 | ||
| 3 | YCAC-01801 | CONNECTOR-BULKHEAD | 1 | ||
| 30 | YCAC-01239 | HYD FILTER ASSY | 1 | ||
| 31 | YCAC-00773 | Колено 90 | 1 | ||
| 32 | YCAC-00699 | Соединитель | 1 | ||
| 33 | YCAC-02464 | HOSE-HYDRAULIC | 1 | ||
| 34 | YCAC-00572 | TEE-RUN | 1 | ||
| 35 | YCAC-01769 | PUMP-GEAR | 1 | ||
| 36 | YCAC-01811 | TUBE-HYDRAULIC | 1 | ||
| 37 | YCAC-01809 | TUBE-HYDRAULIC | 1 | ||
| 38 | YCAC-01810 | TUBE-HYDRAULIC | 1 | ||
| 39 | YCAC-00845 | Соединитель | 1 | ||
| 4 | YCAC-02582 | HOSE-HYDRAULIC | 1 | ||
| 40 | YCAC-01782 | Соединитель | 2 | ||
| 41 | YCAC-01836 | TUBE-HYDRAULIC | 1 | ||
| 42 | YCAC-01837 | TUBE-HYDRAULIC | 1 | ||
| 43 | YCAC-02579 | HOSE-HYDRAULIC | 1 | ||
| 5 | YCAC-02581 | HOSE-HYDRAULIC | 1 | ||
| 6 | YCAC-02580 | HOSE-HYDRAULIC | 1 | ||
| 7 | YCAC-01779 | Соединитель | 2 | ||
| 8 | YCAC-01304 | COUPLING-MALE | 1 | ||
| 9 | YCAC-01306 | DUST CAP-MALE | 1 |
