DECALS(R130LC-3) экскаватора гусеничного Hyundai R130LC-3
DECALS(R130LC-3) экскаватора гусеничного Hyundai R130LC-3 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7020
Наименование:DECALS(R130LC-3)
Версия:2002. 8.15 REV.18

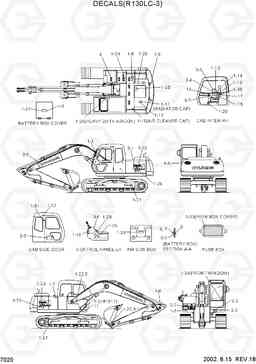

DECALS(R130LC-3) R130LC-3
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 91E6-00201 | DECAL KIT(A) | 1 | ||
| 1 | 91E6-00202 | DECAL KIT(A) | 1 | ||
| 1 | 91E6-00204 | DECAL KIT(A) | 1 | ||
| 1 | 91E6-00205 | DECAL KIT(A) | 1 | ||
| 1-1 | 91E1-21210 | DECAL-TRADE MARK | 1 | ||
| 1-10 | 91E1-26020 | AIR CLEANER | 1 | ||
| 1-11 | 91E1-26030 | Крышка радиатора | 1 | ||
| 1-12 | 91E1-26040 | ANTIFREEZE | 1 | ||
| 1-13 | 91E1-28020 | DECAL-AIR VENT | 1 | ||
| 1-14 | 91E1-28031 | INTERFERENCE | 1 | ||
| 1-15 | 91E1-28051 | SAFETY INSTRUCTION | 1 | ||
| 1-17 | 91E1-28070 | SWING LOCK | 1 | ||
| 1-18 | 91E1-28081 | MAX HEIGHT REACH | 1 | ||
| 1-19 | 91E1-29060 | SAFETY IDEOGRAM | 1 | ||
| 1-2 | 91E1-14110 | NAME PLATE | 1 | ||
| 1-20 | 91E1-29071 | SWING IDEOGRAM | 1 | ||
| 1-20 | 91E1-28960 | SWING IDEOGRAM | 1 | ||
| 1-21 | 91E1-29080 | SLINGING IDEOGRAM | 4 | ||
| 1-22 | 91E1-14120 | NAME PLATE-ATT | 3 | ||
| 1-23 | 91E1-24050 | SIDE KEEP CLEAR | 2 | ||
| 1-23 | 91E1-24051 | SIDE KEEP CLEAR | 2 | ||
| 1-24 | 91E1-25511 | FUELING | 1 | ||
| 1-25 | 91E1-26051 | DECAL-EXHAUST | 1 | ||
| 1-26 | 91E1-26060 | STAY-FIX | 2 | ||
| 1-27 | 91E1-26070 | BATTERY-DECAL | 1 | ||
| 1-28 | 91E1-26090 | MARK-HOOD | 1 | ||
| 1-29 | 91E1-28111 | SAFETY LEVER | 1 | ||
| 1-29 | 91E1-28112 | SAFETY LEVER | 1 | ||
| 1-3 | 91E1-24021 | TRANSPORTING | 1 | ||
| 1-30 | 91E1-28120 | MODE CONTROL | 1 | ||
| 1-31 | 91E1-28220 | LOGO-FIRE | 1 | ||
| 1-32 | 91E1-28230 | LOGO-HAMMER | 1 | ||
| 1-33 | 91E1-28240 | DECAL-FUSE BOX | 1 | ||
| 1-34 | 91E1-28280 | SAFE-FRONT WINDOW | 1 | ||
| 1-35 | 91E1-28290 | SERVICE SOCKET | 1 | ||
| 1-36 | 91E1-28310 | DECAL-LATCH | 1 | ||
| 1-4 | 91E1-24041 | KEEP CLEAR | 1 | ||
| 1-4 | 91E1-24042 | KEEP CLEAR | 1 | ||
| 1-5 | 91E1-14520 | LIFTING EYE | 1 | ||
| 1-5 | 91E1-24520 | LIFTING EYE | 2 | ||
| 1-6 | 91E1-24610 | DECAL-SAFETY TRAVEL | 2 | ||
| 1-7 | 91E1-25011 | HYD OIL LEVEL | 1 | ||
| 1-7 | 91E1-25012 | HYD OIL LEVEL | 1 | ||
| 1-8 | 91E1-25020 | HYD OIL LUB | 1 | ||
| 1-9 | 91E1-26010 | ELECTROLYTE | 1 | ||
| 10 | 91E1-27110 | Наклейка л / выбросов ENG | 1 | ||
| 11 | 91E1-14110 | NAME PLATE | 1 | ||
| 11 | 91E1-14130 | NAME PLATE | 1 |
EUROPE
|
|
| 13 | 91E3-12040 | CLAMP LOCKING | 1 | ||
| 2 | 91E6-00211 | DECAL KIT(B) | 1 | ||
| 2 | 91E6-00213 | DECAL KIT(B) | 1 | ||
| 2-1 | 91E6-21080 | TRADE MARK-CWT | 1 | ||
| 2-2 | 91E1-23120 | NOISE LEVEL-LPA | 1 | ||
| 2-2 | 91E1-23110 | NOISE LEVEL-LPA | 1 | ||
| 2-3 | 91E6-23640 | NOISE LEVEL-LWA | 1 | ||
| 2-3 | 91N6-22140 | Наклейка шума LWA / 104 дБ | 1 | ||
| 2-5 | 91E1-21060 | DECAL-TRADE MARK | 2 | ||
| 3 | 91E6-11201 | DECAL-TRADE MARK | 1 | ||
| 3-1 | 91E6-22030 | MODEL NAME | 2 | ||
| 3-2 | 91E6-22040 | NUMBER PLATE | 1 | ||
| 3-3 | 91E6-26021 | SERVICE INSTRUCTION | 1 | ||
| 3-3 | 91E6-26022 | SERVICE INSTRUCTION | 1 | ||
| 3-4 | 91E6-28310 | LIFTING CHART | 1 |
BM4.6,AM2.5
|
|
| 3-4 | 91E6-28320 | LIFTING CHART | 1 |
BM4.6,AM1.9
|
|
| 3-4 | 91E6-28330 | LIFTING CHART | 1 |
BM4.6,AM2.1
|
|
| 3-4 | 91E6-28340 | LIFTING CHART | 1 |
BM4.6,AM3.0
|
|
| 3-4 | 91E6-28350 | LIFTING CHART | 1 |
BM4.6,AM1.9
|
|
| 3-4 | 91E6-28360 | LIFTING CHART | 1 |
BM4.6,AM2.1
|
|
| 3-4 | 91E6-28370 | LIFTING CHART-2PCS | 1 |
BM4.9,AM2.1
|
|
| 3-4 | 91E6-28380 | LIFTING CHART-2PCS | 1 |
BM4.9,AM2.5
|
|
| 3-5 | 91E6-29021 | CONTROL IDEOGRAM | 1 | ||
| 3-6 | 91E6-29041 | CONTROL IDEOGRAM-LH | 1 | ||
| 3-7 | 91E1-29052 | CONTROL IDEOGRAM-RH | 1 | ||
| 4 | 91E1-26300 | Наклейка шаг протектора | 7 | ||
| 5 | E171-1246 | RIVET | 4 | ||
| 5 | 91EK-12010 | RIVET | 4 | ||
| 6 | S175-080202 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 7 | S403-082002 | Плоская шайба | 2 | ||
| 8 | S205-081002 | Гайка | 2 | ||
| 9 | 91E1-50010 | SCREW-DRIVER | 6 | ||
| N2-3 | 91E6-23630 | NOISE LEVEL-LWA | 1 |
