HYPER DAT экскаватора гусеничного Hyundai R130LC-3
HYPER DAT экскаватора гусеничного Hyundai R130LC-3 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7040
Наименование:HYPER DAT
Версия:'96. 7.10 REV.3

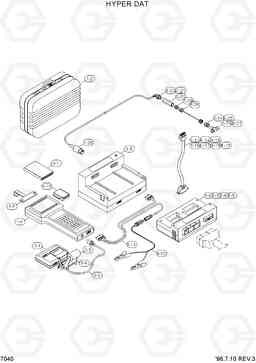

HYPER DAT R130LC-3
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 21E6-90200 | HYPER DAT KIT | 1 | ||
| 1-1 | 21E2-90030 | USER'S GUIDE(ENGLISH) | 1 | ||
| 1-10 | 21E2-90180 | ROM PACK | 1 | ||
| 1-11 | 21E2-90200 | MAIN CABLE | 1 | ||
| 1-12 | 21E2-90210 | BATT-CIGAR CABLE | 1 | ||
| 1-13 | 21E2-90220 | CONTROLLER CABLE 1 | 1 | ||
| 1-14 | 21E2-90230 | CONTROLLER CABLE 2 | 1 | ||
| 1-15 | 21E2-90240 | CONTROLLER CABLE 3 | 1 | ||
| 1-16 | 21E2-90250 | CONTROLLER CABLE 4 | 1 | ||
| 1-17 | 21E2-90260 | CONTROLLER CABLE 5 | 1 | ||
| 1-18 | 21E2-90270 | CONTROLLER CABLE 6 | 1 | ||
| 1-19 | 21E2-90280 | CONTROLLER CABLE 7 | 1 | ||
| 1-2 | 21E2-90040 | CASE | 1 | ||
| 1-20 | 21E2-90300 | PRESSURE TRANSDUCER 1 | 1 | ||
| 1-21 | 21E2-90310 | PRESSURE TRANSDUCER 2 | 2 | ||
| 1-22 | 21E2-90320 | TRANSDUCER ADAPTER | 3 | ||
| 1-23 | 21E2-90330 | SCREW COUPLING 1 | 6 | ||
| 1-24 | 21E2-90340 | SCREW COUPLING 2 | 3 | ||
| 1-25 | 21E2-90350 | SCREW COUPLING 3 | 1 | ||
| 1-26 | 21E2-90360 | T-FITTING 1 | 1 | ||
| 1-27 | 21E2-90370 | T-FITTING 2 | 1 | ||
| 1-28 | 21E2-90380 | PRESSURE CABLE | 3 | ||
| 1-29 | 21E2-90390 | TRANSDUCER CABLE | 3 | ||
| 1-3 | 21E2-90050 | MAIN BODY HANGER | 1 | ||
| 1-4 | 21E2-90110 | MAIN BODY | 1 | ||
| 1-5 | 21E2-90120 | MODULAR | 1 | ||
| 1-6 | 21E2-90130 | SIGNAL ADAPTER 1 | 1 | ||
| 1-7 | 21E2-90140 | SIGNAL ADAPTER 2 | 1 | ||
| 1-8 | 21E2-90150 | SIGNAL ADAPTER 3 | 1 | ||
| 1-9 | 21E2-90160 | SIGNAL ADAPTER 4 | 1 | ||
| 2 | 21E6-90400 | PRINTER-HYPER DAT KIT | 1 | ||
| 2-1 | 21E2-90400 | PRINTER | 1 | ||
| 2-2 | 21E2-90410 | PRINTER CABLE | 1 | ||
| 2-3 | 21E2-90420 | PAPER-PRINTER | 1 | ||
| 2-4 | 21E2-90430 | PAPER HANGER-PRINTER | 1 |
