BRAKE VALVE WITH PEDAL экскаватора колесного Hyundai R130W
BRAKE VALVE WITH PEDAL экскаватора колесного Hyundai R130W со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2130
Наименование:BRAKE VALVE WITH PEDAL
Версия:

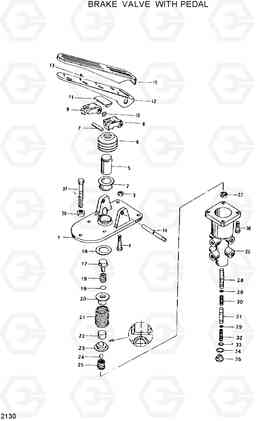

BRAKE VALVE WITH PEDAL R130W
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT SUPPLIED PARTS | 1 | ||
| * | 81L1-0005 | BRAKE VALVE | 1 | ||
| 1 | 467-406-101-4 | Кронштейн | 1 | ||
| 14 | 461-314-750-4 | Палец | 1 | ||
| 19 | 895-151-420-4 | Шайба | 1 | ||
| 2 | 460-001-200-4 | Втулка | 1 | ||
| 26 | 467-406-534-2 | Картер (корпус) | 1 | ||
| 27 | 897-162-080-4 | Кольцо | 1 | ||
| 37 | 891-211-570-4 | Болт | 1 | ||
| 5 | 461-314-386-2 | Поршень | 1 | ||
| 6 | 897-752-270-4 | Болт | 1 | ||
| 8 | 461-903-387-4 | Кронштейн | 1 | ||
| 9 | 461-903-388-4 | Кронштейн | 1 | ||
| N10 | @ | RING | 1 | ||
| N11 | 461-314-590-4 | Пластина | 1 | ||
| N12 | 461-314-710-4 | PEDAL | 1 | ||
| N13 | @ | RIVET | 1 | ||
| N15 | 897-730-022-4 | Крышка педали | 1 | ||
| N16 | @ | WASHER | 1 | ||
| N17 | @ | PIN-GUIDE | 1 | ||
| N18 | @ | SPRING | 1 | ||
| N20 | @ | CAP | 1 | ||
| N21 | @ | SPRING | 1 | ||
| N22 | @ | BEARING-SLEEVE | 1 | ||
| N23 | @ | CAP | 1 | ||
| N24 | @ | BALL | 1 | ||
| N25 | @ | SPRING | 1 | ||
| N28 | @ | SPOOL | 1 | ||
| N29 | @ | RETAINER | 2 | ||
| N3 | @ | NUT | 1 | ||
| N30 | @ | SPRING | 1 | ||
| N31 | @ | SPOOL | 1 | ||
| N32 | @ | SPRING | 1 | ||
| N33 | @ | RING-SNAP | 1 | ||
| N34 | @ | WASHER | 1 | ||
| N35 | @ | PLUG | 1 | ||
| N36 | @ | BOLT | 4 | ||
| N38 | @ | NUT | 1 | ||
| N4 | @ | BOLT | 1 | ||
| N7 | @ | PIN | 1 |
