COWLING экскаватора колесного Hyundai R130W
COWLING экскаватора колесного Hyundai R130W со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:5020
Наименование:COWLING
Версия:

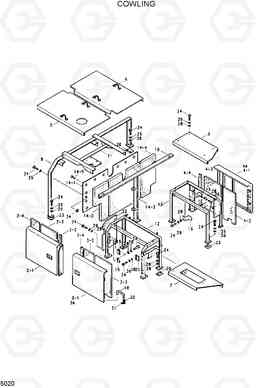

COWLING R130W
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 10 | 71E6-2310 | SUPPORT-MCV HOOD,RR | 1 | ||
| 11 | 71EA-23200 | SUPPORT-TP MCV HOOD | 1 | ||
| 13 | 71EA-23500 | SUPPORT-PUMP HOOD | 1 | ||
| 14 | 71EA-24100 | SCREEN ASSY | 1 | ||
| 14-1 | 71EA-24110 | SCREEN PLATE | 1 | ||
| 14-2 | 71E6-2403 | SPONGE | 1 | ||
| 14-3 | 71EA-24140 | SPONGE | 1 | ||
| 14-4 | 71EA-24130 | SPONGE | 1 | ||
| 14-5 | 71E1-5218 | PIN-CAP & GALV | 13 | ||
| 15 | E127-2099 | BRACKET-SIDE COVER | 3 | ||
| 16 | E271-2100 | BRACKET-COVER LOCK | 3 | ||
| 18 | E171-2014 | Опора | 3 | ||
| 2 | 71EA-21700 | SIDE COVER ASSY-LH,FR | 1 | ||
| 2-1 | 71EA-21710 | SIDE COVER WA-LH | 1 | ||
| 2-3 | 71E6-2165 | SPONGE | 1 | ||
| 2-4 | 71E3-2105 | RUBBER PAD | 1 | ||
| 20 | E171-2053 | Прокладка | 2 | ||
| 22 | E271-2166 | Прокладка | 6 | ||
| 23 | 71E3-2103 | Прокладка | 7 | ||
| 24 | S017-120252 | Болт с шестигранной головкой (под шестигранник) | 7 | ||
| 26 | S411-120002 | Шайба пружинная | 7 | ||
| 28 | S403-122002 | Плоская шайба | 7 | ||
| 3-1 | 71EA-21510 | SIDE COVER WA-LH | 1 | ||
| 3-2 | 71EA-21540 | SPONGE | 1 | ||
| 3-3 | 71E6-2171 | SPONGE | 1 | ||
| 3-4 | 71E3-2105 | RUBBER PAD | 1 | ||
| 31 | S461-250207 | Палец | 3 | ||
| 32 | S403-102002 | Плоская шайба | 3 | ||
| 33 | 71E6-2425 | SPONGE | 1 | ||
| 34 | S207-121002 | Гайка | 1 | ||
| 4 | 71EA-21600 | SIDE COVER ASSY-RH | 1 | ||
| 4-1 | 71EA-21610 | SIDE COVER WA-RH | 1 | ||
| 4-2 | 71E6-2153 | SPONGE | 1 | ||
| 4-3 | 71EA-21630 | SPONGE | 1 | ||
| 4-4 | 71E3-2105 | RUBBER PAD | 1 | ||
| 5 | 71EA-22000 | HOOD WA-MCV | 1 | ||
| 5 | 71EA-22000 | HOOD WA-MCV | 1 | ||
| 6 | 71EA-22200 | HOOD WA-SWING MOTOR | 1 | ||
| 7 | 71EA-22300 | HOOD-RADIATOR | 1 | ||
| 8 | 71EA-22500 | HOOD-PUMP | 1 | ||
| 9 | 71EA-23700 | SUPPORT-FR MCV HOOD | 1 | ||
| N12 | 71EA-23101 | SUPPORT-LH | 1 | ||
| N2-2 | 71EA-21720 | SPONGE | 1 | ||
| N3 | 71EA-21500 | SIDE COVER ASSY-LH,RR | 1 | ||
| N3A | SC-037 | SIDE COVER ASSY-LH,RR | 1 |
AIR VENT
|
|
| N4A | SC-034 | SIDE COVER ASSY-RH,RR | 1 |
AIR VENT
|
