Каталог запчастей
-
Hyundai
-
R140LC-7
- SIDE COWL ASSY(RH)
SIDE COWL ASSY(RH) экскаватора гусеничного Hyundai R140LC-7
SIDE COWL ASSY(RH) экскаватора гусеничного Hyundai R140LC-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6240
Наименование:SIDE COWL ASSY(RH)
Версия:2007. 4.30 REV.7D

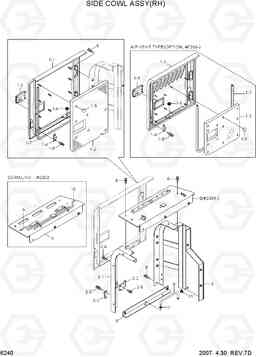

SIDE COWL ASSY(RH) R140LC-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 71N4-53002 | SIDE COWL ASSY-RH | 1 |
STD
|
|
| * | 71N4-53003 | SIDE COWL ASSY-RH | 1 |
STD
|
|
| * | 72N4-53000 | SIDE COWL ASSY-RH | 1 |
STD
|
|
| * | 72N4-53001 | SIDE COWL ASSY-RH | 1 |
STD
|
|
| * | 72N4-53001Y | SIDE COWL ASSY-RH | 1 |
STD
|
|
| * | 71N4-83000 | SIDE COWL ASSY-RH | 1 |
AIR VENT TYPE
|
|
| * | 72N4-83000 | SIDE COWL ASSY-RH | 1 |
AIR VENT TYPE
|
|
| * | 72N4-83001 | SIDE COWL ASSY-RH | 1 |
AIR VENT TYPE
|
|
| * | 72N4-83001Y | SIDE COWL ASSY-RH | 1 |
AIR VENT TYPE
|
|
| * | 72N4-58000 | SIDE COWL ASSY-RH | 1 |
PRE HEATER
|
|
| 1 | 71N4-53102 | SIDE COVER ASSY-RH | 1 |
STD
|
|
| 1 | 71N4-53102Y | SIDE COVER ASSY-RH | 1 |
STD, PRE HEATER
|
|
| 1 | 71N4-73100 | SIDE COVER ASSY-RH | 1 |
AIR VENT TYPE
|
|
| 1 | 71N4-73100Y | SIDE COVER ASSY-RH | 1 |
AIR VENT TYPE
|
|
| 1-1 | 71N4-53112 | SIDE COVER WA | 1 |
STD
|
|
| 1-1 | 71N4-73110 | SIDE COVER WA | 1 |
AIR VENT TYPE
|
|
| 1-2 | 71N4-53132 | SPONGE-SIDE COVER | 1 |
STD
|
|
| 1-2 | 71N4-73130 | SPONGE-SIDE COVER | 1 |
AIR VENT TYPE
|
|
| 1-3 | 71EE-52520 | CATCH ASSY | 1 |
BLACK
|
|
| 1-3 | 74N8-52520 | поймать сборе | 1 |
YELLOW
|
|
| 1-4 | 71EE-53530 | Стопор А | 1 | ||
| 1-5 | 71EM-51580 | Болт | 9 | ||
| 1-6 | S681-100400 | Уплотнительная втулка | 1 | ||
| 1-7 | S772-022630 | Уплотнитель | 1 | ||
| 1-8 | S035-061526 | Болт | 2 | ||
| 10 | 71N4-53820 | BAR-TORSION | 1 | ||
| 11 | S681-290400 | Уплотнительная втулка | 1 | ||
| 2 | 71N4-53281 | SUPPORT ASSY-RH(FR) | 1 | ||
| 2-1 | 71N4-53271 | SUPPOTR WA-RH(FR) | 1 | ||
| 2-2 | 71N8-52492 | плита замок | 1 | ||
| 2-3 | 71EE-53540 | Стопор Б | 1 | ||
| 2-4 | 71EH-13150 | бампер резины | 1 | ||
| 2-5 | S035-062026 | Болт | 2 | ||
| 2-6 | S037-122056 | Болт | 2 | ||
| 3 | 71N4-53202 | SUPPORT WA-RH(RR) | 1 |
STD, AIR VENT
|
|
| 3 | 72N4-53200 | SUPPORT WA-RH(RR) | 1 |
STD, AIR VENT
|
|
| 3 | 72N4-53201 | SUPPORT WA-RH(RR) | 1 |
STD, AIR VENT
|
|
| 3 | 72N4-58200 | SUPPORT WA-RH(RR) | 1 |
PRE HEATER
|
|
| 4 | 71N4-53302 | SUPPORT-BOTTOM | 1 | ||
| 5 | 71N4-53402 | HOOD WA-PUMP | 1 | ||
| 5 | 71N4-53403 | HOOD WA-PUMP | 1 | ||
| 5 | 72N4-53400 | HOOD WA-PUMP | 1 | ||
| 5 | 72N4-53401 | HOOD WA-PUMP | 1 | ||
| 6 | 71N8-52950 | Ручка | 1 | ||
| 7 | S681-100400 | Уплотнительная втулка | 1 | ||
| 8 | S037-122556 | Болт | 10 | ||
| 9 | 71N4-53810 | BAR-TORSION | 1 |
