Каталог запчастей
-
Hyundai
-
R140W-7
- SIDE COWL ASSY(LH)
SIDE COWL ASSY(LH) экскаватора колесного Hyundai R140W-7
SIDE COWL ASSY(LH) экскаватора колесного Hyundai R140W-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6210
Наименование:SIDE COWL ASSY(LH)
Версия:2006.11.30 REV.6L

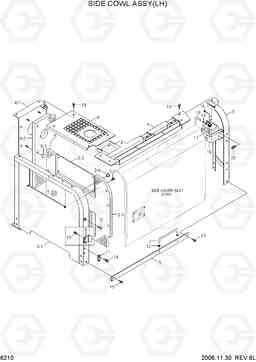

SIDE COWL ASSY(LH) R140W-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 72N4-52002 | SIDE COWL ASSY-LH | 1 |
STD
|
|
| * | 72N4-52003 | SIDE COWL ASSY-LH | 1 |
STD
|
|
| * | 72N4-52003Y | SIDE COWL ASSY-LH | 1 |
STD
|
|
| * | 72N4-52004 | SIDE COWL ASSY-LH | 1 | ||
| * | 72N4-57000 | SIDE COWL ASSY-LH | 1 |
SMALL CLEANER
|
|
| * | 72N4-57001 | SIDE COWL ASSY-LH | 1 |
SMALL CLEANER
|
|
| * | 72N4-57001Y | SIDE COWL ASSY-LH | 1 |
SMALL CLEANER
|
|
| * | 72N4-82000 | SIDE COWL ASSY-LH | 1 |
AIR VENT TYPE
|
|
| * | 72N4-82001 | SIDE COWL ASSY-LH | 1 |
AIR VENT TYPE
|
|
| * | 72N4-82001Y | SIDE COWL ASSY-LH | 1 |
AIR VENT TYPE
|
|
| * | 72N4-82002 | SIDE COWL ASSY-LH | 1 | ||
| * | 72N4-82100 | SIDE COWL ASSY-LH | 1 |
A/VENT,SMALL
|
|
| * | 72N4-82101 | SIDE COWL ASSY-LH | 1 |
A/VENT,SMALL
|
|
| * | 72N4-82101Y | SIDE COWL ASSY-LH | 1 |
A/VENT,SMALL
|
|
| * | 72N4-85000 | SIDE COWL ASSY-LH | 1 |
LOUVER TYPE
|
|
| * | 72N4-85001 | SIDE COWL ASSY-LH | 1 |
LOUVER TYPE
|
|
| * | 72N4-85001Y | SIDE COWL ASSY-LH | 1 |
LOUVER TYPE
|
|
| * | 72N4-85002 | SIDE COWL ASSY-LH | 1 | ||
| 1 | @ | SIDE COVER ASSY-LH | 1 |
SEE 6230
|
|
| 10 | 71EH-13150 | бампер резины | 1 | ||
| 11 | 71EE-53540 | Стопор Б | 1 | ||
| 12 | S681-100400 | Уплотнительная втулка | 1 | ||
| 13 | S037-122552 | Болт | 19 | ||
| 14 | S035-062022 | Болт | 2 | ||
| 15 | @ | AIR CLEANER ASSY | 1 |
SEE 6220
|
|
| 16 | 11EN-42330 | Бак | 1 | ||
| 16 | 11N4-47010 | Бак | 1 | ||
| 16-1 | 11EN-42400 | Резервуар датчика | 1 | ||
| 17 | 11ER-42530 | PLATE-CLAMP | 2 | ||
| 18 | 11E3-4011 | Шланг | 1 | ||
| 19 | S520-015000 | Зажим | 1 | ||
| 2 | 72N4-52300 | SUPPORT ASSY-LH(FR) | 1 |
SMALL CLEANER
|
|
| 2 | 72N4-62300 | SUPPORT ASSY-LH(FR) | 1 | ||
| 2-1 | 72N4-52310 | SUPPORT WA-LH(FR) | 1 |
SMALL CLEANER
|
|
| 2-1 | 72N4-62310 | SUPPORT WA-LH(FR) | 1 | ||
| 2-2 | 71N8-52322 | Защита | 1 | ||
| 2-3 | 72N4-52330 | SPONGE | 1 |
SMALL CLEANER
|
|
| 2-3 | 72N4-62330 | SPONGE | 1 | ||
| 2-4 | 71EM-51580 | Болт | 12 | ||
| 2-5 | S037-122052 | Болт | 4 | ||
| 20 | S035-082022 | Болт | 2 | ||
| 3 | 72N4-52500 | SUPPORT WA-LH(RR) | 1 | ||
| 4 | 72N4-52601 | HOOD WA-R/D | 1 | ||
| 4 | 72N4-52602 | HOOD WA-R/D | 1 | ||
| 5 | 71N4-62700 | SUPPORT-LH/BOTTOM | 1 | ||
| 6 | 72N4-52901 | SCREEN ASSY-MCV | 1 | ||
| 6 | 72N4-52902 | SCREEN ASSY-MCV | 1 | ||
| 6-1 | 72N4-52910 | SCREEN-MCV | 1 | ||
| 6-1 | 72N4-52911 | SCREEN-MCV | 1 | ||
| 6-1 | 72N4-52912 | SCREEN-MCV | 1 | ||
| 6-2 | 72N4-52920 | SPONGE | 1 | ||
| 6-2 | 72N4-52921 | SPONGE | 1 | ||
| 6-2 | 72N4-52922 | SPONGE | 1 | ||
| 6-3 | 71EM-51580 | Болт | 8 | ||
| 7 | 71N8-52950 | Ручка | 1 | ||
| 8 | 72N4-55100 | HOOD-AIR CLEANER | 1 | ||
| 8 | 72N4-55101 | HOOD-AIR CLEANER | 1 | ||
| 9 | 71N8-52492 | плита замок | 1 |
