REMOTE CONTROL PEDAL(BOOM SWING) экскаватора гусеничного Hyundai R16-9
REMOTE CONTROL PEDAL(BOOM SWING) экскаватора гусеничного Hyundai R16-9 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4520
Наименование:REMOTE CONTROL PEDAL(BOOM SWING)
Версия:

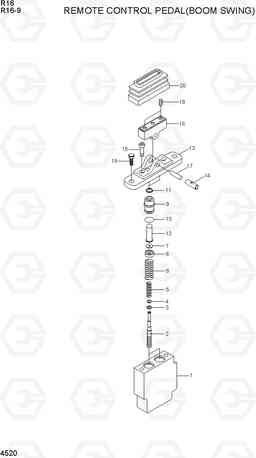

REMOTE CONTROL PEDAL(BOOM SWING) R16-9
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT SUPPLIED PARTS | AR | ||
| * | 31MH-20050 | Педаль управления в сборе | 1 | ||
| *-1 | XKAY-00715 | SPOOL KIT | 2 | ||
| *-2 | XKAY-00709 | PLUG KIT | 1 | ||
| 1 | XKAY-00716 | BODY | 1 | ||
| 16 | XKAY-00703 | CAM | 1 | ||
| 20 | XKAY-00699 | BELLOWS | 1 | ||
| N10 | @ | O-RING | 2 | ||
| N11 | @ | SEAL-ROD | 2 | ||
| N12 | @ | ROD-PUSH | 2 | ||
| N13 | @ | COVER | 1 | ||
| N14 | @ | BUSHING-DU | 1 | ||
| N15 | @ | BOLT-SOCKET | 2 | ||
| N17 | @ | PIN | 2 | ||
| N18 | @ | SCREW-ADJUST | 2 | ||
| N19 | @ | BOLT-SOCKET | 3 | ||
| N2 | @ | SPOOL | 1 | ||
| N3 | @ | SEAT-SPRING | 1 | ||
| N4 | @ | SHIM | 1 | ||
| N5 | @ | SPRING | 1 | ||
| N6 | @ | SEAT-SPRING | 1 | ||
| N7 | @ | STOPPER | 1 | ||
| N8 | @ | SPRING | 2 | ||
| N9 | @ | PLUG | 1 |
