BRAKE VALVE(-#0362) экскаватора колесного Hyundai R170W-3
BRAKE VALVE(-#0362) экскаватора колесного Hyundai R170W-3 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2076
Наименование:BRAKE VALVE(-#0362)
Версия:2001.12.31 REV.13

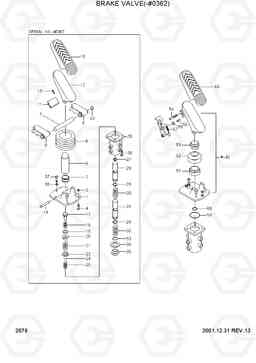

BRAKE VALVE(-#0362) R170W-3
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 81L1-0005 | BRAKE VALVE | 1 | ||
| * | 31EM-30110 | BRAKE VALVE | 1 |
SEE 2076A
|
|
| 1 | 4674067992 | PLATE-BASE | 1 | ||
| 6 | 8977548654 | BELLOWS | 1 | ||
| N | @ | NOT INDIVIDUALLY SUPPLIED | AR | ||
| N*-40 | 4679017812 | COMPLET OPERATOR | 1 |
ITEM 51-57
|
|
| N*-50 | 4674069212 | Ремкомплект | 1 |
ITEM 51-59
|
|
| N10 | @ | RING | 12 | ||
| N11 | @ | PLATE | 12 | ||
| N12 | @ | PEDAL | 1 | ||
| N13 | @ | RIVET | 1 | ||
| N14 | @ | PIN | 1 | ||
| N15 | 8977300224 | Крышка педали | 2 | ||
| N17 | @ | PIN-GUIDE | 2 | ||
| N18 | @ | SPRING | 1 | ||
| N19 | 8951514204 | Шайба | 1 | ||
| N2 | @ | BUSHING | 1 | ||
| N20 | @ | CAP | 1 | ||
| N21 | @ | SPRING | 1 | ||
| N23 | @ | CAP | 2 | ||
| N24 | @ | BALL | 4 | ||
| N25 | @ | SPRING | 1 | ||
| N26 | @ | HOUSING | 1 | ||
| N27 | 8971620804 | RING-GROOVED | 1 | ||
| N28 | @ | SPOOL | 4 | ||
| N29 | @ | RETAINER | 4 | ||
| N3 | @ | NUT | 1 | ||
| N30 | @ | SPRING | 1 | ||
| N31 | @ | SPOOL | 1 | ||
| N32 | @ | SPRING | 1 | ||
| N33 | @ | RING-SNAP | 1 | ||
| N34 | @ | WASHER | 1 | ||
| N35 | @ | PLUG | 1 | ||
| N36 | @ | BOLT | 4 | ||
| N37 | 8912115704 | Болт | 1 | ||
| N38 | @ | NUT | 1 | ||
| N4 | @ | BOLT | 1 | ||
| N5 | @ | PISTON | 1 | ||
| N51 | @ | FASTENER | 1 | ||
| N52 | @ | BOOT | 1 | ||
| N53 | @ | FASTENER | 1 | ||
| N54 | @ | SCREW-SET | 1 | ||
| N55 | @ | INSERT | 1 | ||
| N56 | @ | SCREW-CHEESE HEAD | 1 | ||
| N57 | @ | SPRING-TENSION | 1 | ||
| N58 | @ | O-RING | 1 | ||
| N59 | @ | SEAL-LIP | 1 | ||
| N60 | 8977300224 | Крышка педали | 1 | ||
| N7 | @ | PIN | 1 | ||
| N8 | @ | BRACKET | 1 | ||
| N9 | @ | BRACKET | 1 |
