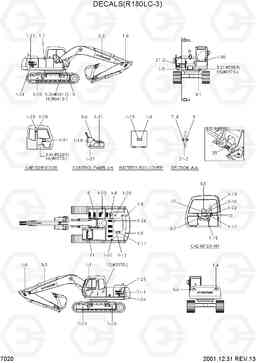

DECALS(R180LC-3) экскаватора гусеничного Hyundai R180LC-3
DECALS(R180LC-3) экскаватора гусеничного Hyundai R180LC-3 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7020
Наименование:DECALS(R180LC-3)
Версия:2001.12.31 REV.13
DECALS(R180LC-3) R180LC-3
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 91EL-00200 | DECAL KIT(A) | 1 | ||
| 1 | 91EL-00201 | DECAL KIT(A) | 1 | ||
| 1 | 91EL-00202 | DECAL KIT(A) | 1 | ||
| 1 | 91EL-00203 | DECAL KIT(A) | 1 | ||
| 1-1 | 91E1-21210 | DECAL-TRADE MARK | 1 | ||
| 1-10 | 91E1-26020 | AIR CLEANER | 1 | ||
| 1-11 | 91E1-26030 | Крышка радиатора | 1 | ||
| 1-12 | 91E1-26040 | ANTIFREEZE | 1 | ||
| 1-13 | 91E1-28020 | DECAL-AIR VENT | 1 | ||
| 1-14 | 91E1-28031 | INTERFERENCE | 1 | ||
| 1-15 | 91E1-28051 | SAFETY INSTRUCTION | 1 | ||
| 1-17 | 91E1-28081 | MAX HEIGHT REACH | 1 | ||
| 1-18 | 91E1-29060 | SAFETY IDEOGRAM | 1 | ||
| 1-2 | 91E1-14110 | NAME PLATE | 1 | ||
| 1-20 | 91E1-29080 | DECAL-SLINGING | 4 | ||
| 1-21 | 91E1-24050 | SIDE KEEP CLEAR | 2 | ||
| 1-22 | 91E1-25511 | FUELING | 1 | ||
| 1-23 | 91E1-26051 | DECAL-EXHAUST | 1 | ||
| 1-24 | 91E1-26060 | STAY-FIX | 2 | ||
| 1-25 | 91E1-26070 | BATTERY-DECAL | 1 | ||
| 1-26 | 91E1-26090 | MARK-HOOD | 1 | ||
| 1-27 | 91E1-28111 | SAFETY LEVER | 1 | ||
| 1-27 | 91E1-28112 | SAFETY LEVER | 1 | ||
| 1-28 | 91E1-28220 | LOGO-FIRE | 1 | ||
| 1-29 | 91E1-28230 | LOGO-HAMMER | 1 | ||
| 1-3 | 91E1-24021 | TRANSPORTING | 1 | ||
| 1-30 | 91E1-28280 | SAFE-FRONT WINDOW | 1 | ||
| 1-31 | 91E1-28310 | DECAL-LATCH | 2 | ||
| 1-32 | 91E1-28290 | SERVICE SOCKET | 1 | ||
| 1-4 | 91E1-24041 | KEEP CLEAR | 2 | ||
| 1-4 | 91E1-24042 | KEEP CLEAR | 2 | ||
| 1-5 | 91E1-24520 | LIFTING EYE | 2 | ||
| 1-6 | 91E1-24610 | DECAL-SAFETY TRAVEL | 2 | ||
| 1-7 | 91E1-25011 | HYD OIL LEVEL | 1 | ||
| 1-7 | 91E1-25012 | HYD OIL LEVEL | 1 | ||
| 1-8 | 91E1-25020 | HYD OIL LUB | 1 | ||
| 1-9 | 91E1-26010 | ELECTROLYTE | 1 | ||
| 10 | 91E1-28070 | SWING LOCK | 1 | ||
| 11 | 91E1-28960 | SWING IDEOGRAM | 1 | ||
| 12 | 91E1-27110 | Наклейка л / выбросов ENG | 1 |
LOW EMISSION
|
|
| 13 | 91E1-23670 | NOISE LEVEL-LWA | 1 | ||
| 13 | 91E1-23640 | NOISE LEVEL-LWA | 1 |
LOW EMISSION
|
|
| 13 | 91N6-22140 | Наклейка шума LWA / 104 дБ | 1 |
LOW EMISSION
|
|
| 14 | 91EL-27011 | SERVICE INSTRUCTION | 1 |
R180LC-3
|
|
| 14 | 91EL-27012 | SERVICE INSTRUCTION | 1 |
R180LC-3
|
|
| 14 | 91EL-27120 | SERVICE INSTRUCTION | 1 |
R180LCD-3
|
|
| 14 | 91EL-27020 | SERVICE INSTRUCTION | 1 |
LOW EMISSION
|
|
| 14 | 91EL-27021 | SERVICE INSTRUCTION | 1 |
LOW EMISSION
|
|
| 15 | 91E1-14110 | NAME PLATE | 1 |
R180LC-3
|
|
| 15 | 91E1-14130 | NAME PLATE | 1 |
EU ONLY
|
|
| 21 | 91EL-11200 | DECAL TRADE MARK | 1 |
R180LC-3
|
|
| 21 | 91EL-11201 | DECAL TRADE MARK | 1 |
R180LC-3
|
|
| 21 | 91EL-11300 | DECAL TRADE MARK | 1 |
R180LCD-3
|
|
| 21 | 91EL-11301 | DECAL TRADE MARK | 1 |
R180LCD-3
|
|
| 21-1 | 91EL-11210 | MODEL NAME | 2 |
R180LC-3
|
|
| 21-1 | 91EL-11310 | MODEL NAME | 2 |
R180LCD-3
|
|
| 21-2 | 91EL-11220 | NUMBER PLATE | 1 |
R180LC-3
|
|
| 21-2 | 91EL-11320 | NUMBER PLATE | 1 |
R180LCD-3
|
|
| 22 | 91EL-28200 | LIFTING CHART | 1 |
R180LCD-3
|
|
| 22-1 | 91EL-28010 | LIFTING CHART | 1 |
R180LC-3
|
|
| 22-1 | 91EL-28011 | LIFTING CHART | 1 |
R180LC-3
|
|
| 22-1 | 91EL-28210 | LIFTING CHART | 1 |
R180LCD-3
|
|
| 22-2 | 91EL-28020 | LIFTING CHART | 1 | ||
| 22-3 | 91EL-28030 | LIFTING CHART | 1 | ||
| 22-4 | 91EL-28040 | LIFTING CHART | 1 | ||
| 22-5 | 91EL-28050 | LIFTING CHART | 1 |
R180LC-3
|
|
| 22-5 | 91EL-28220 | LIFTING CHART | 1 |
R180LCD-3
|
|
| 22-6 | 91EL-28060 | LIFTING CHART | 1 |
2 PIECE BOOM
|
|
| 22-7 | 91EL-28070 | LIFTING CHART | 1 |
2 PIECE BOOM
|
|
| 25 | 94E7-00500 | GREASE LINE | 1 | ||
| 3 | 91EL-00210 | DECAL KIT(B) | 1 |
R180LC-3
|
|
| 3 | 91EL-00211 | DECAL KIT(B) | 1 |
R180LC-3
|
|
| 3 | 91EL-00212 | DECAL KIT(B) | 1 |
R180LC-3
|
|
| 3 | 91EL-00213 | DECAL KIT(B) | 1 |
R180LC-3
|
|
| 3 | 91EL-00240 | DECAL KIT(B) | 1 |
R180LCD-3
|
|
| 3 | 91EL-00241 | DECAL KIT(B) | 1 |
R180LCD-3
|
|
| 3-1 | 91E1-23120 | NOISE LEVEL-LPA | 1 | ||
| 3-1 | 91E1-23110 | NOISE LEVEL-LPA | 1 | ||
| 3-2 | 91E1-23630 | NOISE LEVEL-LWA | 1 | ||
| 3-2 | 91E1-23670 | NOISE LEVEL-LWA | 1 | ||
| 3-3 | 91E1-21060 | DECAL-TRADE MARK | 2 | ||
| 3-4 | 91EL-27010 | SERVICE INSTRUCTION | 1 | ||
| 3-4 | 91EL-27011 | SERVICE INSTRUCTION | 1 | ||
| 3-5 | 91E6-29021 | CONTROL IDEOGRAM | 1 |
R180LC-3
|
|
| 3-5 | 91E6-29121 | CONTROL IDEOGRAM | 1 |
R180LCD-3
|
|
| 3-6 | 91E6-29041 | CONTROL IDEOGRAM-LH | 1 |
R180LC-3
|
|
| 3-6 | 91E6-29151 | CONTROL IDEOGRAM-LH | 1 |
R180LCD-3
|
|
| 3-7 | 91E1-29052 | CONTROL IDEOGRAM-RH | 1 | ||
| 5 | 91E1-26300 | Наклейка шаг протектора | 6 | ||
| 6 | E171-1246 | RIVET | 4 | ||
| 6 | 91EK-12010 | RIVET | 4 | ||
| 7 | S175-080202 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 8 | S403-082002 | Плоская шайба | 2 | ||
| 9 | S205-081002 | Гайка | 2 | ||
| N22 | 91EL-28000 | LIFTING CHART | 1 |
R180LC-3
|
|
| N22 | 91EL-28001 | LIFTING CHART | 1 |
R180LC-3
|
