DECALS(R200/R210) экскаватора гусеничного Hyundai R200LC
DECALS(R200/R210) экскаватора гусеничного Hyundai R200LC со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7020
Наименование:DECALS(R200/R210)
Версия:

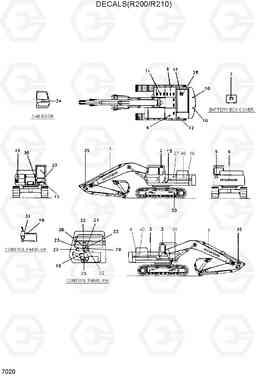

DECALS(R200/R210) R200LC
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 91E1-03010 | DECAL ASSY | 1 |
R200
|
|
| * | 91E1-03020 | DECAL ASSY | 1 |
R210
|
|
| 1 | 91E1-1001 | TRADE MARK-BOOM | 2 |
R200
|
|
| 10 | 91E1-24520 | LIFTING EYE | 1 | ||
| 11 | 91E1-26300 | Наклейка шаг протектора | 10 | ||
| 12 | 91E1-26020 | AIR CLEANER | 1 | ||
| 13 | 91E1-14010 | PIN PLATE | 1 | ||
| 14 | 91E1-24020 | TRANSPORTING | 1 | ||
| 15 | E191-1131 | SIDE CHARACTER(A)-LH | 1 | ||
| 16 | 91E1-1051 | SIDE CHARACTER(B)-LH | 1 |
R200
|
|
| 16 | 91E1-22120 | SIDE CHARACTER(B)-LH | 1 |
R210
|
|
| 17 | 91E1-26040 | ANTIFREEZE | 1 | ||
| 18 | 91E1-29050 | CONTROL IDEOGRAM | 1 | ||
| 19 | 91E1-29030 | CONTROL IDEOGRAM | 1 | ||
| 2 | 91E1-1226 | TRADE MARK-CAB | 2 | ||
| 20 | 91E1-28050 | SAFETY INSTRUCTION | 1 | ||
| 21 | 91E1-28020 | DECAL-AIR VENT | 1 | ||
| 22 | 91E1-28080 | MAX HEIGHT REACH | 1 | ||
| 23 | 91E1-28060 | ENGINE START | 1 | ||
| 24 | 91E1-27010 | SERVICE INSTRUCTION | 1 | ||
| 25 | 91E1-29060 | SAFETY IDEOGRAM | 1 | ||
| 26 | E171-1246 | RIVET | 4 | ||
| 27 | 91E1-25010 | HYD OIL LEVEL | 1 | ||
| 28 | 91E1-26030 | Крышка радиатора | 1 | ||
| 29 | 91E1-28070 | SWING LOCK | 1 | ||
| 3 | E191-1165 | SIDE CHARACTER(A)-RH | 1 | ||
| 30 | 91E1-29080 | SLINGING IDEOGRAM | 4 | ||
| 31 | 91E1-29070 | SWING IDEOGRAM | 1 | ||
| 32 | 91E1-29010 | CONTROL IDEOGRAM | 1 | ||
| 33 | 91E1-28030 | INTERFERENCE | 1 | ||
| 35 | 91E1-24610 | DECAL-SAFETY TRAVEL | 2 | ||
| 36 | 91E1-23150 | NOISE LEVEL-LPA | 1 | ||
| 37 | 91E1-23660 | NOISE LEVEL-LWA | 1 | ||
| 38 | 91E1-28010 | LIFTING CHART | 1 | ||
| 39 | 91E1-14110 | DECAL-PIN PLATE | 1 | ||
| 4 | 91E1-1052 | SIDE CHARACTER(B)-RH | 1 |
R200
|
|
| 4 | 91E1-22520 | SIDE CHARACTER(B)-RH | 1 |
R210
|
|
| 40 | 91E1-24050 | SIDE KEEP CLEAR | 2 | ||
| 5 | 91E1-24510 | KEEP CLEAR | 1 | ||
| 6 | 91E1-1227 | TRADE MARK-CWT | 1 | ||
| 7 | 91E1-26010 | ELECTROLYTE | 1 | ||
| 8 | 91E1-25530 | FUELING | 1 | ||
| 9 | 91E1-25020 | HYD OIL LUB | 1 |
