Каталог запчастей
-
Hyundai
-
R200W-7A
- UNDER COVER
UNDER COVER экскаватора колесного Hyundai R200W-7A
UNDER COVER экскаватора колесного Hyundai R200W-7A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6260
Наименование:UNDER COVER
Версия:2009. 8.31 REV.9H

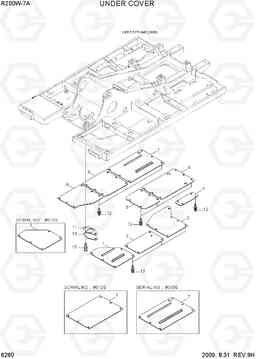

UNDER COVER R200W-7A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 41N6-11110 | UNDER COVER-CAB(A) | 1 | ||
| 1 | 41N6-11110BG | UNDER COVER-CAB(A) | 1 | ||
| 1 | 41N6-11111BG | UNDER COVER-CAB(A) | 1 | ||
| 10 | 41N6-10100BG | Крышка | 1 | ||
| 10 | 41N6-10100 | Крышка | 1 | ||
| 11 | 41E9-1306 | Сальник | 1 | ||
| 12 | S037-102566 | Болт | 49 | ||
| 13 | S037-102056 | Болт барашек / шестигранная шайба | 2 | ||
| 13 | S037-102556 | Болт | 2 | ||
| 2 | 41N6-11120 | UNDER COVER-CAB(B) | 1 | ||
| 2 | 41N6-11120BG | UNDER COVER-CAB(B) | 1 | ||
| 3 | 41N6-11130 | UNDER COVER-CAB(C) | 1 | ||
| 3 | 41N6-11130BG | UNDER COVER-CAB(C) | 1 | ||
| 4 | 41N6-11040 | UNDER COVER-RAD | 1 | ||
| 4 | 41N6-11040BG | UNDER COVER-RAD | 1 | ||
| 5 | 41N6-11150 | UNDER COVER-MCV | 1 | ||
| 5 | 41N6-11150BG | UNDER COVER-MCV | 1 | ||
| 6 | 41N6-11160 | Крышка двигателя верхняя (решетка) | 1 | ||
| 6 | 41N6-11160BG | Крышка двигателя верхняя (решетка) | 1 | ||
| 7 | 41N6-11170 | UNDER COVER-PUMP | 1 | ||
| 7 | 41N6-11170BG | UNDER COVER-PUMP | 1 | ||
| 7 | 41N6-11171BG | UNDER COVER-PUMP | 1 | ||
| 7 | 41N6-11172BG | UNDER COVER-PUMP | 1 | ||
| 8 | 41N6-11180 | UNDER COVER-H/TANK | 1 | ||
| 8 | 41N6-11180BG | UNDER COVER-H/TANK | 1 | ||
| 9 | 41N6-11190 | UNDER COVER-F/TANK | 1 | ||
| 9 | 41N6-11190BG | UNDER COVER-F/TANK | 1 |
