Каталог запчастей
-
Hyundai
-
R210LC-7
- SIDE COWL ASSY(RH)
SIDE COWL ASSY(RH) экскаватора гусеничного Hyundai R210LC-7
SIDE COWL ASSY(RH) экскаватора гусеничного Hyundai R210LC-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6240
Наименование:SIDE COWL ASSY(RH)
Версия:2014. 1.31 REV.14A

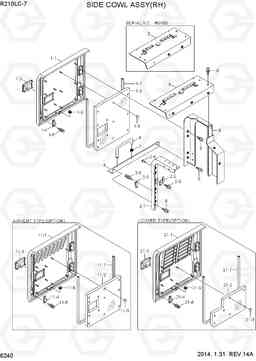

SIDE COWL ASSY(RH) R210LC-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 71N6-53001 | SIDE COWL ASSY-RH | 1 |
STD
|
|
| * | 71N6-53002 | SIDE COWL ASSY-RH | 1 |
STD
|
|
| * | 72N6-53001 | SIDE COWL ASSY-RH | 1 |
STD
|
|
| * | 72N6-53001Y | SIDE COWL ASSY-RH | 1 |
STD
|
|
| * | 71N6-63000 | SIDE COWL ASSY-RH | 1 |
AIRVENT
|
|
| * | 71N6-63001 | SIDE COWL ASSY-RH | 1 |
AIRVENT
|
|
| * | 72N6-63001 | SIDE COWL ASSY-RH | 1 |
AIRVENT
|
|
| * | 72N6-63001Y | SIDE COWL ASSY-RH | 1 |
AIRVENT
|
|
| * | 72N6-53010 | SIDE COWL ASSY-RH | 1 |
PRE HEATING
|
|
| * | 72N6-53010Y | SIDE COWL ASSY-RH | 1 |
PRE HEATING
|
|
| * | 72N6-83000 | SIDE COWL ASSY-RH | 1 |
LOUVER
|
|
| * | 72N6-83000Y | SIDE COWL ASSY-RH | 1 |
LOUVER
|
|
| 1 | 71N6-53102 | SIDE COVER ASSY-RH | 1 |
STD
|
|
| 1 | 71N6-53103 | SIDE COVER ASSY-RH | 1 |
STD,PRE HEATING
|
|
| 1 | 71N6-53103Y | SIDE COVER ASSY-RH | 1 |
STD,PRE HEATING
|
|
| 1-1 | 71N6-53112 | COVER WA-RH | 1 | ||
| 1-1 | 71N6-53113 | COVER WA-RH | 1 | ||
| 1-2 | 71N6-53132 | SPONGE | 1 | ||
| 1-3 | 71EE-52520 | CATCH ASSY | 1 |
BLACK
|
|
| 1-3 | 74N8-52520 | поймать сборе | 1 |
YELLOW
|
|
| 1-4 | 71EE-53531 | Стопор А | 1 | ||
| 1-5 | 71EM-51580 | Болт | 12 | ||
| 1-6 | S681-100400 | Уплотнительная втулка | 1 | ||
| 1-7 | S772-017200 | Уплотнитель | 1 | ||
| 1-7 | S772-025500 | Уплотнитель | 1 | ||
| 1-8 | S035-061622 | Болт | 2 | ||
| 11 | 71N6-73100 | SIDE COVER ASSY-RH | 1 |
AIRVENT
|
|
| 11 | 71N6-73101 | SIDE COVER ASSY-RH | 1 |
AIRVENT
|
|
| 11 | 71N6-73101Y | SIDE COVER ASSY-RH | 1 |
AIRVENT
|
|
| 11-1 | 71N6-73110 | COVER WA-RH | 1 | ||
| 11-1 | 71N6-73111 | COVER WA-RH | 1 | ||
| 11-2 | 71N6-73130 | SPONGE | 1 | ||
| 11-3 | 71EE-52520 | CATCH ASSY | 1 |
BLACK
|
|
| 11-3 | 74N8-52520 | поймать сборе | 1 |
YELLOW
|
|
| 11-4 | 71EE-53531 | Стопор А | 1 | ||
| 11-5 | 71EM-51580 | Болт | 10 | ||
| 11-6 | S681-100400 | Уплотнительная втулка | 1 | ||
| 11-7 | S772-025500 | Уплотнитель | 1 | ||
| 11-8 | S035-061622 | Болт | 2 | ||
| 2 | 71N6-53260 | SUPPORT ASSY-RH(FR) | 1 | ||
| 2-1 | 71N6-53270 | SUPPORT WA-RH(FR) | 1 | ||
| 2-2 | 71N8-52492 | плита замок | 1 | ||
| 2-3 | 71EE-53540 | Стопор Б | 1 | ||
| 2-4 | 71EH-13150 | бампер резины | 1 | ||
| 2-5 | S035-062022 | Болт | 2 | ||
| 2-6 | S037-122052 | Болт | 2 | ||
| 21 | 72N6-83100 | SIDE COVER ASSY-RH | 1 | ||
| 21 | 72N6-83100Y | SIDE COVER ASSY-RH | 1 | ||
| 21-1 | 72N6-83110 | COVER WA-RH | 1 | ||
| 21-2 | 72N6-82230 | SPONGE | 1 | ||
| 21-3 | 71EE-52520 | CATCH ASSY | 1 |
BLACK
|
|
| 21-3 | 74N8-52520 | поймать сборе | 1 |
YELLOW
|
|
| 21-4 | 71EE-53531 | Стопор А | 1 | ||
| 21-5 | 71EM-51580 | Болт | 8 | ||
| 21-6 | S681-100400 | Уплотнительная втулка | 1 | ||
| 21-7 | S772-025500 | Уплотнитель | 1 | ||
| 21-8 | S035-061622 | Болт | 2 | ||
| 3 | 71N6-53202 | SUPPORT WA-RH(RR) | 1 |
STD, AIRVENT
|
|
| 3 | 71N6-53203 | SUPPORT WA-RH(RR) | 1 |
STD, AIRVENT
|
|
| 3 | 72N6-53200 | SUPPORT WA-RH(RR) | 1 |
STD, AIRVENT
|
|
| 3 | 72N6-53900 | SUPPORT WA-RH(RR) | 1 |
P/HEAT, LOUVER
|
|
| 4 | 71N6-53301 | SUPPORT-RH(BOTTOM) | 1 | ||
| 4 | 71N6-53302 | SUPPORT-RH(BOTTOM) | 1 | ||
| 5 | 71N6-53402 | HOOD WA-PUMP | 1 | ||
| 5 | 72N6-53400 | HOOD WA-PUMP | 1 | ||
| 6 | 71N8-52950 | Ручка | 1 | ||
| 7 | S681-100400 | Уплотнительная втулка | 1 | ||
| 8 | S037-122552 | Болт | 10 |
