Каталог запчастей
-
Hyundai
-
R210LC-7
- UNDER COVER
UNDER COVER экскаватора гусеничного Hyundai R210LC-7
UNDER COVER экскаватора гусеничного Hyundai R210LC-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6260
Наименование:UNDER COVER
Версия:2013. 9.30 REV.13J

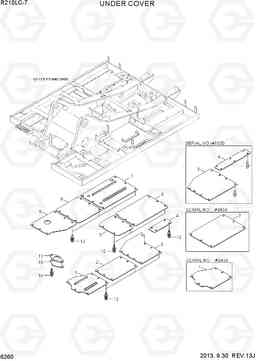

UNDER COVER R210LC-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 41N6-10011 | UNDER COVER-CAB(A) | 1 | ||
| 1 | 41N6-10012 | UNDER COVER-CAB(A) | 1 | ||
| 1 | 41N6-10012BG | UNDER COVER-CAB(A) | 1 | ||
| 1 | 41N6-10013BG | UNDER COVER-CAB(A) | 1 | ||
| 10 | 41N6-10100 | Крышка | 1 | ||
| 11 | 41E9-1306 | Сальник | 1 | ||
| 12 | S037-102562 | Болт | 55 | ||
| 12 | S037-102562 | Болт | 53 | ||
| 14 | S037-102052 | Болт | 2 | ||
| 14 | S037-102556 | Болт | 2 | ||
| 2 | 41N6-10021 | UNDER COVER-CAB(B) | 1 | ||
| 2 | 41N6-10021BG | UNDER COVER-CAB(B) | 1 | ||
| 3 | 41N6-10031 | UNDER COVER-CAB(C) | 1 | ||
| 3 | 41N6-11030 | UNDER COVER-CAB(C) | 1 | ||
| 3 | 41N6-11030BG | UNDER COVER-CAB(C) | 1 | ||
| 4 | 41N6-10041 | UNDER COVER-RAD | 1 | ||
| 4 | 41N6-11040 | UNDER COVER-RAD | 1 | ||
| 4 | 41N6-11040BG | UNDER COVER-RAD | 1 | ||
| 5 | 41N6-10051 | UNDER COVER-MCV | 1 | ||
| 5 | 41N6-10051BG | UNDER COVER-MCV | 1 | ||
| 6 | 41N6-10061 | Крышка двигателя верхняя (решетка) | 1 | ||
| 6 | 41N6-10061BG | Крышка двигателя верхняя (решетка) | 1 | ||
| 7 | 41N6-10071 | UNDER COVER-PUMP | 1 | ||
| 7 | 41N6-10071BG | UNDER COVER-PUMP | 1 | ||
| 7 | 41N6-10072BG | UNDER COVER-PUMP | 1 | ||
| 8 | 41N6-10081 | UNDER COVER-H/TANK | 1 | ||
| 8 | 41N6-10081BG | UNDER COVER-H/TANK | 1 | ||
| 9 | 41N6-10091 | UNDER COVER-F/TANK | 1 | ||
| 9 | 41N6-10091BG | UNDER COVER-F/TANK | 1 |
