Каталог запчастей
-
Hyundai
-
R210LC-7
- DECALS(-#0118)
DECALS(-#0118) экскаватора гусеничного Hyundai R210LC-7
DECALS(-#0118) экскаватора гусеничного Hyundai R210LC-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:8100
Наименование:DECALS(-#0118)
Версия:2008. 11.30 REV.8L

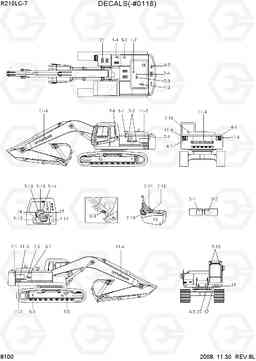

DECALS(-#0118) R210LC-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | @ | DECAL KIT GROUP | 1 | ||
| * | 91N6-00100 | DECAL KIT | 1 | ||
| * | 90N6-10101 | DECAL TRADE MARK | 1 | ||
| 1-1 | 91N6-01101 | Фильтр кондиционера | 1 | ||
| 1-2 | 91N6-01110 | Крышка турбокомпрессора (турбины) | 1 | ||
| 1-3 | 91N6-01120 | Крышка радиатора | 1 | ||
| 1-4 | 91N6-01130 | Наклейка заправки | 1 | ||
| 11 | 91N6-10100 | TRADE MARK ASSY | 1 | ||
| 11-1 | 91N6-17110 | DECAL-MODEL NAME-LH | 1 | ||
| 11-2 | 91N6-17120 | DECAL-MODEL NAME, RH | 1 | ||
| 11-3 | 91N6-17140 | LOGO/ROBEX | 2 | ||
| 11-4 | 91E1-21110 | DECAL-TRADE MARK | 3 | ||
| 11-6 | 91N6-04101 | DECAL-KEEP CLEAR/REF | 2 | ||
| 12 | 91E1-23060 | NOISE LEVEL-LPA | 1 |
EU
|
|
| 12 | 91E1-23080 | NOISE LEVEL-LPA | 1 |
EU
|
|
| 13 | 91E1-23630 | NOISE LEVEL-LWA | 1 |
EU
|
|
| 14 | 91N6-17161 | DECAL-SERVICE INSTRUCTION | 1 | ||
| 15 | 91N6-17411 | LIFTING CHART(3.8CWT) | 1 |
5.68BM+2.92AM
|
|
| 15 | 91N6-17420 | LIFTING CHART | 1 |
5.68BM+2.4AM
|
|
| 15 | 91N6-17430 | LIFTING CHART | 1 |
5.68BM+2.0AM
|
|
| 15 | 91N6-17440 | LIFTING CHART-L/REACH | 1 |
8.20BM+6.3AM
|
|
| 15 | 91N6-17450 | LIFTING CHART | 1 |
5.68BM+3.9AM
|
|
| 15 | 91N6-17460 | LIFTING CHART | 1 |
5.20BM+2.0AM
|
|
| 2-1 | 91N6-02101 | BATTERY CORROSIVE | 1 | ||
| 2-2 | 91N6-02111 | BATTERY EXPLOSION | 1 | ||
| 21 | 91E1-26300 | Наклейка шаг протектора | 6 | ||
| 22 | 91EK-12010 | RIVET | 4 | ||
| 3-1 | 91N6-03101 | HYD OIL LEVEL | 1 | ||
| 3-2 | 91N6-03110 | HYD OIL LUBRICATION | 1 | ||
| 3-3 | 91N6-03120 | GREASE R/GEAR | 1 | ||
| 4-1 | 91N6-04121 | KEEP CLEAR-DISTANCE | 2 | ||
| 4-2 | 91N6-04131 | LIFTING EYE | 2 | ||
| 4-3 | 91E1-14110 | NAME PLATE | 1 |
STD
|
|
| 4-3 | 91E1-14130 | NAME PLATE | 1 |
EU
|
|
| 5-1 | 91E1-29080 | SLINGING IDEOGRAM | 4 | ||
| 7-1 | 91N6-07101 | SIDE KEEP CLEAR | 2 | ||
| 7-10 | 91N6-07200 | CONTROL IDEOGRAM | 1 | ||
| 7-10 | 91N6-07201 | Наклейка CNTL идеограмма | 1 | ||
| 7-11 | 91N6-07211 | CONTROL IDEOGRAM-LH | 1 | ||
| 7-11 | 91N6-07212 | контроль иероглиф LH | 1 | ||
| 7-12 | 91N6-07221 | контроль иероглиф RH | 1 | ||
| 7-13 | 91N6-07230 | REF OPERATOR MANUAL | 1 | ||
| 7-14 | 91N6-07240 | MAX HEIGHT | 1 | ||
| 7-15 | 91N6-07251 | SAFETY FRONT WINDOW | 2 | ||
| 7-16 | 91N6-07261 | Наклейка альтернативный выход | 1 | ||
| 7-17 | 91N6-07271 | Фильтр кондиционера | 1 | ||
| 7-18 | 91N6-07301 | бардачок наклона | 1 | ||
| 7-19 | 91N6-07311 | предохранительный рычаг | 1 | ||
| 7-2 | 91N6-07111 | STAY FIX | 3 | ||
| 7-3 | 91N6-07120 | SHEARING | 1 | ||
| 7-4 | 91N6-07130 | NO STEP-E/G HOOD | 1 | ||
| 7-5 | 91N6-07140 | TRANSPORTING | 1 | ||
| 7-6 | 91E1-27110 | Наклейка л / выбросов ENG | 1 |
