STEERING VALVE(-#0015) экскаватора колесного Hyundai R210W9-MH
STEERING VALVE(-#0015) экскаватора колесного Hyundai R210W9-MH со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4310
Наименование:STEERING VALVE(-#0015)
Версия:2014. 7.31 REV.14G

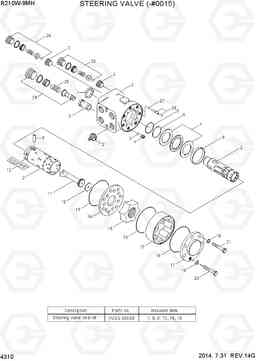

STEERING VALVE(-#0015) R210W9-MH
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT SUPPLIED PARTS | AR | ||
| * | 81E4-0006 | Клапан в сборе | 1 | ||
| 10 | @ | SPACER | 1 | ||
| 11 | @ | SHAFT-CARDAN | 1 | ||
| 12 | @ | SPRING SET | 1 | ||
| 14 | @ | PLATE-DISTRIBUTOR | 1 | ||
| 15 | @ | SET-GEAR WHEEL | 1 | ||
| 17 | @ | COVER-END | 1 | ||
| 20 | @ | SCREW-PIN | 1 | ||
| 21 | @ | SCREW | 6 | ||
| 24 | @ | RELIEF VALVE ASSY | 1 | ||
| 25 | @ | SPRING-WIRE | 1 | ||
| 26 | @ | VALVE-SHOCK | 2 | ||
| 27 | @ | BALL | 2 | ||
| 29 | @ | BUSHING-W/PIN | 2 | ||
| 3 | @ | BALL | 1 | ||
| 4 | @ | BUSHING-THREAD | 1 | ||
| 7 | @ | BEARING ASSY | 1 | ||
| 8 | @ | RING | 1 | ||
| 9 | @ | PIN-CROSS | 1 | ||
| K | YUBS-00068 | Ремкомплект / комплект уплотнений (ремкомплект) | 1 |
SEE ILLUST
|
|
| K1 | @ | SEAL-DUST | 1 | ||
| K13 | @ | O-RING | 1 | ||
| K16 | @ | O-RING | 2 | ||
| K18 | @ | WASHER | 7 | ||
| K5 | @ | O-RING/ROTO GLYD | 1 | ||
| K6 | @ | RING-KING | 1 | ||
| N2 | @ | HSG,SPOOL,SLEEVE | 1 |
