SEAT (AIR SUSPENSION, HEATED) экскаватора гусеничного Hyundai R235LCR-9
SEAT (AIR SUSPENSION, HEATED) экскаватора гусеничного Hyundai R235LCR-9 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6155
Наименование:SEAT (AIR SUSPENSION, HEATED)
Версия:

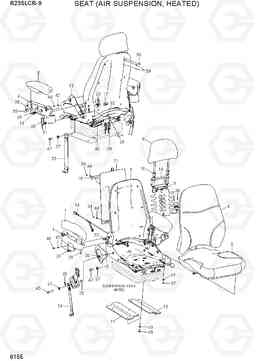

SEAT (AIR SUSPENSION, HEATED) R235LCR-9
Поз. | Код | Наименование | Кол | Прим. | |
---|---|---|---|---|---|
* | 75Q4-24200 | SEAT ASSY | 1 | ||
1 | SA34873 | ADAPTER ASSY | 1 | ||
10 | SA20872 | KIT-GUIDE | 1 | ||
11 | S34377 | PLATE-RISER | 1 | ||
12 | S32809 | BUCKLE-BELT | 1 | ||
13 | S32541 | PLATE-RISER | 1 | ||
14 | S30686 | HARNESS-WIRE | 1 | ||
15 | S30541 | Кронштейн | 1 | ||
16 | S29484 | Deleted... | 1 | ||
17 | S25244 | DECAL | 1 | ||
18 | S25234 | Кронштейн | 1 | ||
19 | S23931 | Deleted... | 1 | ||
2 | SA34872 | ADAPTER ASSY | 1 | ||
20 | S21414 | LABEL | 1 | ||
21 | S20211 | Deleted... | 1 | ||
22 | S16263 | BELT-TETHER | 1 | ||
23 | S1532 | DECAL-SERIAL NUMBER | 1 | ||
24 | S15096 | BELT-TETHER | 1 | ||
25 | S14149 | Вставка | 1 | ||
26 | S14004 | Deleted... | 1 | ||
27 | S12811 | Шайба | 3 | ||
28 | 79S0109 | TIE-CABLE | 1 | ||
29 | 79S0101 | TIE-CABLE | 5 | ||
3 | SA34772 | CUSHION-SEAT | 1 | ||
30 | 52S0127 | Deleted... | 1 | ||
31 | 52S0121 | Deleted... | 2 | ||
32 | 41S0137 | BOLT-CARRIAGE | 2 | ||
34 | 37S0103 | RIVET | 10 | ||
35 | 28S0102 | Deleted... | 1 | ||
36 | 16S0170 | Болт | 6 | ||
37 | 16S0159 | Deleted... | 2 | ||
38 | 16S0134 | Болт | 2 | ||
39 | 12S0125 | Deleted... | 2 | ||
4 | SA33807 | CUSHION-BACK | 1 | ||
40 | 10S0124 | CLIP-TINNERMAN | 1 | ||
41 | 06S0201 | Плоская шайба | 2 | ||
42 | 06S0176 | Плоская шайба | 2 | ||
43 | 06S0133 | Deleted... | 4 | ||
44 | 06S0113 | Плоская шайба | 4 | ||
45 | 05S0275 | Болт с шестигранной головкой (под шестигранник) | 1 | ||
46 | 05S0240 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
47 | 05S0236 | Deleted... | 2 | ||
48 | 05S0199 | Болт с шестигранной головкой (под шестигранник) | 4 | ||
5 | SA33197 | UNCOVERED ASSY | 1 | ||
6 | SA29024 | HEADREST ASSY | 1 | ||
7 | SA26705 | ARMREST PAD-RH | 1 | ||
8 | SA26704 | Deleted... | 1 | ||
9 | SA26585 | KIT-LUMBAR | 1 |
