Поворотный редуктор экскаватора гусеничного Hyundai R25Z-9A
Поворотный редуктор экскаватора гусеничного Hyundai R25Z-9A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4210
Наименование:SWING REDUCTION GEAR
Версия:

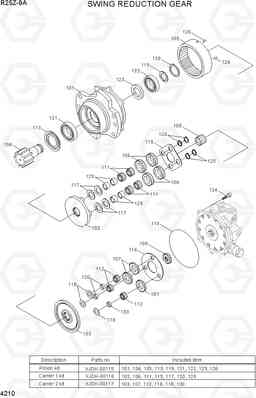

SWING REDUCTION GEAR R25Z-9A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT SUPPLIED PARTS | AR | ||
| * | @ | SWING UNIT | 1 |
SEE 4200
|
|
| *-2 | XJDK-00101 | Редуктор | 1 | ||
| 108 | XJDK-00102 | GEAR S1 | 1 | ||
| 109 | XJDK-00103 | GEAR S2 | 1 | ||
| 114 | XJDK-00104 | O RING | 1 | ||
| 120 | XJDK-00105 | Кольцо стопорное | 4 | ||
| 124 | XJDK-00106 | Болт | 6 | ||
| 128 | XJDK-00107 | Кольцо | 1 | ||
| S1 | XJDK-00115 | PINION KIT | 1 |
SEE ILLUST
|
|
| S101 | @ | BODY | 1 | ||
| S102 | @ | CARRIER-1 | 1 | ||
| S103 | @ | CARRIER 2 | 1 | ||
| S104 | @ | SHAFT-PINION | 1 | ||
| S105 | @ | GEAR A-INTERNAL | 1 | ||
| S106 | @ | GEAR B1 | 4 | ||
| S107 | @ | GEAR B2 | 3 | ||
| S111 | @ | NEEDLE | 92 | ||
| S112 | @ | NEEDLE | 72 | ||
| S113 | @ | RING-SEAL | 1 | ||
| S115 | @ | PLATE 1-THRUST | 1 | ||
| S116 | @ | PLATE 2-THRUST | 1 | ||
| S117 | @ | WASHER 1-THRUST | 4 | ||
| S118 | @ | WASHER 2-THRUST | 3 | ||
| S119 | @ | COLLAR-PRELOAD | 2 | ||
| S121 | @ | BEARING | 1 | ||
| S122 | @ | BEARING | 1 | ||
| S123 | @ | SEAL-OIL | 1 | ||
| S126 | @ | PIN | 2 | ||
| S129 | @ | RING-1 | 4 | ||
| S130 | @ | RING 2 | 3 | ||
| S2 | XJDK-00116 | CARRIER 1 KIT | 1 |
SEE ILLUST
|
|
| S3 | XJDK-00117 | CARRIER 2 KIT | 1 |
SEE ILLUST
|
