FUEL PLUMBING экскаватора гусеничного Hyundai R260LC-9S
FUEL PLUMBING экскаватора гусеничного Hyundai R260LC-9S со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:A250
Наименование:FUEL PLUMBING
Версия:

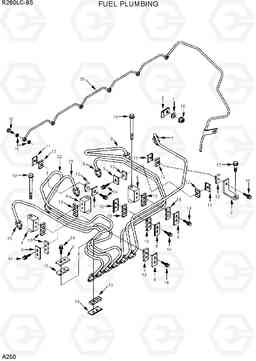

FUEL PLUMBING R260LC-9S
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | XKDE-01555 | Плоская шайба | 1 |
FT97094-03
|
|
| 10 | XKDE-00881 | BRACE-TUBE | 1 | ||
| 10 | XKDE-00881 | BRACE-TUBE | 1 | ||
| 11 | XKDE-00882 | BRACE-TUBE | 2 | ||
| 11 | XKDE-00882 | BRACE-TUBE | 1 | ||
| 12 | XKDE-00747 | ISOLATOR-VIBRATION | 4 | ||
| 12 | XKDE-00747 | ISOLATOR-VIBRATION | 2 | ||
| 13 | XKDE-00740 | ISOLATOR-VIBRATION | 4 | ||
| 13 | XKDE-00740 | ISOLATOR-VIBRATION | 6 | ||
| 14 | XKDE-00325 | SCREW-CAPTIVE W/CAP | 6 | ||
| 14 | XKDE-00325 | SCREW-CAPTIVE W/CAP | 7 | ||
| 15 | XKDE-01559 | Шайба | 12 | ||
| 16 | XKDE-00321 | Гайка | 1 | ||
| 17 | XKDE-00298 | Винт шестигранник | 1 | ||
| 18 | XKDE-01362 | SCREW-BANJO CONNECTOR | 6 | ||
| 19 | XKDE-01391 | Винт шестигранник | 3 | ||
| 2 | XKDE-00927 | Скоба (хомут) | 1 | ||
| 20 | XKDE-01503 | TUBE-FUEL DRAIN | 1 | ||
| 21 | XKDE-01519 | TUBE-FUEL SUPPLY | 1 |
#1 CYL
|
|
| 22 | XKDE-01520 | TUBE-FUEL SUPPLY | 1 |
#2 CYL
|
|
| 23 | XKDE-01521 | TUBE-FUEL SUPPLY | 1 |
#3 CYL
|
|
| 3 | XKDE-00878 | BRACE-TUBE | 1 | ||
| 4 | XKDE-00869 | Тормозной клапан | 1 | ||
| 4 | XKDE-00869 | Тормозной клапан | 2 | ||
| 5 | XKDE-01515 | TUBE-FUEL SUPPLY | 1 |
#4 CYL
|
|
| 6 | XKDE-01516 | TUBE-FUEL SUPPLY | 1 |
#5 CYL
|
|
| 7 | XKDE-01517 | TUBE-FUEL SUPPLY | 1 |
#6 CYL
|
|
| 8 | XKDE-00879 | BRACE-TUBE | 2 | ||
| 8 | XKDE-00879 | BRACE-TUBE | 3 | ||
| 9 | XKDE-00880 | BRACE-TUBE | 1 | ||
| 9 | XKDE-00880 | BRACE-TUBE | 1 | ||
| N | @ | NOT SUPPLIED PARTS | AR | ||
| N*-1 | XKDE-01514 | TUBE-FUEL SUPPLY | 1 | ||
| N*-2 | XKDE-01518 | TUBE-FUEL SUPPLY | 1 |
