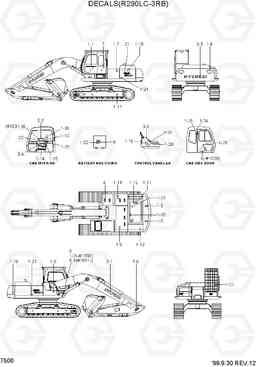

DECALS(R290LC-3RB) лесохозяйственной машины гусеничной Hyundai R290LC-3_LL/RB
DECALS(R290LC-3RB) лесохозяйственной машины гусеничной Hyundai R290LC-3_LL/RB со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7500
Наименование:DECALS(R290LC-3RB)
Версия:'99.9.30 REV.12
DECALS(R290LC-3RB) R290LC-3_LL/RB
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 91E6-00203 | DECAL KIT(A) | 1 |
ENGLISH
|
|
| 1 | 91E6-00204 | DECAL KIT(A) | 1 | ||
| 1-1 | 91E1-21210 | TRADE MARK-CAB | 1 | ||
| 1-1 | 91E1-21210 | TRADE MARK-CAB | 1 | ||
| 1-10 | 91E1-26020 | AIR CLEANER | 1 | ||
| 1-11 | 91E1-26030 | Крышка радиатора | 1 | ||
| 1-12 | 91E1-26040 | ANTIFREEZE | 1 | ||
| 1-13 | 91E1-28020 | AIR VENT | 1 | ||
| 1-14 | 91E1-28051 | SAFETY INSTRUCTION | 1 | ||
| 1-15 | 91E1-28081 | MAX HEIGHT REACH | 1 | ||
| 1-16 | 91E1-29060 | SAFETY IDEOGRAM | 1 | ||
| 1-17 | 91E1-29080 | SLINGING IDEOGRAM | 1 | ||
| 1-17 | 91E1-29080 | SLINGING IDEOGRAM | 4 | ||
| 1-18 | 91E1-24051 | SIDE KEEP CLEAR | 4 | ||
| 1-19 | 91E1-25511 | FUELING | 2 | ||
| 1-2 | 91E1-14110 | NAME PLATE | 1 | ||
| 1-2 | 91E1-14110 | NAME PLATE | 1 | ||
| 1-20 | 91E1-26051 | DECAL-EXHAUST | 1 | ||
| 1-21 | 91E1-26060 | STAY-FIX | 1 | ||
| 1-22 | 91E1-26070 | BATTERY-DECAL | 2 | ||
| 1-22 | 91E1-26070 | BATTERY-DECAL | 1 | ||
| 1-23 | 91E1-26090 | MARK-HOOD | 1 | ||
| 1-24 | 91E1-28112 | SAFETY LEVER | 1 | ||
| 1-25 | 91E1-28220 | LOGO-FIRE | 1 | ||
| 1-26 | 91E1-28230 | LOGO-HAMMER | 1 | ||
| 1-27 | 91E1-28280 | SAFE-FRONT WINDOW | 1 | ||
| 1-28 | 91E1-28310 | LATCH-DECAL | 1 | ||
| 1-28 | 91E1-28310 | LATCH-DECAL | 2 | ||
| 1-29 | 91E1-28290 | SERVICE SOCKET | 1 | ||
| 1-3 | 91E1-24021 | TRANSPORTING | 1 | ||
| 1-30 | 91E1-28031 | INTERFERENCE | 1 | ||
| 1-4 | 91E1-24042 | KEEP CLEAR | 2 | ||
| 1-5 | 91E1-24520 | LIFTING EYE | 2 | ||
| 1-6 | 91E1-24610 | SAFETY TRAVEL | 2 | ||
| 1-6 | 91E1-24610 | SAFETY TRAVEL | 2 | ||
| 1-7 | 91E1-25012 | HYD OIL LEVEL | 1 | ||
| 1-8 | 91E1-25020 | HYD OIL LUB | 1 | ||
| 1-9 | 91E1-26010 | ELECTROLYTE | 1 | ||
| 2 | 91EM-00220 | DECAL KIT(A) | 1 |
NON ENGLISH
|
|
| 21 | 91E9-22030 | MODEL NAME | 2 | ||
| 22 | 91FR-11200 | LIFT CHART | 1 | ||
| 3 | 91E9-00251 | DECAL KIT-B | 1 | ||
| 3-1 | 91E1-21110 | TRADE MARK-BOOM & CWT | 2 | ||
| 3-2 | 91E6-29021 | CONTROL IDEOGRAM | 1 | ||
| 3-3 | 91E6-29041 | CONTROL IDEOGRAM-LH | 1 | ||
| 3-4 | 91E1-29052 | CONTROL IDEOGRAM-RH | 1 | ||
| 3-5 | 91E1-21120 | TRADE MARK-CWT | 1 | ||
| 4 | 91E1-26300 | Наклейка шаг протектора | 7 | ||
| 5 | 91EK-12010 | RIVET | 4 | ||
| 6 | 91FR-00220 | SERVICE INSTRUCTION | 1 | ||
| 6 | 91FR-00221 | SERVICE INSTRUCTION | 1 | ||
| 7 | 91E1-27110 | Наклейка л / выбросов ENG | 1 | ||
| 8 | 91E1-14110 | NAME PLATE | 1 |
EUROPE
|
|
| 9 | 91E1-14130 | NAME PLATE | 1 |
