DECALS экскаватора гусеничного Hyundai R320LC
DECALS экскаватора гусеничного Hyundai R320LC со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7020
Наименование:DECALS
Версия:

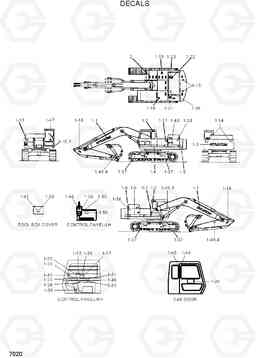

DECALS R320LC
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 91E5-04010 | DECAL ASSY | 1 |
LC-TYPE
|
|
| 1 | 91E5-04011 | DECAL ASSY | 1 |
LC-TYPE
|
|
| 1 | 91E5-03010 | DECAL ASSY | 1 |
NLC-TYPE
|
|
| 1 | 91E5-03011 | DECAL ASSY | 1 |
NLC-TYPE
|
|
| 1-1 | 91E1-1224 | TRADE MARK | 2 | ||
| 1-10 | 91E1-1071 | NAME PLATE | 1 | ||
| 1-10 | 91E1-14110 | DECAL-PIN PLATE | 1 | ||
| 1-13 | 91E1-24030 | TRANSPORTING | 1 | ||
| 1-13 | 91E1-24020 | TRANSPORTING | 1 | ||
| 1-14 | 91E1-24510 | KEEP CLEAR | 1 | ||
| 1-14 | 91E1-24510 | KEEP CLEAR | 2 | ||
| 1-15 | 91E1-24520 | LIFTING EYE | 1 | ||
| 1-16 | 91E1-24610 | DECAL-SAFETY TRAVEL | 1 | ||
| 1-17 | 91E1-25010 | HYD OIL LEVEL | 1 | ||
| 1-17 | 91E1-25011 | HYD OIL LEVEL | 1 | ||
| 1-17 | 91E1-25012 | HYD OIL LEVEL | 1 | ||
| 1-18 | 91E1-25020 | HYD OIL LUB | 1 | ||
| 1-19 | 91E1-25530 | FUELING | 1 | ||
| 1-19 | 91E1-25511 | FUELING | 1 | ||
| 1-2 | 91E1-1226 | TRADE MARK-CAB | 2 | ||
| 1-20 | 91E1-26010 | ELECTROLYTE | 1 | ||
| 1-21 | 91E1-26020 | AIR CLEANER | 1 | ||
| 1-22 | 91E1-26030 | Крышка радиатора | 1 | ||
| 1-23 | 91E1-26040 | ANTIFREEZE | 1 | ||
| 1-24 | 91E5-27010 | SERVICE INSTRUCTION | 1 | ||
| 1-24 | 91E5-27011 | SERVICE INSTRUCTION | 1 | ||
| 1-25 | 91E5-28910 | LIFTING CHART | 1 |
LC-TYPE
|
|
| 1-25 | 91E5-28911 | LIFTING CHART | 1 |
LC-TYPE
|
|
| 1-25 | 91E5-28010 | LIFTING CHART | 1 |
NLC-TYPE
|
|
| 1-26 | 91E1-28020 | DECAL-AIR VENT | 1 | ||
| 1-27 | 91E1-28030 | INTERFERENCE | 1 | ||
| 1-27 | 91E1-28031 | INTERFERENCE | 1 | ||
| 1-28 | 91E1-28050 | SAFETY INSTRUCTION | 1 | ||
| 1-28 | 91E1-28051 | SAFETY INSTRUCTION | 1 | ||
| 1-29 | 91E1-28060 | ENGINE START | 1 | ||
| 1-3 | 91E1-1225 | TRADE MARK-CWT | 1 | ||
| 1-30 | 91E1-28070 | SWING LOCK | 1 | ||
| 1-31 | 91E1-28080 | MAX HEIGHT REACH | 1 | ||
| 1-31 | 91E1-28081 | MAX HEIGHT REACH | 1 | ||
| 1-32 | 91E1-29020 | CONTROL IDEOGRAM | 1 | ||
| 1-32 | 91E1-29012 | CONTROL IDEOGRAM | 1 | ||
| 1-33 | 91E1-29040 | CONTROL IDEOGRAM-LH | 1 | ||
| 1-33 | 91E1-29032 | CONTROL IDEOGRAM-LH | 1 | ||
| 1-34 | 91E1-29050 | CONTROL IDEOGRAM | 1 | ||
| 1-34 | 91E1-29051 | CONTROL IDEOGRAM-RH | 1 | ||
| 1-35 | 91E1-29060 | SAFETY IDEOGRAM | 1 | ||
| 1-36 | 91E1-29070 | SWING IDEOGRAM | 4 | ||
| 1-36 | 91E1-29071 | SWING IDEOGRAM | 4 | ||
| 1-37 | 91E1-29080 | SLINGING IDEOGRAM | 1 | ||
| 1-38 | 91E1-24051 | SIDE KEEP CLEAR | 2 | ||
| 1-39 | 91E1-26051 | DECAL-EXHAUST | 1 | ||
| 1-4 | 91L1-1063 | SIDE CHARACTER-LH(A) | 1 | ||
| 1-40 | 91E1-26060 | STAY-FIX | 2 | ||
| 1-41 | 91E1-26070 | BATTERY-DECAL | 1 | ||
| 1-42 | 91E1-26090 | MARK-HOOD | 1 | ||
| 1-43 | 91E1-28190 | DOOR LOCK | 1 | ||
| 1-44 | 91E1-28220 | LOGO-FIRE | 1 | ||
| 1-45 | 91E1-28230 | LOGO-HAMMER | 1 | ||
| 1-46 | 91E1-28270 | SAFETY LEVER | 1 | ||
| 1-46 | 91E1-28112 | SAFETY LEVER | 1 | ||
| 1-47 | 91E1-28280 | SAFE-FRONT WINDOW | 1 | ||
| 1-48 | 91E1-28290 | SERVICE SOCKET | 1 | ||
| 1-49 | 91E1-14120 | NAME PLATE-ATT | 3 | ||
| 1-5 | 91L1-1074 | SIDE CHARACTER(B)-LH | 1 | ||
| 1-50 | 91E1-28310 | DECAL-LATCH | 1 | ||
| 1-6 | 91E8-2010 | SIDE CHARACTER(C)-LH | 1 |
LC-TYPE
|
|
| 1-6 | 91E5-22010 | SIDE CHARACTER(C)-LH | 1 |
NLC-TYPE
|
|
| 1-7 | 91L1-1064 | SIDE CHARACTER-RH(A) | 1 | ||
| 1-8 | 91L1-1084 | SIDE CHARACTER(B)-RH | 1 | ||
| 1-9 | 91E8-2011 | SIDE CHARACTER(C)-RH | 1 |
LC-TYPE
|
|
| 1-9 | 91E5-22510 | SIDE CHARACTER(C)-RH | 1 |
NLC-TYPE
|
|
| 2 | E191-1171 | STEP TREAD | 10 | ||
| 2 | 91E1-26300 | Наклейка шаг протектора | 10 | ||
| 3 | E171-1246 | RIVET | 4 | ||
| 4 | 91E1-50010 | SCREW-DRIVER | 6 |
