FUEL PLUMBING экскаватора гусеничного Hyundai R330LC-9S
FUEL PLUMBING экскаватора гусеничного Hyundai R330LC-9S со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:A240
Наименование:FUEL PLUMBING
Версия:

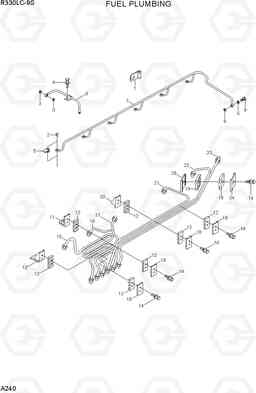

FUEL PLUMBING R330LC-9S
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT SUPPLIED PARTS | AR | ||
| 1 | XKDE-00652 | Скоба (хомут) | 1 |
FT97147
|
|
| 11 | XKDE-00739 | BRACE-TUBE | 1 | ||
| 11 | XKDE-00739 | BRACE-TUBE | 1 | ||
| 12 | XKDE-00740 | ISOLATOR-VIBRATION | 4 | ||
| 12 | XKDE-00740 | ISOLATOR-VIBRATION | 4 | ||
| 13 | XKDE-00741 | BRACE-TUBE | 1 | ||
| 14 | XKDE-00325 | SCREW-CAPTIVE W/CAP | 4 | ||
| 14 | XKDE-00325 | SCREW-CAPTIVE W/CAP | 5 | ||
| 15 | XKDE-00742 | TUBE-INJ FUEL SUPPLY | 1 | ||
| 16 | XKDE-00743 | TUBE-INJ FUEL SUPPLY | 1 | ||
| 17 | XKDE-00744 | TUBE-INJ FUEL SUPPLY | 1 | ||
| 19 | XKDE-00747 | ISOLATOR-VIBRATION | 2 | ||
| 2 | XKDE-00653 | SCREW-BANJO CONNECTOR | 6 | ||
| 21 | XKDE-00748 | TUBE-INJ FUEL SUPPLY | 1 | ||
| 22 | XKDE-00749 | TUBE-INJ FUEL SUPPLY | 1 | ||
| 23 | XKDE-00750 | TUBE-INJ FUEL SUPPLY | 1 | ||
| 24 | XKDE-00751 | BRACE-TUBE | 1 | ||
| 25 | XKDE-00752 | BRACE-TUBE | 1 | ||
| 3 | XKDE-00603 | Шайба | 2 | ||
| 4 | XKDE-00448 | Винт шестигранник | 1 | ||
| 5 | XKDE-00658 | SEAL-BANJO CONNECTOR | 6 | ||
| 6 | XKDE-00654 | Шайба | 2 | ||
| 7 | XKDE-00655 | MANIFOLD-FUEL | 1 | ||
| 8 | XKDE-00656 | TUBE-FUEL DRAIN | 1 | ||
| 9 | XKDE-00657 | Клапан обратный | 1 | ||
| N* | XKDE-00738 | TUBE-INJ FUEL SUPPLY | 1 |
PP98268
|
|
| N* | XKDE-00746 | TUBE-INJ FUEL SUPPLY | 1 | ||
| N18 | XKDE-00745 | BRACE-TUBE | 2 | ||
| N18 | XKDE-00745 | BRACE-TUBE | 2 |
