REMOTE CONTROL LEVER экскаватора гусеничного Hyundai R420/R450LC
REMOTE CONTROL LEVER экскаватора гусеничного Hyundai R420/R450LC со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2090
Наименование:REMOTE CONTROL LEVER
Версия:

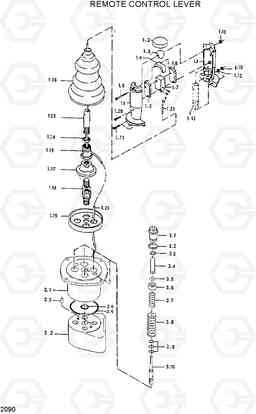

REMOTE CONTROL LEVER R420/R450LC
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT INDIVIDUALLY SUPPLIED | AR | ||
| * | 31E7-2015 | RCV LEVER | 1 |
309-326-00
|
|
| 1.14 | 111-366-09 | Гайка | 1 | ||
| 1.15 | 182-888-02 | Гайка | 1 | ||
| 1.16 | 188-733-00 | BELLOWS | 1 | ||
| 1.17 | 184-060-01 | PLATE-SWITCH | 1 | ||
| 1.18 | 194-696-00 | CARDAN | 1 | ||
| 1.19 | 188-767-01 | PLATE-RETAINING | 1 | ||
| 1.21 | 189-521-00 | CABLE-ELE | 1 | ||
| 1.7 | 110-418-09 | CONTACT-ELEC | 1 | ||
| 2.1 | 187-877-01 | PORT PLATE-UPPER | 1 | ||
| 3.4 | 187-524-01 | PLUNGER-HOLLOW | 4 | ||
| 3.5 | 180-719-01 | DISC-LOCKING | 4 | ||
| 3.6 | 184-000-02 | стопорная пружина | 4 | ||
| 3.7 | 190-038-00 | Пружина | 4 | ||
| 3.8 | 191-133-00 | с пружинным возвратом | 4 | ||
| 3.9 | 181-214-00 | Прокладка | 12 | ||
| K | 91E7-2708 | Ремкомплект / комплект уплотнений (2.3-2.7D) | 1 | ||
| N1.1 | @ | LEVER-HALF | 2 | ||
| N1.10 | @ | NUT | 3 | ||
| N1.11 | @ | SCREW | 2 | ||
| N1.12 | @ | WASHER | 2 | ||
| N1.13 | @ | LEVER-HOLLOW | 1 | ||
| N1.2 | @ | CAP-INSULATION | 1 | ||
| N1.28 | @ | SCREW | 1 | ||
| N1.3 | @ | PUSHER | 1 | ||
| N1.4 | @ | ARM-ROCKER | 1 | ||
| N1.5 | @ | SPACER | 1 | ||
| N1.6 | @ | SPACER | 1 | ||
| N1.9 | @ | SCREW | 1 | ||
| N2.2 | @ | PORT PLATE-LOWER | 1 | ||
| N2.3 | @ | PIN | 2 | ||
| N2.4 | @ | O-RING | 1 | ||
| N2.5 | @ | O-RING | 1 | ||
| N3.1 | @ | GUIDE-PLUNGER | 4 | ||
| N3.10 | @ | PISTON | 4 | ||
| N3.2 | @ | SEAL | 4 | ||
| N3.3 | @ | SEAL | 4 |
