REMOTE CONTROL LEVER экскаватора гусеничного Hyundai R450LC-3(-#1000)
REMOTE CONTROL LEVER экскаватора гусеничного Hyundai R450LC-3(-#1000) со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2110
Наименование:REMOTE CONTROL LEVER
Версия:2001. 2.17 REV.99

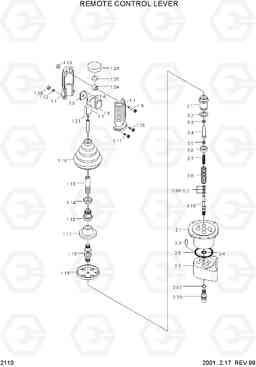

REMOTE CONTROL LEVER R450LC-3(-#1000)
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 31E7-2015 | RCV LEVER | 2 | ||
| 1 | 30932600 | OPERATING COMPLATE | 1 | ||
| 1.14 | 11136609 | Гайка | 1 | ||
| 1.15 | 18288802 | Гайка | 1 | ||
| 1.16 | 18873300 | BELLOWS | 1 | ||
| 1.17 | 18406001 | PLATE-SWITCH | 1 | ||
| 1.19 | 18876701 | PLATE-RETURNING | 1 | ||
| 1.21 | 18952100 | CABLE 2 | 1 | ||
| 2.1 | 18787701 | UPPER PART | 1 | ||
| 3.5 | 18071901 | DISC-LOCKING | 4 | ||
| 3.6 | 18400002 | SPRING-RETAINER | 4 | ||
| 3.9A | 18121300 | Прокладка | 4 | ||
| 3.9B | 18121400 | Прокладка | 4 | ||
| 3.9C | 18224600 | Прокладка | 4 | ||
| K | 91E7-2708 | Ремкомплект / комплект уплотнений (2.3-2.7D) | 1 | ||
| K | 08200218 | SEAL KIT-A(2.3,2.4, | 1 | ||
| K | 21305900 | PLUNGER ASSY | 1 | ||
| K | 21321600 | с пружинным возвратом | 1 | ||
| K | 21333000 | PLUNGER KIT | 1 |
3.1-3.4
|
|
| K1.18 | 19469600 | CARDAN | 1 | ||
| K2.3 | @ | PIN | 1 |
KIT-A TYPE
|
|
| K2.4 | @ | O-RING | 1 |
KIT-A TYPE
|
|
| K2.5 | @ | O-RING | 1 |
KIT-A TYPE
|
|
| K2.6C | @ | O-RING | 1 |
KIT-A TYPE
|
|
| K2.7D | 19185300 | Болт | 1 |
KIT-A TYPE
|
|
| K3.2 | @ | SEAL | 4 |
KIT-B TYPE
|
|
| K3.3 | @ | SEAL | 4 |
KIT-B TYPE
|
|
| N | @ | NOT INDIVIDUALLY SUPPLIED | 1 | ||
| N1.1 | @ | LEVER-HALF | 2 | ||
| N1.10 | @ | NUT | 3 | ||
| N1.11 | @ | SCREW | 2 | ||
| N1.12 | @ | WASHER | 2 | ||
| N1.13 | @ | LEVER-HOLLOW | 1 | ||
| N1.20 | @ | PLATE-BLANKING | 1 | ||
| N1.28 | @ | SCREW | 2 | ||
| N1.2A | @ | CAP-INSULATION | 1 | ||
| N1.3A | @ | PUSHER | 1 | ||
| N1.4 | @ | ARM-ROCKER | 1 | ||
| N1.5 | @ | SPACER | 1 | ||
| N1.6 | @ | SPACER | 1 | ||
| N1.7 | @ | CONTACT | 1 | ||
| N1.8 | @ | SCREW | 1 | ||
| N2.2 | @ | LOWER PART | 1 | ||
| N3.1 | @ | PLUNGER-GUIDE | 4 |
KIT-B TYPE
|
|
| N3.10 | @ | PISTON | 4 | ||
| N3.7 | 19003800 | Пружина | 4 | ||
| NK3.4 | 18752300 | PLUNGER-FULL | 4 |
KIT-B TYPE
|
|
| NK3.8 | 19113300 | Пружина | 4 |
KIT-C TYPE
|
